Model Number:

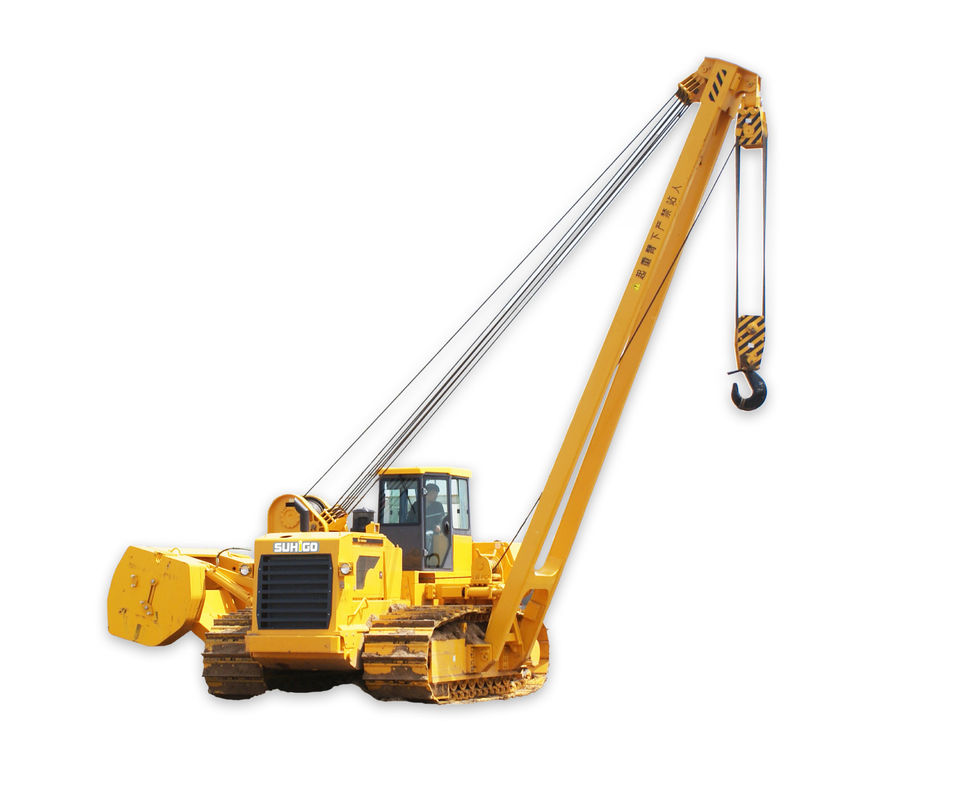

HGY70
Contact Us
| Project Name | Main Parameters | ||
| Device model | HGY70 | ||
| Maximum lifting capacity t | 70 | ||
| Rated lifting capacity t | 59.5 | ||
| Machine mass t | 49 | ||
| Host transportation dimensions (length × width × height) mm | 5660×3400×3540(mm) | ||
| Host transport mass t | 37.5 | ||
| Average ground specific pressure kPa | 87.3 | ||
| Minimum ground clearance mm | 550 | ||
| Maximum gradeability ° | 25 | ||
| Applicable environment | Meet the ambient temperature of -45℃～+70℃ and the environment below 3600m above sea level | ||
| Engine | model |
Cuminns NTA855-C360 Cummins QSNT-C345 |
|
| Rated power kW | 257 | ||
| Rated speed rpm | 2000 | ||
| Walk System | chassis | Chassis for pipelayers | |
| Operation method | joystick | ||
| Speed | Forward km/h | 3.6/6.6/11.5 | |
| Backward km/h | 4.4/7.8/13.5 | ||
| Track ground length mm | 3620 | ||
| Track center distance mm | 2380 | ||
| Track shoe width mm | 760 | ||
| Number of rollers | 9×2 | ||
|
lifting system |
luffing form | Wire Rope Luffing | |
| Operation method | Hydraulic control handle | ||
| Boom | Arm length mm | 8600/9600(optional) | |
| Maximum Lifting Height mm | 7050/8030 | ||
| Boom Luffing Angle ° | 0～86 | ||
| Hook speed (8 times) m/min | 0～7.0 | ||
| Amplitude change time (5 times) s | 32 | ||
| Executive standard | ISO8813 | ||
HGY70 Pipelayer Shipping Schedule
| Component Weight and Dimensions | |||||||
| S/N | Names | Weight(t) | Size(mm) | Volume (m3) | Qty | Remark | |
| 1 | the host | 36 | 5630×3399×3540 | 60.6 | 1 set | install cab | |
| 2 | left bracket | 1 | 2000×1211×2104 | 5.1 | 1 item | Install the guide pulley | |
| 3 | Weight stack | 5 | 1489×547×1394 | 1.17 | 1 set | Each set contains 2 tablets | |
| 4 | Weight bracket | 2.74 | 2522×1120×1456 | 3.79 | 1 item | ||
| 5 | Boom components | 4.57 | 8870×1756×1250 | 19.46 | 1 set | ||
| Total | 49.3 | 90.12 | |||||
| Note: The boom assembly includes the following parts | |||||||
| 1 | Boom | 2.2 | 8870×1756×873 | 12 | 1 item | 8.6M Boom | |
| 2 | lower rocker arm | 0.9 | 1530×2035×490 | 1.53 | 1 item | ||
| 4 | pulley block | 1.17 | 1050×1000×1100 | 1.15 | 1 set | ||
About Suhigo
Technical Features of Suhigo Pipelayer:
1) The high-strength pipelayer special chassis adopts large gauge design to improve the stability of the whole machine, making it more suitable for the side lifting condition
2) Complete safety devices to ensure lifting safety
3) Smooth transmission system
4) The hoisting system adopts full hydraulic transmission, with stable transmission and good fretting performance
5) Simple and convenient operation; Strong adaptability
Why choose suhigo?
1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.
2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.
3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.
4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.
5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
