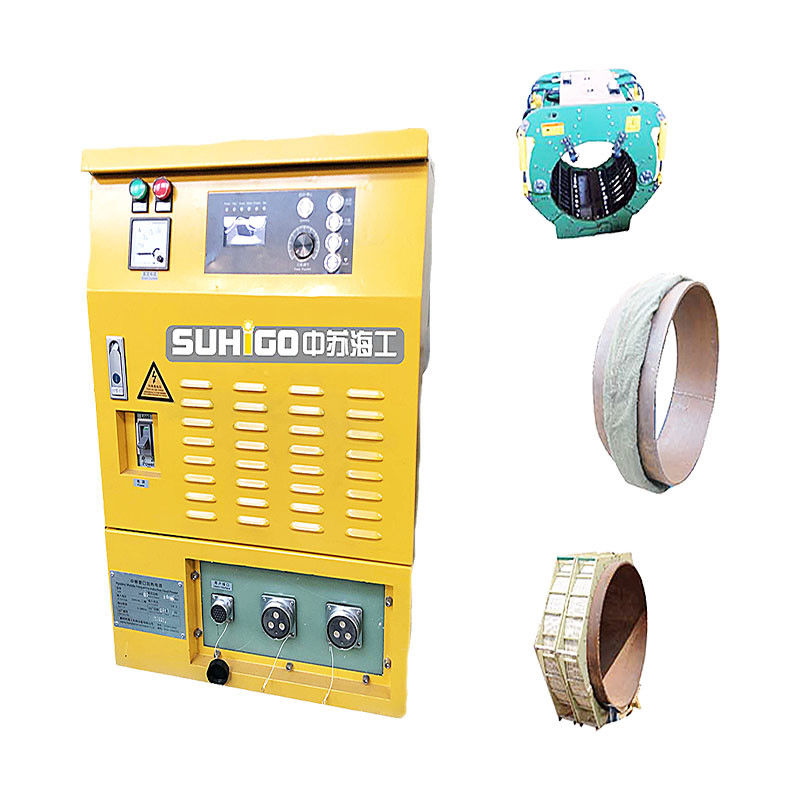

HGZJ series medium frequency heater power supply unit adopt IGBT or MOSFET inverter, and adopt DSP for full digital accurate control, so that the medium frequency heater has stronger working ability on site and can meet various process requirements.
The all air cooling structure reduces the system loss and completely eliminates the fault of the equipment from the water system. The perfect limit protection measures make the equipment maintain continuous and safe operation under various working conditions. The high reliability and high redundancy design make the equipment competent for 24-hour uninterrupted operation, and significantly improve the service life and safe operation ability of the equipment. The power supply has built-in harmonic treatment and power factor correction circuit measures, so the product has the remarkable characteristics of high reliability, high technology, high efficiency and energy saving.
Technical Features of Heating Clamp:
1) Induction current heating, uniform and fast heating, automatic control and simple operation
2) Clamp type medium frequency heating device adopts epoxy plate NC processing, with light weight and good insulation
3) The clamp heater adopts electric push rod design, with fast and stable opening and closing
4) Adopted top brand quick plug, high-quality components and cables, much reliable performance
5) Infrared thermometer or thermocouple can be selected for temperature measurement to realize closed-loop control and temperature acquisition;
6) The sealing plate is folded at the pipe orifice and high-quality hardware is adopted, with good sealing effect;
7) The medium frequency heating belt adopts high-quality cable and protective cloth, with high heating efficiency and reliability.
Technical Parameters of Medium-frequency Heater:
| Model | HGZJ Series Medium-frequency Heater |
| Power output | 0~80kw (0~800kw for option) |
| Power supply unit Dimension | 700 x 560 x 820mm |
| Power supply unit Weight | 200kg |
| Input Voltage/frequency | 380V/50hz |
| Allowable fluctuation range of input voltage | +20%~ +30% |
| Allowable fluctuation range of input frequency | +10%~-10% |
| Overload capacity | 1.2 times of rated value, 1min |
| Heating Effeciency | 95% |
| Power factor | 0.85 |
| Output power adjustable range | 0~100% |
| Output voltage/frequency | 600~1200V / 8000hz |
| Output frequency tracking | Automatic |
| Closed loop control accuracy | 1% |
| Protection Grade | IP65 |
| Cooling type | Forced air cooling |
| Working environment temperature | -50℃~+65℃ |
| Working environment humidity | ≤95% |
| Working Altitude | ≤3500m |
| Temperature measuring device | Infrared thermometer or thermocouple for option |
Why choose suhigo?
1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.
2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.
3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.
4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.
5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
