90T Pipeline Layer Side Arm Tracked Hydraulic Mountain Type

90T Pipeline Layer Side Arm Tracked Hydraulic Mountain Type

Pipeline Layer Side Arm

90T Pipeline Layer

Tracked Hydraulic pipelayer

Place of Origin:

China

Brand Name:

Suhigo

Certification:

CE

Model Number:

HGY90

Contact Us

Request A Quote
Product Details
Color:
Yellow And Red
Mobile Type:
Tracked Construction Machinery
Applicable Industries:
Farms, Retail, Construction Works , Energy & Mining
Size:
5630×3436×3540mm
Product Name:
HGY90 Pipe Layer
Applicable Temperature:
-45℃~+60℃
Certification:
ISO9001 OHSAS18001 CE
Transmission:
Planetary Gears, Forced Lubrication Power Shift
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

90 Ton Tracked Hydraulic Mountain Push Side Arm Pipe Hanger HGY90 Series Machinery




Itroduction

1.HGY series pipelayers provided by our company is a specialized pipeline construction equipment, mainly used in lifting, transportation and laying of pipeline .
2.The equipment adopts the special chassis of the pipelayer developed based on the bulldozer chassis,
3.Walking system adopts mechanical transmission and lever operation.
4.Working device adopts hydraulic transmission, operated handle , the transmission efficiency is high, and the work is stable. It is an international popular pipelayer configuration.



 Model

HGY90

Maximum lifting capacity

90t/ 200000lb

Rated lifting weight

77t/ 170000lb

Operating Weight

55t / 121000lb

Overall size(mm)

5630×3436×3540

Host transportation quality

38.9t

Average grounding ratio

86.6KPa

Minimum ground clearance

550mm

Maximum climbing ability

25°

Applicable temperature

-45~+60

Engine

Model

Cummins NT855-C360

Rated power

257KW

Rated speed

2000rpm



Feature

The lifting system adopts open hydraulic transmission with gear pump oil supply with strong anti pollution ability and self-priming ability, with stable transmission, stepless speed change, good micro motion performance and strong adaptability.
The lifting hook and boom luffing are controlled by hydraulic winch, and the counterweight retraction and release are controlled by hydraulic oil cylinder, which meets the requirements for efficiency and accuracy during pipe crane operation.
The boom is welded with HG60 high-strength steel, with light weight and high strength.

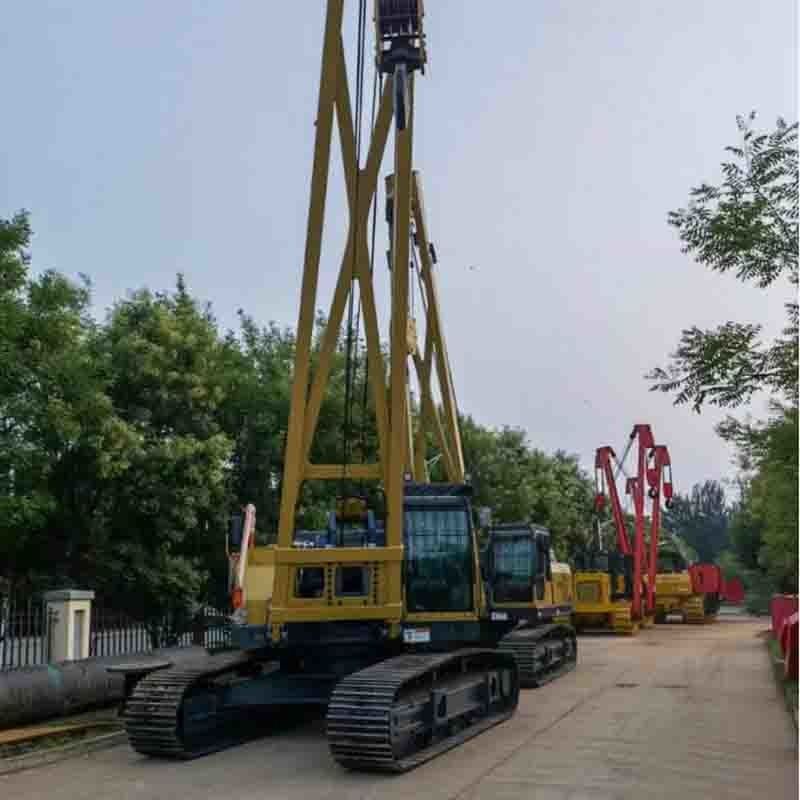

90T Pipeline Layer Side Arm Tracked Hydraulic Mountain Type 0







About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

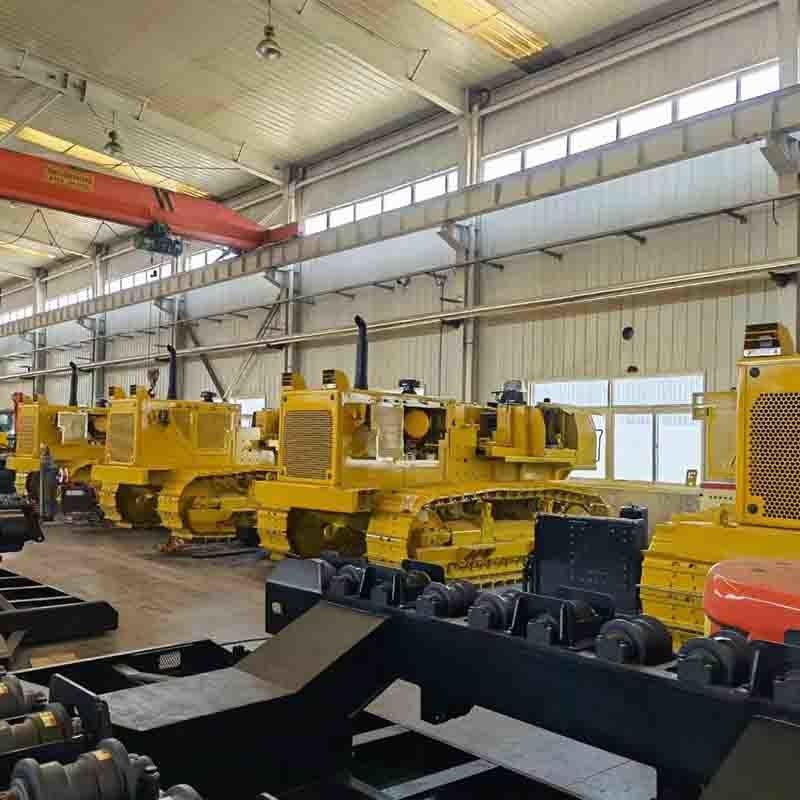

90T Pipeline Layer Side Arm Tracked Hydraulic Mountain Type 1

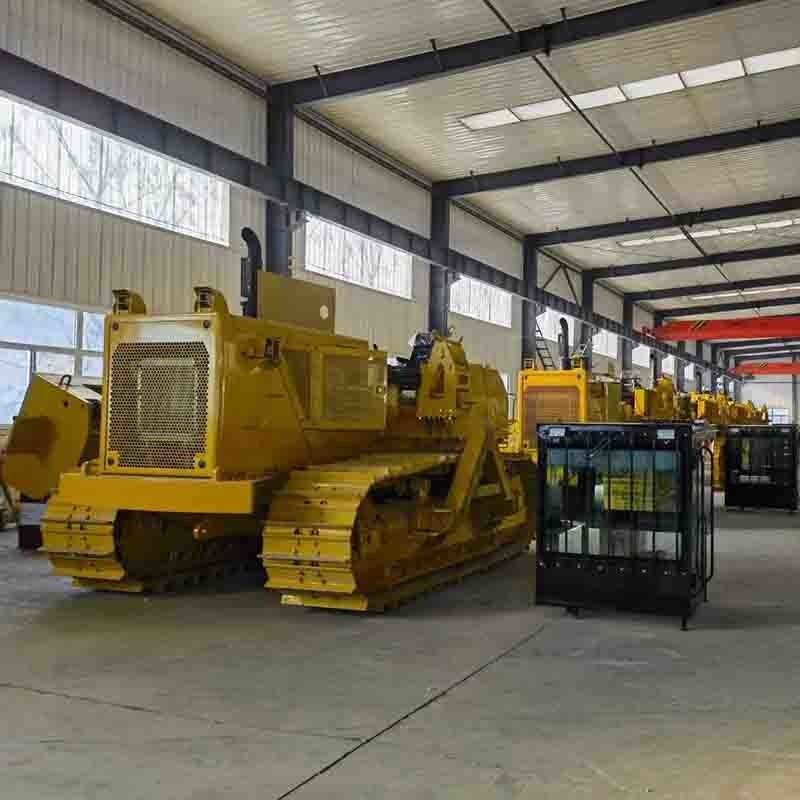

90T Pipeline Layer Side Arm Tracked Hydraulic Mountain Type 2

90T Pipeline Layer Side Arm Tracked Hydraulic Mountain Type 3





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
