Automatic Pipeline Welding Paywelder Machine With Stamford Generator

Automatic Pipeline Welding Paywelder Machine With Stamford Generator

Automatic Pipeline Welding Paywelder

Pipeline Welding Paywelder Machine

Stamford Generator Paywelder

Place of Origin:

Langfang, Hebei, China

Brand Name:

suhigo

Certification:

ISO-9001

Model Number:

HG125

Contact Us

Request A Quote
Product Details
Generator:
Stamford
Hydraulic System:
Sauer Dandoss
Crane:
Palfinger
Engine:
Cummins 6BTA5.9-C180
Width-Track Show:
600mm
Generation Type:
Direct Connection
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
bargain
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

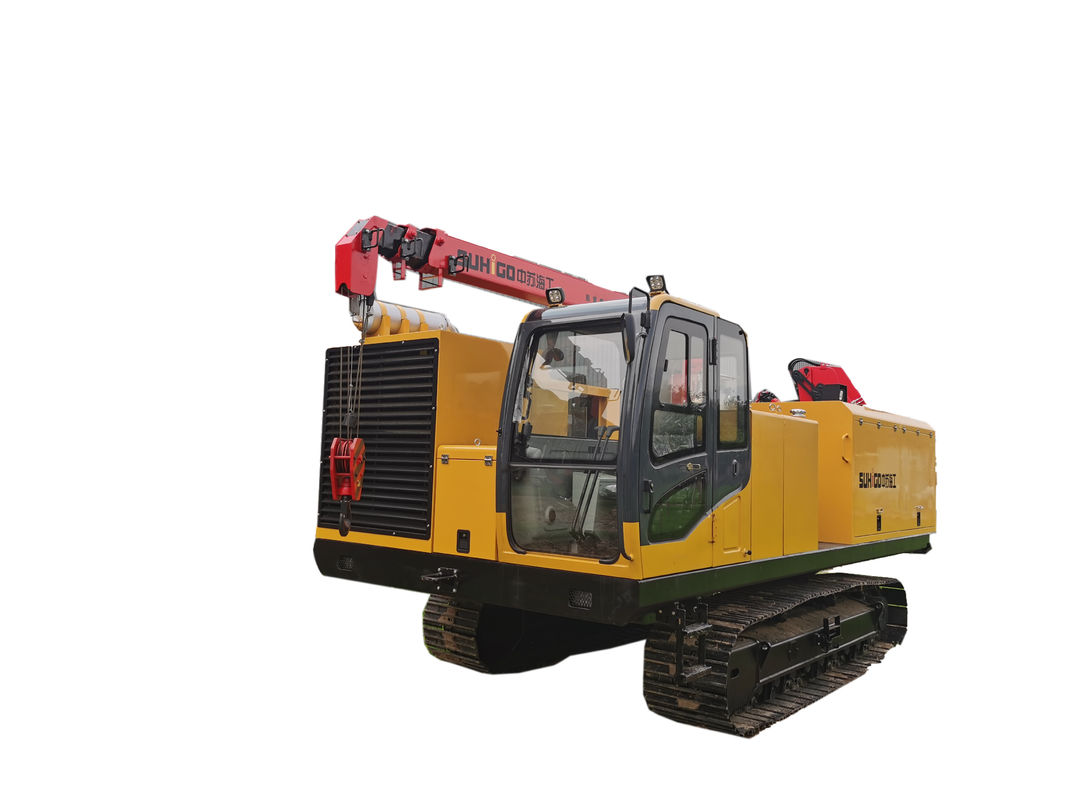

HG125 Full hydraulic Pay Welder (Mobile Power Station) For Pipeline Construction


HG125 Full hydraulic Pay Welder (Mobile Power Station) For Pipeline Construction



Introcdution





  Paywelder also called Welding Tractor, it is designed for automatic pipeline welding system and other applications in remote areas. Suhigo provide different model paywelders to serve the customers from Global. Normally the standard paywelders will be featured with world-class engine to drive the carrier, world-class generator to provide electricity for welding machine and world-class crane to flexible move construction equipment. Customized service available to satisfy special requirements from different areas.





Automatic Pipeline Welding Paywelder Machine With Stamford Generator 0



Advantages





  • The walking system adopts full-power variable open hydraulic system. The chassis adopts the crawler-type all-steel bottom structure, hydraulic double-circuit drive, low specific pressure, good passability, and good adaptability to both mountains and wetlands.
  • The transmission system has small moment of inertia, stable transmission and good acceleration and deceleration performance. The vehicle has high reliability, long service life and strong impact resistance; it is labor-saving, convenient and sensitive.
  • The engine adopts the world-famous Cummins brand, high efficiency, energy saving and high reliability, the whole vehicle can work in the environment temperature -42 ° C -55 ° C, humidity is not more than 90%, it is the ideal engine of Pay welder
  • The generator adopts the Stanford brand generator, which has high power generation quality and superior performance.
  • The cantilever crane adopts international mature products, compact structure, heavy hanging, 360° full rotation. PALFINGER or HIAB for option
  • The instrument monitoring system can measure and control the working conditions of the engine, hydraulic system and electrical system at any time. When the important working parameters are abnormal, the monitoring system will emit an audible and visual alarm to effectively prevent equipment failure. Desktop instrument LCD display, easy to operate, user-friendly design concept, luxurious and practical







Item HG125
ENGINE Model Cummins 6BTA5.9-C180
Rated powder 154kW
Rated speed 2200rpm
Electrical system 24V
Starter 6.6KW/8.25HP
Displacement 5.9L
GENERATOR Model No. Stamford
Rated capacity 125kVA
Rated voltage 220V/380V
Rated frequency 50Hz
Item HG125
Hydraulic System Make Sauer Danfoss
Pump output-max 220L/min
Working pressure 29Mpa
Crane pumpoutput 35L/min
Working Pressure 20Mpa
Crane (optional) Brand PALFINGER
Model No. ST083-032
Hoisting capacity 3200kgs
Reach distance ≦7.8m
Rotary form 360°





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
