90T 60T 20T Construction Pipelayer Pipeline Equipment Farms Use

90T 60T 20T Construction Pipelayer Pipeline Equipment Farms Use

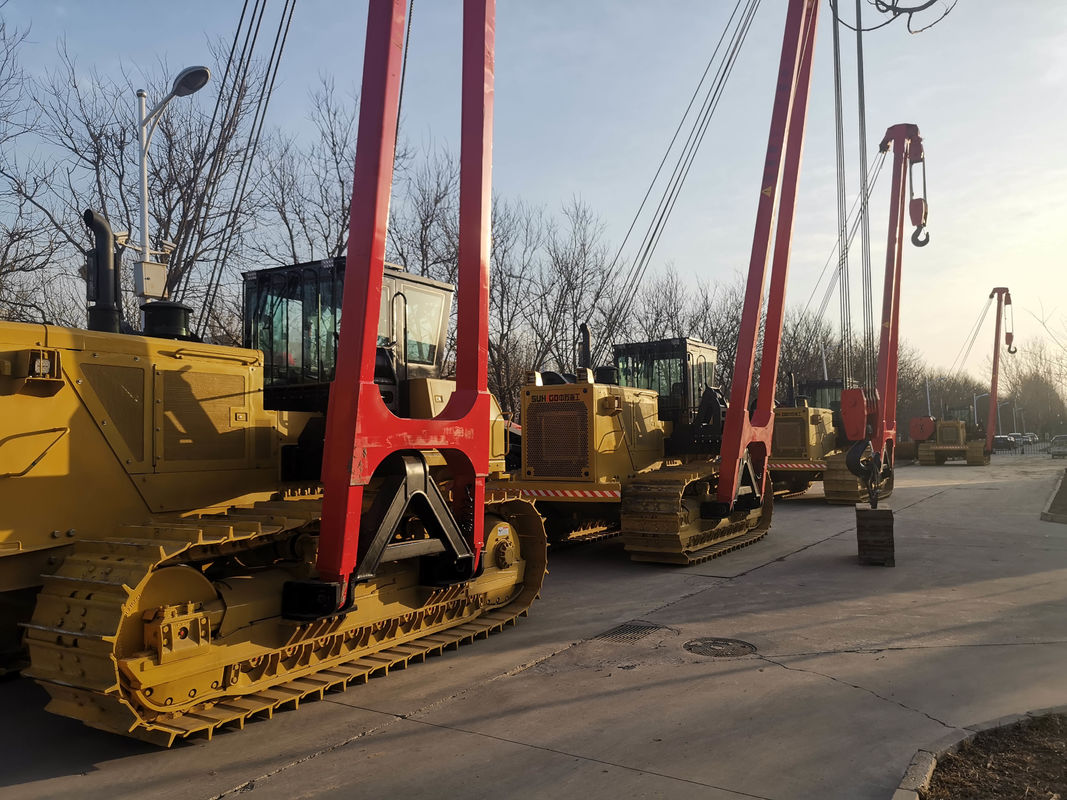

20T Construction Pipelayer

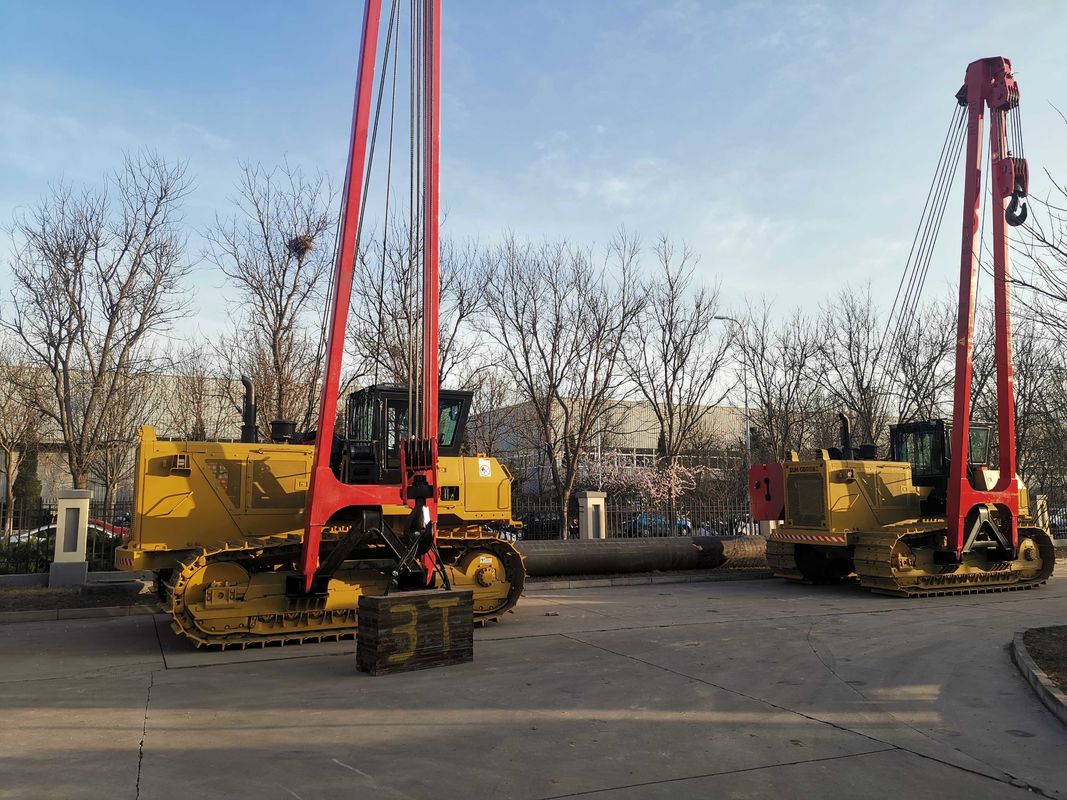

60T Construction Pipelayer

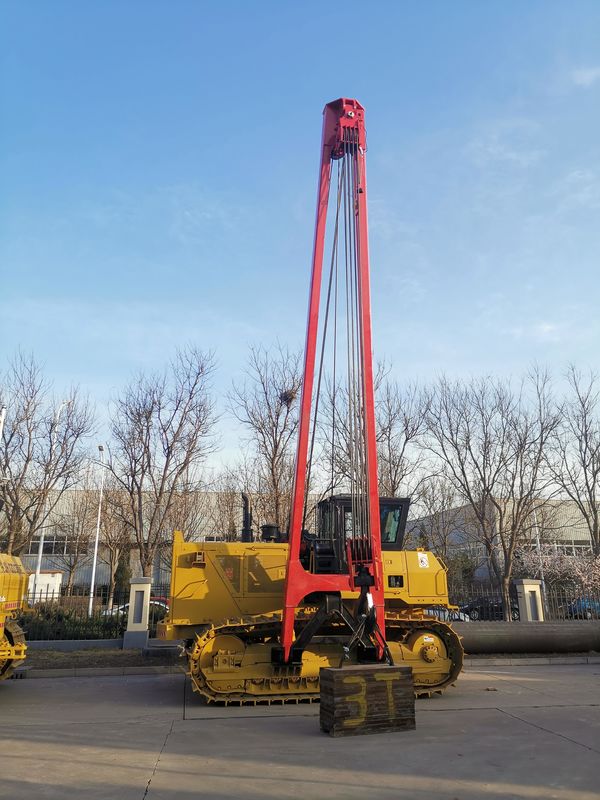

90T Construction Pipelayer

Place of Origin:

China

Brand Name:

Suhigo

Certification:

CE

Contact Us

Request A Quote
Product Details
Product Name:
HGY Pipe Layer
Applicable Industries:
Farms, Retail, Construction Works , Energy & Mining
Color:
Yellow And Red
Applicable Temperature:
Standard
Mobile Type:
Tracked Construction Machinery
Transmission:
Planetary Gears, Forced Lubrication Power Shift
Size:
Standard
Certification:
ISO9001 OHSAS18001 CE
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

Multiple Model For Pipeline Equipment Laying Machines 90T 60T 20T pipeline construction equipments




Itroduction



With spacious operation space and reasonable cab design, operators can easily see the required operation environment.
The lifting operation system adopts hydraulic control pilot operation. Through the universal handle, it can easily realize the separate control and composite control of the hook and boom, and easily realize its composite action.
Overall, it can provide simple, lightweight, flexible and reliable operation



The lifting mechanism is composed of a hook, a pulley block, a hoist, a driving motor, a brake, and a hook clutch. The hoisting mechanism is driven by a hydraulic motor through a planetary gear reduction mechanism to drive the hoist drum to realize the lifting and lowering of the hook. In addition to the normal lifting function, the lifting mechanism also has the function of safety hook drop. A normally closed brake is installed at the input end of the reducer to ensure the safety and reliability

of the lifting mechanism.



Model HGY25
Maximum lifting capacity 25t/ 55000lb
Rated lifting weight 20t/ 44000lb
Operating Weight 22t/ 48500lb
Overall size(mm) 4150×3050×3250
Host transportation quality 21.5t
Average grounding ratio 76.4KPa
Minimum ground clearance 480mm
Maximum climbing ability 25°
Applicable temperature -45~+60

Engine

Model SDEC SC11CB
Rated power 120KW
Rated speed 1850rpm





Feature

Pipelayers and other equipment can be monitored remotely:
Device binding and information reading
Equipment real-time positioning, historical trajectory monitoring
Equipment scheduling, equipment distribution, equipment management
Device remote control, remote lock
Real-time operating conditions, historical operating conditions and reading of working parameters





90T 60T 20T Construction Pipelayer Pipeline Equipment Farms Use 0

90T 60T 20T Construction Pipelayer Pipeline Equipment Farms Use 1







About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



Engine HGY25 HGY45 HGY70 HGY90
Model SDEC SC11CB Cummins NT855-C280 NT855-C360 Cummins NT855-C360
Rated Power 120kw / 160hp 169kw /225hp 257kw / 340hp 257kw / 340hp
Rated Speed 1850RPM 2000rpm 2000rpm 2000rpm



Lifting System HGY25 HGY45 HGY70 HGY90
Variable Mode Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing
Operation Mode Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick
Boom-Length 6000mm 7500 / 8500mm 7600 / 8600mm 8600 / 9600mm
Boom-Lifting Height 4909mm 6100 / 7050mm 7600 / 8600mm 7050 / 9600mm
Boom Angle 0~85° 0~86° 0~86° 0~86°
Hook Speed (6~8times rate) 0~12.0m/min 0~6.2m/min 0~7.0m/min 0~7.0m/min
Luffting Time (4~5times) 25S 20s 32s 40s



90T 60T 20T Construction Pipelayer Pipeline Equipment Farms Use 2

90T 60T 20T Construction Pipelayer Pipeline Equipment Farms Use 3





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
