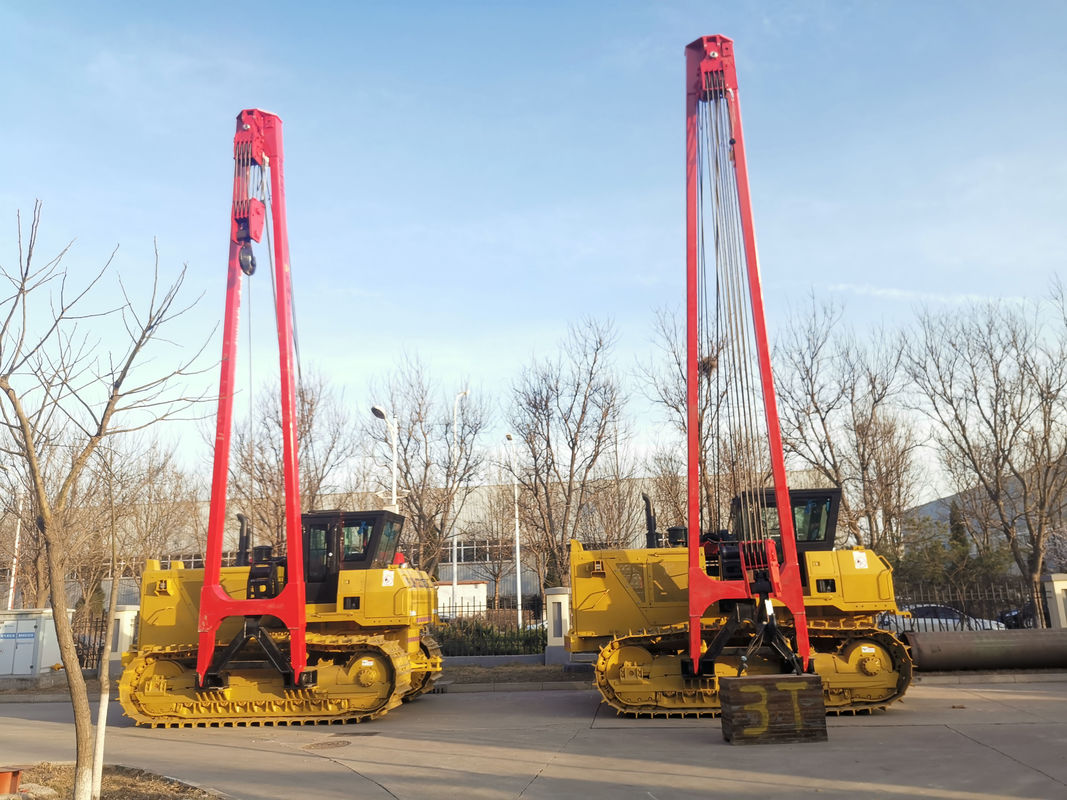

70T 45T 25T Pipeline Layer Construction Hosting Equipments Red

70T 45T 25T Pipeline Layer Construction Hosting Equipments Red

25T Pipeline Layer

45T Pipeline Layer

70T Pipeline Layer

Place of Origin:

China

Brand Name:

Suhigo

Certification:

CE

Model Number:

HGY25

Contact Us

Request A Quote
Product Details
Product Name:
HGY25 Pipe Layer
Color:
Red
Applicable Temperature:
-45℃~+60℃
Applicable Industries:
Farms, Retail, Construction Works , Energy & Mining
Size:
Standard
Mobile Type:
Tracked Construction Machinery
Transmission:
Planetary Gears, Forced Lubrication Power Shift
Certification:
ISO9001 OHSAS18001 CE
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

Multiple Model For Pipeline Equipment Laying Machines 90T 60T 20T pipeline construction equipments


Pipeline Equipment Pipelayers 70T 45T 25T pipeline construction equipments Hosting Equipments

Itroduction



With spacious operation space and reasonable cab design, operators can easily see the required operation environment.
The lifting operation system adopts hydraulic control pilot operation. Through the universal handle, it can easily realize the separate control and composite control of the hook and boom, and easily realize its composite action.
Overall, it can provide simple, lightweight, flexible and reliable operation



This series of products is an important construction equipment in the construction of oil and gas pipelines, mainly used for pipe layout, matching and trenching operations of large-diameter pipes.

In addition to the function of pipelayer, this product can also be used for pipe-hanging walking and docking operations in the construction of pipeline networks such as petroleum, natural gas, chemical industry, and water conservancy. The main uses are as follows:

This machine can also be used as a general crane. In mining, water conservancy, urban construction, petroleum, chemical and other large-scale projects, it is used for loading and unloading, lifting, stacking and other work. It is an ideal multifunctional construction equipment for the construction of oil, gas, water and other fluid transportation pipelines.





Model HGY25 HGY45 HGY70 HGY90
Max Lifting Capacity 25tons / 55000lb 45tons/ 100,000lb 70tons/ 154,000lb 90tons / 200,000lb
Rated Lifting Capacity 20tons / 44000lb 38tons/ 83,000lb 59tons/ 130,000lb 77tons / 170,000lb
Operating Weight 22tons / 48500lb 35tons/ 77,000lb 49tons/ 108,000lb 55tons / 121,000lb
Overall Size 4150 x 3050 x 3250mm 4855 × 3384 × 3270mm 5630 x 3400 x 3540mm 5630×3436×3540mm
Transportation Weight 21.5tons 26tons 37.5tons 38.9tons
Ground pressure 76.4Kpa 85.2Kpa 87.3Kpa 86.6Kpa
Min Ground Clearance 480mm 490mm 550mm 550mm
Max Climbing Ability 25° 25° 25° 25°
Applicable Temp -45℃~+60℃ -45℃~+60℃ -45℃~+60℃ -45℃~+60℃
Engine HGY25 HGY45 HGY70 HGY90
Model SDEC SC11CB Cummins NT855-C280 NT855-C360 Cummins NT855-C360
Rated Power 120kw / 160hp 169kw /225hp 257kw / 340hp 257kw / 340hp
Rated Speed 1850RPM 2000rpm 2000rpm 2000rpm
Travelling System HGY25 HGY45 HGY70 HGY90
Operation Level Level Level Level
Speed (Forward) 3.29 / 5.28km/h 3.6 / 6.6km/h 3.6 / 6.6km/h 3.6 / 6.6km/h
Speed (Reverse) 4.28 / 7.59km/h 4.3 / 7.7km/h 4.4 / 7.8km/h 4.4 / 7.8km/h
Track Gauge 2050mm 2250mm 2380mm 2490mm
Length- Track on ground 2635mm 3050mm 3620mm 3620mm
Width- Track Shoes 560mm 660mm 760mm 760mm
Number of Bottom Rollers 2×2 2×2 2×2 2×2
Number of Carrying Rollers 7×2 7×2 9×2 9×2
Lifting System HGY25 HGY45 HGY70 HGY90
Variable Mode Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing
Operation Mode Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick
Boom-Length 6000mm 7500 / 8500mm 7600 / 8600mm 8600 / 9600mm
Boom-Lifting Height 4909mm 6100 / 7050mm 7600 / 8600mm 7050 / 9600mm
Boom Angle 0~85° 0~86° 0~86° 0~86°
Hook Speed (6~8times rate) 0~12.0m/min 0~6.2m/min 0~7.0m/min 0~7.0m/min
Luffting Time (4~5times) 25S 20s 32s 40s







Feature

Pipelayers and other equipment can be monitored remotely:
Device binding and information reading
Equipment real-time positioning, historical trajectory monitoring
Equipment scheduling, equipment distribution, equipment management
Device remote control, remote lock
Real-time operating conditions, historical operating conditions and reading of working parameters





70T 45T 25T Pipeline Layer Construction Hosting Equipments Red 0

70T 45T 25T Pipeline Layer Construction Hosting Equipments Red 1







About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



Engine HGY25 HGY45 HGY70 HGY90
Model SDEC SC11CB Cummins NT855-C280 NT855-C360 Cummins NT855-C360
Rated Power 120kw / 160hp 169kw /225hp 257kw / 340hp 257kw / 340hp
Rated Speed 1850RPM 2000rpm 2000rpm 2000rpm



Lifting System HGY25 HGY45 HGY70 HGY90
Variable Mode Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing
Operation Mode Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick
Boom-Length 6000mm 7500 / 8500mm 7600 / 8600mm 8600 / 9600mm
Boom-Lifting Height 4909mm 6100 / 7050mm 7600 / 8600mm 7050 / 9600mm
Boom Angle 0~85° 0~86° 0~86° 0~86°
Hook Speed (6~8times rate) 0~12.0m/min 0~6.2m/min 0~7.0m/min 0~7.0m/min
Luffting Time (4~5times) 25S 20s 32s 40s



70T 45T 25T Pipeline Layer Construction Hosting Equipments Red 2

70T 45T 25T Pipeline Layer Construction Hosting Equipments Red 3





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
