Yellow And Red 70T Side Boom Pipeline Layer Construction Pipelayer

Yellow And Red 70T Side Boom Pipeline Layer Construction Pipelayer

70T Side Boom Pipeline Layer

Red Construction Pipelayer

Yellow Construction Pipelayer

Place of Origin:

China

Brand Name:

Suhigo

Certification:

CE

Model Number:

HGY90

Contact Us

Request A Quote
Product Details
Product Name:
HGY90 Pipe Layer
Applicable Industries:
Farms, Retail, Construction Works , Energy & Mining
Mobile Type:
Tracked Construction Machinery
Size:
5630×3400×3540mm
Color:
Yellow And Red
Certification:
ISO9001 OHSAS18001 CE
Applicable Temperature:
-45℃~+60℃
Transmission:
Planetary Gears, Forced Lubrication Power Shift
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

70 Ton Side Boom For Pipeline constrcution Best Selling Pipelayer yellow and red




INTRODUCTION





1.HGY series pipelayers provided by our company is a specialized pipeline construction equipment, mainly used in lifting, transportation and laying of pipeline .
2.The equipment adopts the special chassis of the pipelayer developed based on the bulldozer chassis,
3.Walking system adopts mechanical transmission and lever operation.
4.Working device adopts hydraulic transmission, operated handle , the transmission efficiency is high, and the work is stable. It is an international popular pipelayer configuration.



Model HGY25 HGY45 HGY70 HGY90
Max Lifting Capacity 25tons / 55000lb 45tons/ 100,000lb 70tons/ 154,000lb 90tons / 200,000lb
Rated Lifting Capacity 20tons / 44000lb 38tons/ 83,000lb 59tons/ 130,000lb 77tons / 170,000lb
Operating Weight 22tons / 48500lb 35tons/ 77,000lb 49tons/ 108,000lb 55tons / 121,000lb
Overall Size 4135 x 3050 x 3245mm 4750 × 3350 × 3270mm 5630 x 3400 x 3540mm 5630×3436×3540mm
Transportation Weight 18.5tons 26tons 37.5tons 38.9tons
Ground pressure 76.4Kpa 85.2Kpa 87.3Kpa 86.6Kpa
Min Ground Clearance 480mm 490mm 550mm 550mm
Max Climbing Ability 25° 25° 25° 25°
Applicable Temp -45℃~+60℃ -45℃~+60℃ -45℃~+60℃ -45℃~+60℃
Engine HGY25 HGY45 HGY70 HGY90
Model SDEC SC11CB Cummins NT855-C280 NT855-C360 Cummins NT855-C360
Rated Power 120kw / 160hp 169kw /225hp 257kw / 340hp 257kw / 340hp
Rated Speed 1850RPM 2000rpm 2000rpm 2000rpm
Lifting System HGY25 HGY45 HGY70 HGY90
Variable Mode Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing
Operation Mode Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick
Boom-Length 6000mm 7500 / 8500mm 7600 / 8600mm 8600 / 9600mm
Boom-Lifting Height 4909mm 6400 / 7400mm 6100 / 7050mm 7050 / 8970mm
Boom Angle 0~85° 0~86° 0~86° 0~86°
Hook Speed (6~8times rate) 0~12.0m/min 0~6.2m/min 0~7.0m/min 0~7.0m/min
Luffting Time (4~5times) 25S 20s 32s 40s



Technical Features of Suhigo Pipelayer:

1) The high-strength pipelayer special chassis adopts large gauge design to improve the stability of the whole machine, making it more suitable for the side lifting condition

2) Complete safety devices to ensure lifting safety

3) Smooth transmission system

4) The hoisting system adopts full hydraulic transmission, with stable transmission and good fretting performance

5) Simple and convenient operation; Strong adaptability

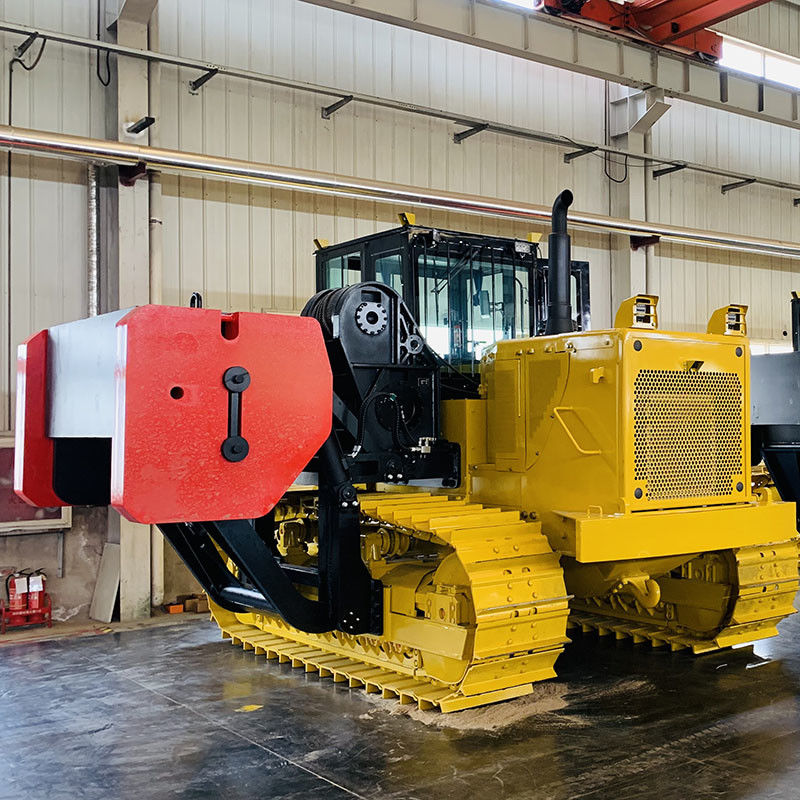

Yellow And Red 70T Side Boom Pipeline Layer Construction Pipelayer 0







About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

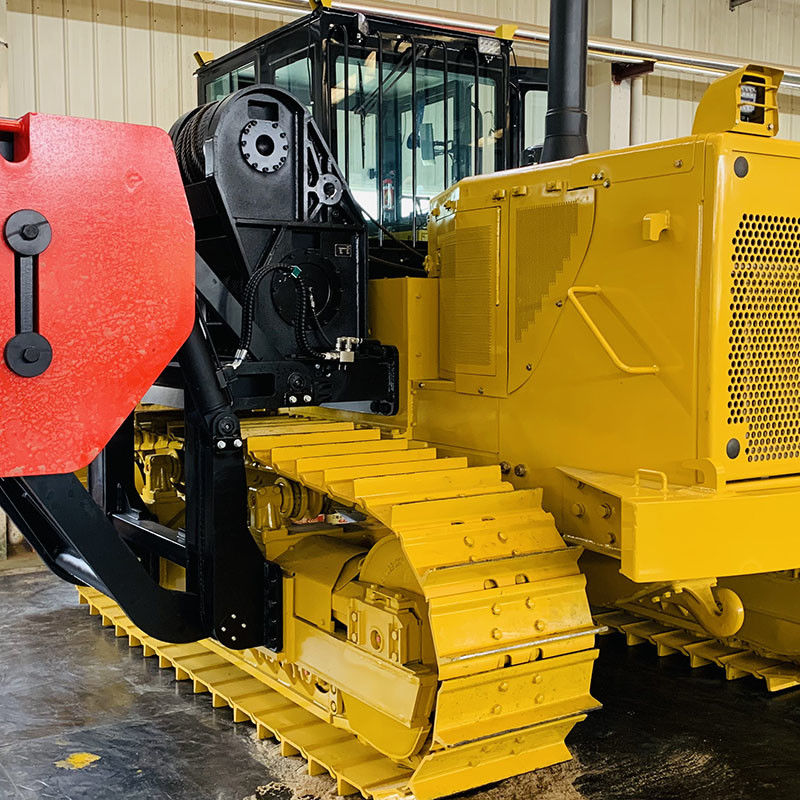

Yellow And Red 70T Side Boom Pipeline Layer Construction Pipelayer 1

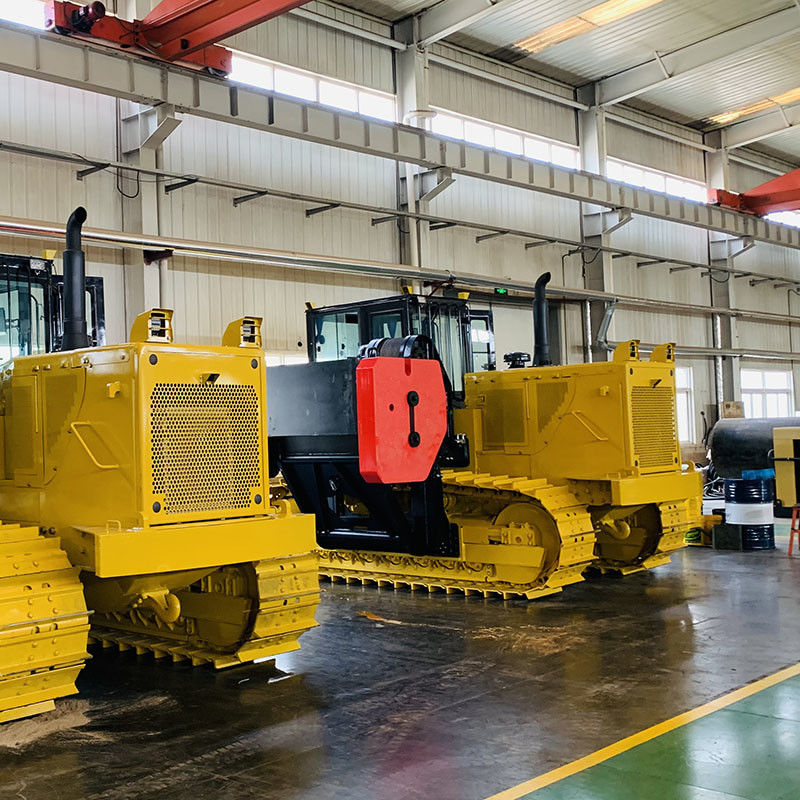

Yellow And Red 70T Side Boom Pipeline Layer Construction Pipelayer 2





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
