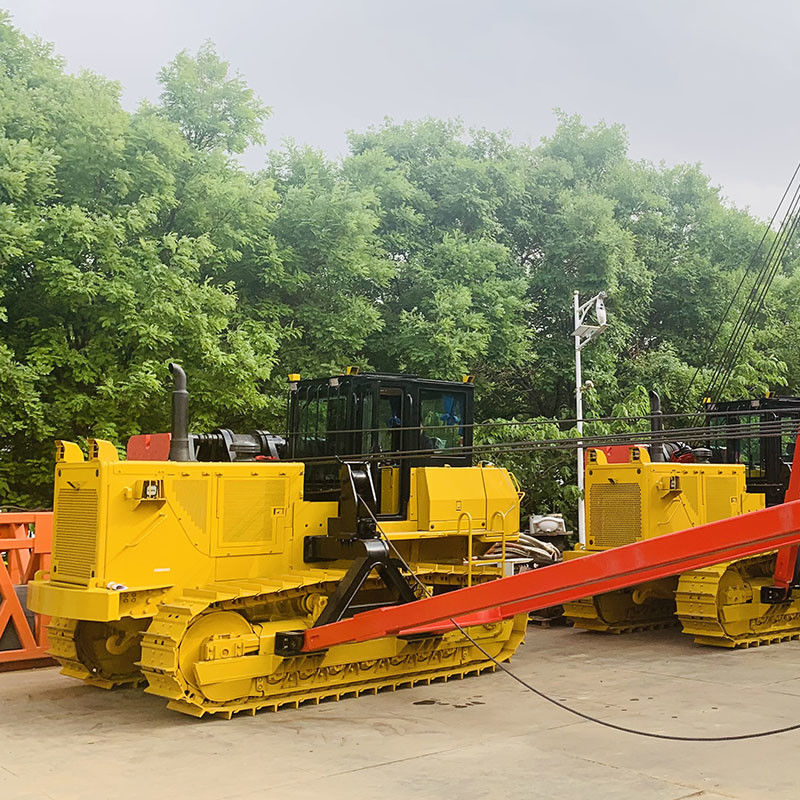

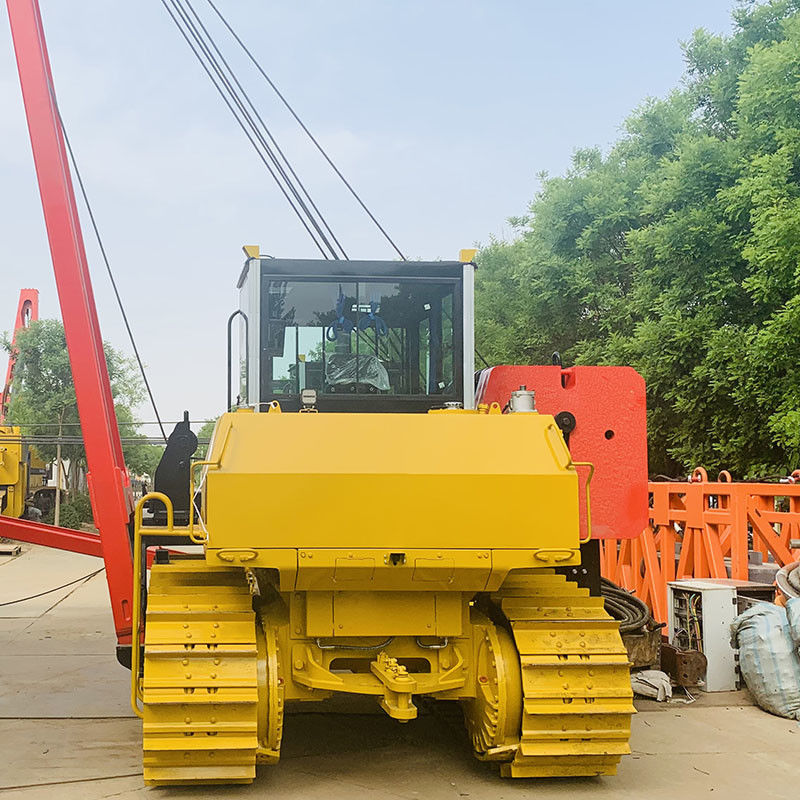

90 Ton Tracked Hydraulic Mountain Push Side Arm Pipe Hanger HGY90 Series Machinery

90 Ton Tracked Hydraulic Mountain Push Side Boom Pipe Hanger HGY90(90Tons)crawler pipelayer

Itroduction

1.HGY series pipelayers provided by our company is a specialized pipeline construction equipment, mainly used in lifting, transportation and laying of pipeline .
2.The equipment adopts the special chassis of the pipelayer developed based on the bulldozer chassis,
3.Walking system adopts mechanical transmission and lever operation.
4.Working device adopts hydraulic transmission, operated handle , the transmission efficiency is high, and the work is stable. It is an international popular pipelayer configuration.

HGY90 hydraulic crawler pipelayer is a mature product developed according to the market demand and combined with the experience of the original pipelayer. This series of products adopts the domestic well-known Shantui crawler-type pipelayer special chassis, the transmission system is a trinity hydraulic transmission mode of engine, torque converter and gearbox, and the power equipment is Cummins series engines of domestic well-known brands.

Pin shaft sensor technical parameters

Feature

The lifting system adopts open hydraulic transmission with gear pump oil supply with strong anti pollution ability and self-priming ability, with stable transmission, stepless speed change, good micro motion performance and strong adaptability.
The lifting hook and boom luffing are controlled by hydraulic winch, and the counterweight retraction and release are controlled by hydraulic oil cylinder, which meets the requirements for efficiency and accuracy during pipe crane operation.
The boom is welded with HG60 high-strength steel, with light weight and high strength.

About Suhigo

1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
