Pipeline Construction Pipelayer 90T Large Side Boom Pipelayer For Pipe Laying

Pipeline Construction Pipelayer 90T Large Side Boom Pipelayer For Pipe Laying

Pipeline Construction Pipelayer

Construction Pipelayer 90T

90T Large Side Boom Pipelayer

Place of Origin:

China

Brand Name:

Suhigo

Certification:

CE

Model Number:

HGY25

Contact Us

Request A Quote
Product Details
Mobile Type:
Tracked Construction Machinery
Product Name:
HGY25 Pipe Layer
Transmission:
Planetary Gears, Forced Lubrication Power Shift
Color:
Yellow And Red
Certification:
ISO9001 OHSAS18001 CE
Size:
4135×3050×3245
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

Multiple Model For Pipeline Construction Pipelayer 90T Large Side Boom For Pipe Laying

Itroduction

  1. Pipelayers are mainly used as special equipment for the construction of long-distance pipelines such as oil, natural gas, and water, such as pipe transportation, pipe layout, assembly, and trenching.
  2. With spacious operation space and reasonable cab design, operators can easily see the required operation environment.
  3. The lifting operation system adopts hydraulic control pilot operation. Through the universal handle, it can easily realize the separate control and composite control of the hook and boom, and easily realize its composite action.
  4. Overall, it can provide simple, lightweight, flexible and reliable operation
  5. The lifting mechanism is composed of a hook, a pulley block, a hoist, a driving motor, a brake, and a hook clutch. The hoisting mechanism is driven by a hydraulic motor through a planetary gear reduction mechanism to drive the hoist drum to realize the lifting and lowering of the hook. In addition to the normal lifting function, the lifting mechanism also has the function of safety hook drop. A normally closed brake is installed at the input end of the reducer to ensure the safety and reliability
  6. of the lifting mechanism.



Device model HGY25 HGY45 HGY70 HGY90 HGY105

Maximum

Lifting Capacity t

25 45 70 90 105
quality (approx.) t 22 35 49.5 55 62
Host transport size mm 4135×3050×3245 4750×3350×3270 5630×3400×3540 5630×3436×3540 6045×4120×3980
host transport quality t 18.5 26 37.5 38.9 42.5

Minimum ground clearance

mm

480 490 550 550 575
gauge mm 2050 2250 2380 2490 2550
Track shoe width mm 560 660 760 860 860
engine WEICHAI CUMMINS CUMMINS CUMMINS CUMMINS
power/speed kW /rpm 120/1850 169/ 2000 257/2000 257/2000 310/2000
Arm lengt(customizable)mm 6000 7500 8600 9600 9600





Technical Features of Suhigo Pipelayer:

1) The high-strength pipelayer special chassis adopts large gauge design to improve the stability of the whole machine, making it more suitable for the side lifting condition

2) Complete safety devices to ensure lifting safety

3) Smooth transmission system

4) The hoisting system adopts full hydraulic transmission, with stable transmission and good fretting performance

5) Simple and convenient operation; Strong adaptability

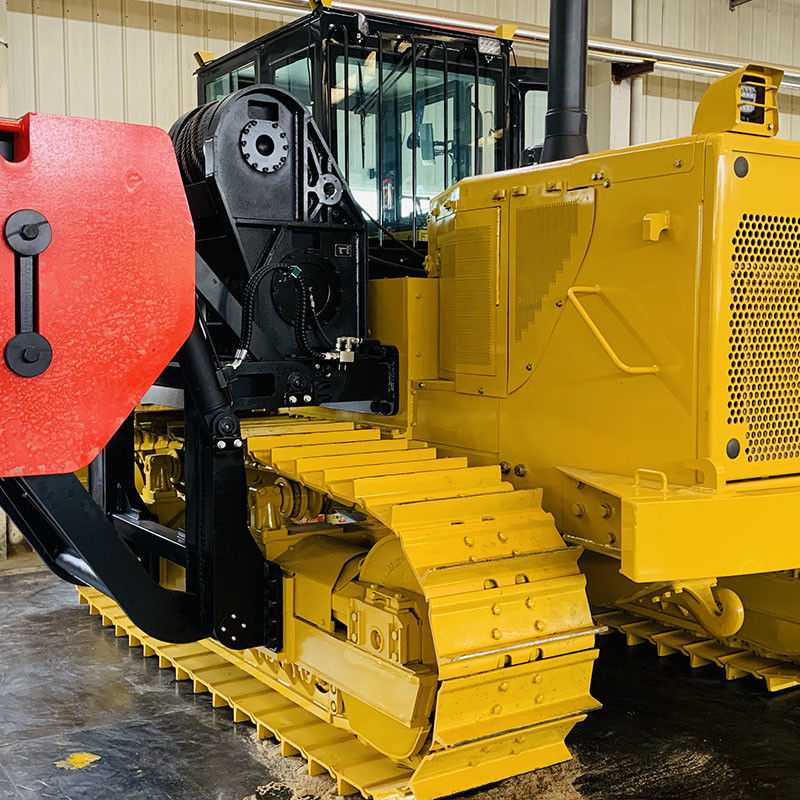

Pipeline Construction Pipelayer 90T Large Side Boom Pipelayer For Pipe Laying 0

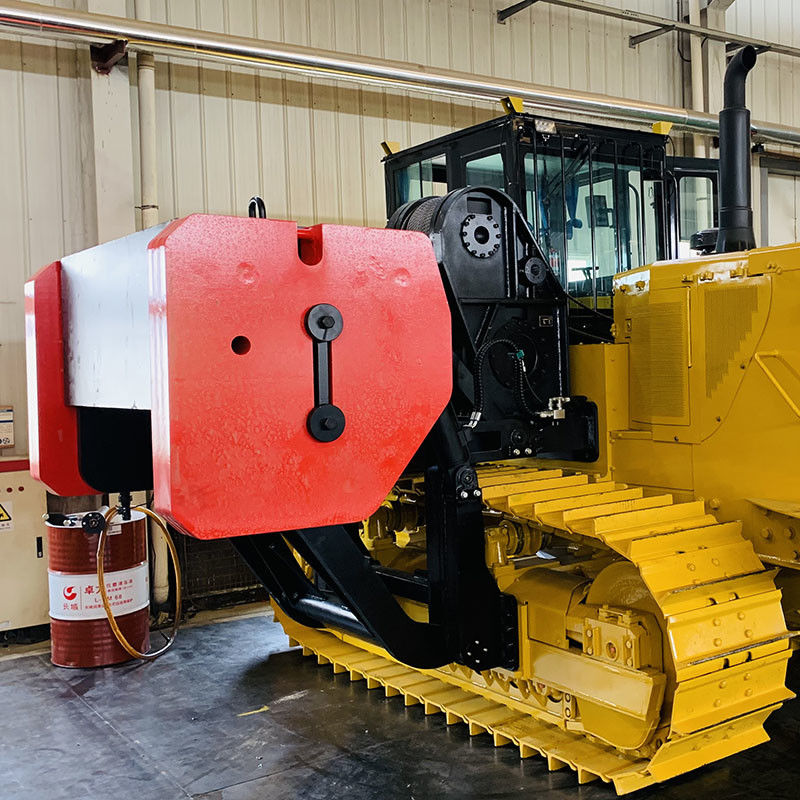

Pipeline Construction Pipelayer 90T Large Side Boom Pipelayer For Pipe Laying 1







About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



Engine HGY25 HGY45 HGY70 HGY90
Model SDEC SC11CB Cummins NT855-C280 NT855-C360 Cummins NT855-C360
Rated Power 120kw / 160hp 169kw /225hp 257kw / 340hp 257kw / 340hp
Rated Speed 1850RPM 2000rpm 2000rpm 2000rpm



Lifting System HGY25 HGY45 HGY70 HGY90
Variable Mode Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing
Operation Mode Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick
Boom-Length 6000mm 7500 / 8500mm 7600 / 8600mm 8600 / 9600mm
Boom-Lifting Height 4909mm 6400 / 7400mm 6100 / 7050mm 7050 /8110mm
Boom Angle 0~85° 0~86° 0~86° 0~86°
Hook Speed (6~8times rate) 0~12.0m/min 0~6.2m/min 0~7.0m/min 0~7.0m/min
Luffting Time (4~5times) 25S 20s 32s 40s

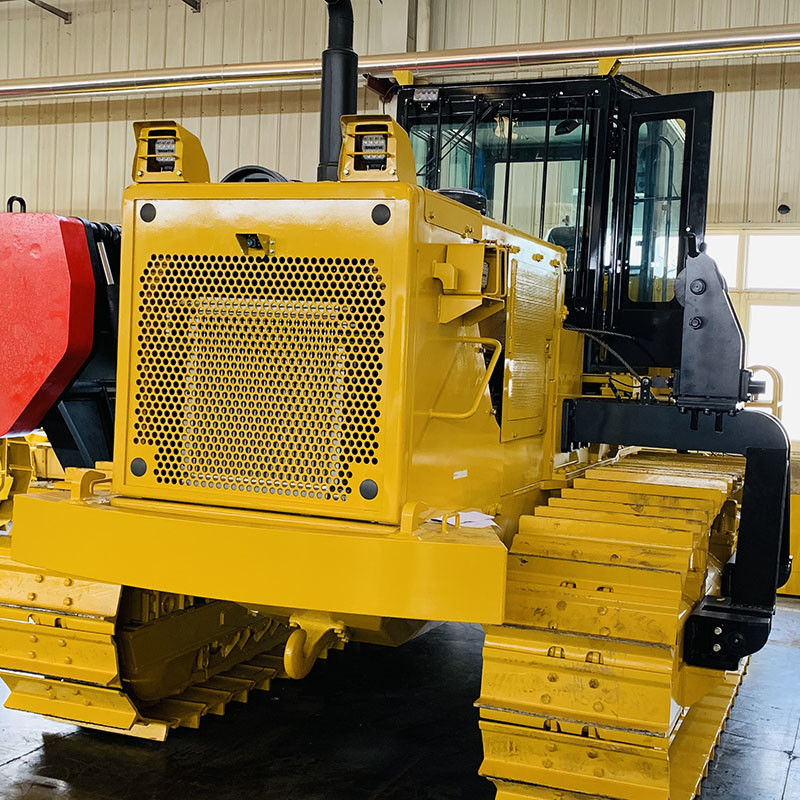

Pipeline Construction Pipelayer 90T Large Side Boom Pipelayer For Pipe Laying 2

Pipeline Construction Pipelayer 90T Large Side Boom Pipelayer For Pipe Laying 3





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
