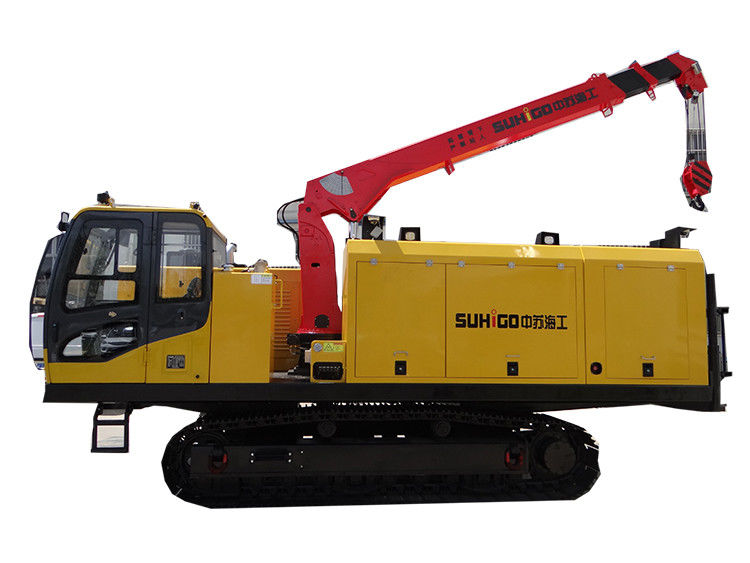

Palfinger Crane Paywelder Pipeline Welding Equipment Cummins Engine

Palfinger Crane Paywelder Pipeline Welding Equipment Cummins Engine

Paywelder Pipeline Welding Equipment

Palfinger Crane Paywelder

Crane Paywelder Pipeline Welding

Place of Origin:

Langfang, Hebei, China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Hydraulic System:
Sauer Dandoss
Cummins 6BTA5.9-C205
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

Moutiple Model Paywelder Welding Machine Safety Work Long Term Use Yellow and Red Pipeline Equipments






  Paywelder also called Welding Tractor, it is designed for automatic pipeline welding system and other applications in remote areas. Suhigo provide different model paywelders to serve the customers from Global. Normally the standard paywelders will be featured with world-class engine to drive the carrier, world-class generator to provide electricity for welding machine and world-class crane to flexible move construction equipment. Customized service available to satisfy special requirements from different areas.



Palfinger Crane Paywelder Pipeline Welding Equipment Cummins Engine 0





  • The walking system adopts full-power variable open hydraulic system. The chassis adopts the crawler-type all-steel bottom structure, hydraulic double-circuit drive, low specific pressure, good passability, and good adaptability to both mountains and wetlands.
  • The transmission system has small moment of inertia, stable transmission and good acceleration and deceleration performance. The vehicle has high reliability, long service life and strong impact resistance; it is labor-saving, convenient and sensitive.
  • The engine adopts the world-famous Cummins brand, high efficiency, energy saving and high reliability, the whole vehicle can work in the environment temperature -42 ° C -55 ° C, humidity is not more than 90%, it is the ideal engine of Pay welder
  • The generator adopts the Stanford brand generator, which has high power generation quality and superior performance.
  • The cantilever crane adopts international mature products, compact structure, heavy hanging, 360° full rotation. PALFINGER or HIAB for option
  • The instrument monitoring system can measure and control the working conditions of the engine, hydraulic system and electrical system at any time. When the important working parameters are abnormal, the monitoring system will emit an audible and visual alarm to effectively prevent equipment failure. Desktop instrument LCD display, easy to operate, user-friendly design concept, luxurious and practical




Model HG160
Dimension 6310x3000x3300mm
Weight 13T
Crawler contact ground pressure 28.5kPa
gradeability ≦30°
Traction ≦91kn
Driving speed- Low speed 0~3.7km/h
Driving speed- High speed 0~6.4km/h




Palfinger Crane Paywelder Pipeline Welding Equipment Cummins Engine 1Palfinger Crane Paywelder Pipeline Welding Equipment Cummins Engine 2


Main Features of Engine

  • Adopt Cummins four-stroke, turbocharged, direct electric start, water-cooled diesel engine
  • High power reserve, strong power, stable power generation quality and convenient maintenance
  • The standard engine improves the engine heat dissipation system and adopts a large water tank structure. The engine has withstood the test of the high temperature environment of the CPP Indian project and the low temperature environment of the Russian project.
  • The standard equipment has been equipped with an air pre filter. By adding an air pre filter, 95% of the dust and impurities in the air inlet system can be filtered, the cleaning and replacement time of the air filter element can be prolonged by 6 ~ 10 times, the early wear of the engine can be reduced, the service life of the engine can be prolonged, and the adaptability of the equipment to the environment can be improved.



Palfinger Crane Paywelder Pipeline Welding Equipment Cummins Engine 3



About Suhigo


  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.
