Yellow Paywelder Machine Automated Pipeline Welding System

Yellow Paywelder Machine Automated Pipeline Welding System

Yellow Paywelder Machine

Paywelder Automated Pipeline Welding System

Yellow Paywelder

Place of Origin:

Langfang, Hebei, China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Cummins 6BTA5.9-C205
Hydraulic System:
Sauer Dandoss
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

Pipe welding machine Made in China Great Welding Machine For Pipeline Yellow and Red color HG Serise






  Paywelder also called Welding Tractor, it is designed for automatic pipeline welding system and other applications in remote areas. Suhigo provide different model paywelders to serve the customers from Global. Normally the standard paywelders will be featured with world-class engine to drive the carrier, world-class generator to provide electricity for welding machine and world-class crane to flexible move construction equipment. Customized service available to satisfy special requirements from different areas.

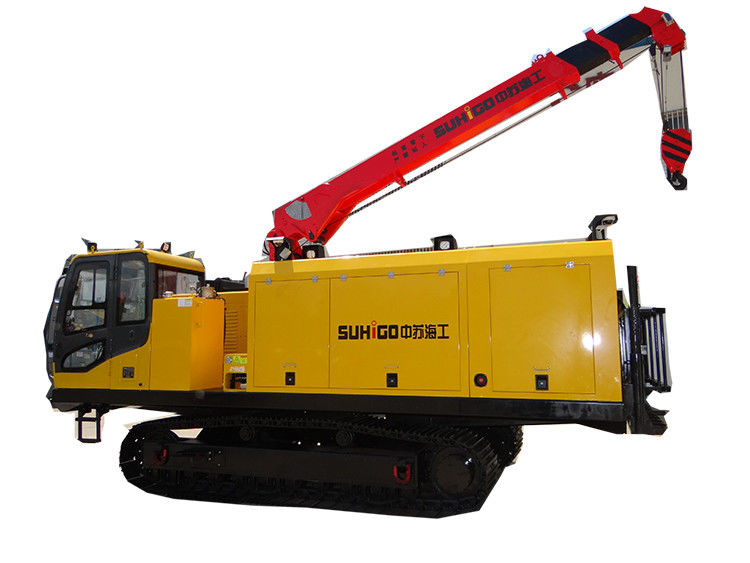

Yellow Paywelder Machine Automated Pipeline Welding System 0





  • The walking system adopts full-power variable open hydraulic system. The chassis adopts the crawler-type all-steel bottom structure, hydraulic double-circuit drive, low specific pressure, good passability, and good adaptability to both mountains and wetlands.
  • The transmission system has small moment of inertia, stable transmission and good acceleration and deceleration performance. The vehicle has high reliability, long service life and strong impact resistance; it is labor-saving, convenient and sensitive.
  • The engine adopts the world-famous Cummins brand, high efficiency, energy saving and high reliability, the whole vehicle can work in the environment temperature -42 ° C -55 ° C, humidity is not more than 90%, it is the ideal engine of Pay welder
  • The generator adopts the Stanford brand generator, which has high power generation quality and superior performance.
  • The cantilever crane adopts international mature products, compact structure, heavy hanging, 360° full rotation. PALFINGER or HIAB for option
  • The instrument monitoring system can measure and control the working conditions of the engine, hydraulic system and electrical system at any time. When the important working parameters are abnormal, the monitoring system will emit an audible and visual alarm to effectively prevent equipment failure. Desktop instrument LCD display, easy to operate, user-friendly design concept, luxurious and practical




Model HG160
Dimension 6310x3000x3300mm
Weight 13T
Crawler contact ground pressure 28.5kPa
gradeability ≦30°
Traction ≦91kn
Driving speed- Low speed 0~3.7km/h
Driving speed- High speed 0~6.4km/h

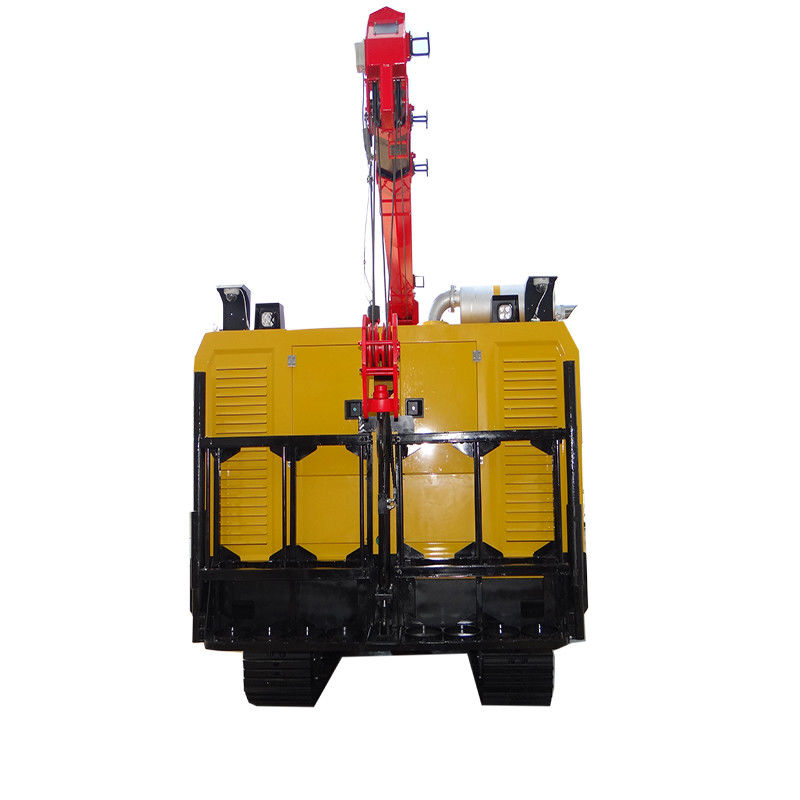

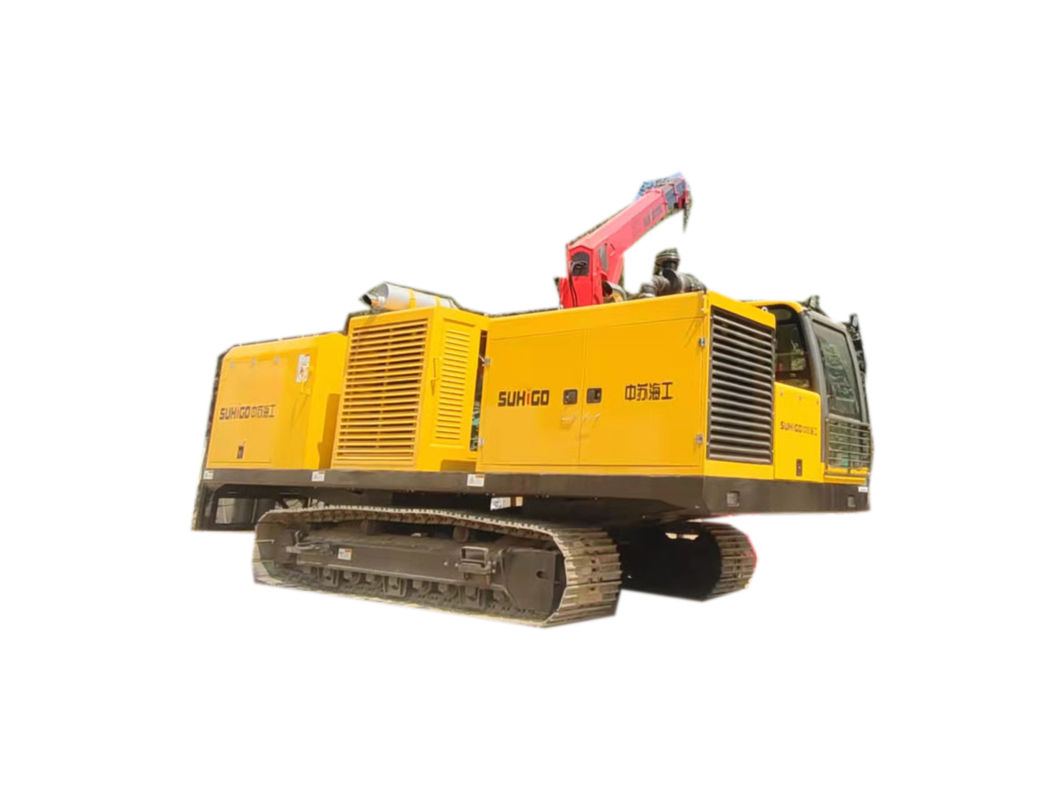

Yellow Paywelder Machine Automated Pipeline Welding System 1Yellow Paywelder Machine Automated Pipeline Welding System 2Yellow Paywelder Machine Automated Pipeline Welding System 3

Main Features of Power transfer system

The transmission system adopts the direct transmission mode. The main structural principle is to use the output of the engine, generator, travel pump and crane pump in the form of self-contained shafts, which are connected in series (as shown below), in which the generator and the traveling pump are both Output. Compared with the traditional transmission method, it has the following advantages:



Yellow Paywelder Machine Automated Pipeline Welding System 4



Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
