Automatic Pipeline Pay Welder Suhigo Pipeline Machines Yellow And Red

Automatic Pipeline Pay Welder Suhigo Pipeline Machines Yellow And Red

Automatic Pipeline Pay Welder

Automatic Pipeline PayWelder

Suhigo Pipeline Machines

Place of Origin:

Langfang, Hebei, China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Pay Welder
Langfang, Hebei
Yellow And Red
Hydraulic System:
Sauer Danfoss
Cummins 6BTA5.9-C180
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

Yellow and red Paywelder used for Pipeline Construction High quality equipment welding machine






  Paywelder also called Welding Tractor, it is designed for automatic pipeline welding system and other applications in remote areas. Suhigo provide different model paywelders to serve the customers from Global. Normally the standard paywelders will be featured with world-class engine to drive the carrier, world-class generator to provide electricity for welding machine and world-class crane to flexible move construction equipment. Customized service available to satisfy special requirements from different areas.

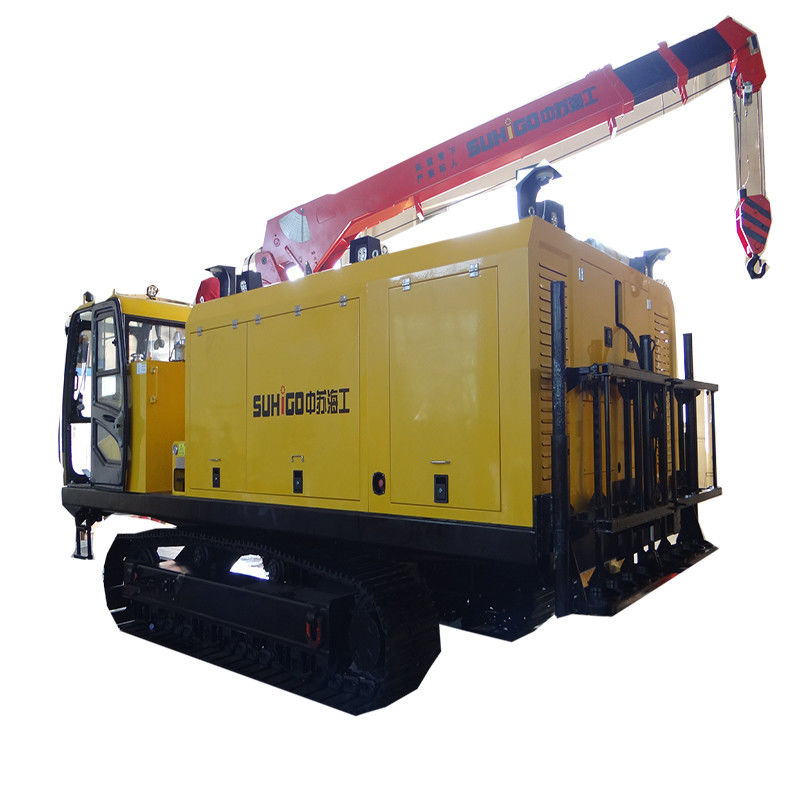

Automatic Pipeline Pay Welder Suhigo Pipeline Machines Yellow And Red 0





  • The walking system adopts full-power variable open hydraulic system. The chassis adopts the crawler-type all-steel bottom structure, hydraulic double-circuit drive, low specific pressure, good passability, and good adaptability to both mountains and wetlands.
  • The transmission system has small moment of inertia, stable transmission and good acceleration and deceleration performance. The vehicle has high reliability, long service life and strong impact resistance; it is labor-saving, convenient and sensitive.
  • The engine adopts the world-famous Cummins brand, high efficiency, energy saving and high reliability, the whole vehicle can work in the environment temperature -42 ° C -55 ° C, humidity is not more than 90%, it is the ideal engine of Pay welder
  • The generator adopts the Stanford brand generator, which has high power generation quality and superior performance.
  • The cantilever crane adopts international mature products, compact structure, heavy hanging, 360° full rotation. PALFINGER or HIAB for option
  • The instrument monitoring system can measure and control the working conditions of the engine, hydraulic system and electrical system at any time. When the important working parameters are abnormal, the monitoring system will emit an audible and visual alarm to effectively prevent equipment failure. Desktop instrument LCD display, easy to operate, user-friendly design concept, luxurious and practical





Air Conditioned/Heating Cab

Steel Undercarriage Tracks as standard, Rubber Tracks for option

European Brand Palfinger or HIAB Foldable Crane

World Famous Brand Cummins Engine

China Top Brand Shanghai Stamford Generator




Model HG160
Dimension 6636x2800x3370mm
Weight 13.5T
Crawler contact ground pressure 28.5kPa
gradeability ≦35°
Traction ≦91kn
Driving speed- Low speed 0~2.9km/h
Driving speed- High speed 0~4.6km/h

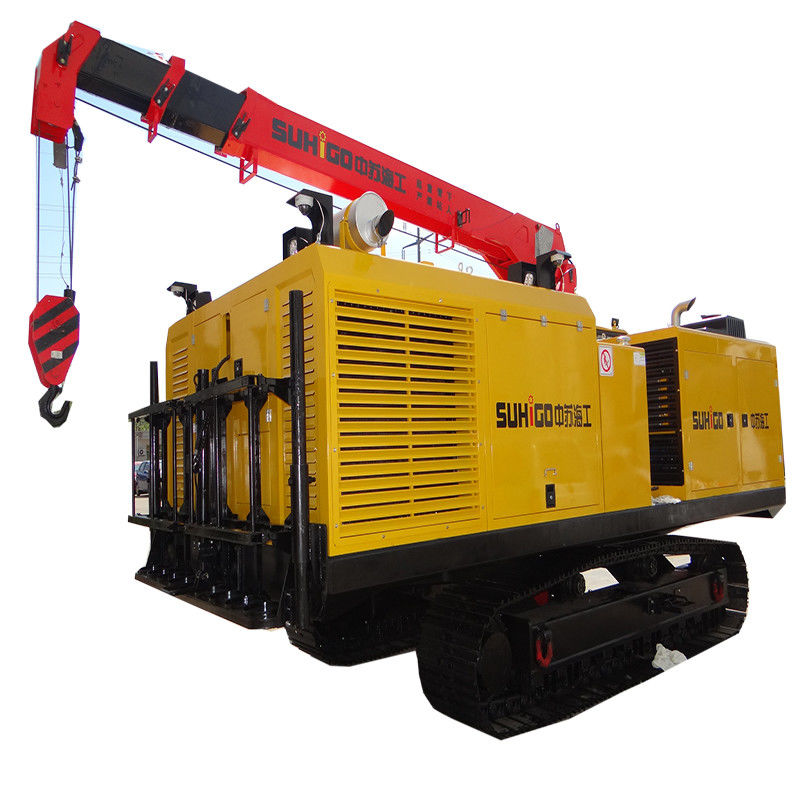

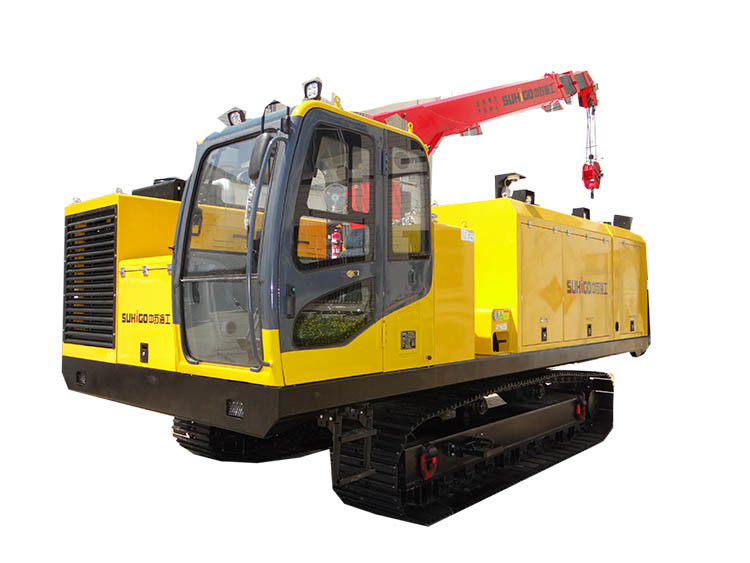

Automatic Pipeline Pay Welder Suhigo Pipeline Machines Yellow And Red 1Automatic Pipeline Pay Welder Suhigo Pipeline Machines Yellow And Red 2



Main Features of Chassis:

  • The Chassis is customized by adopting full hydraulic excavator chassis technology, and combining the working conditions of the full hydraulic mobile power station - It has solid structure, strong bearing capacity, good stability and excellent platform expansibility, avoiding the disadvantages of poor expansibility, poor bearing capacity, poor shock absorption and poor stiffness caused by the transformation of excavator chassis
  • The traveling system adopts "four wheels and one belt" and tensioning mechanism, which has strong universality and better interchangeability. 600mm three rib track shoes are used as standard.
  • Suhigo Chassis has extra one group of supporting wheels, with 7 supporting wheels on one side, which increases the grounding length and enhances the stability of the whole vehicle, especially ensures the climbing stability, improves the climbing ability and makes the driving stable and safe.
  • The minimum ground clearance 560mm, approach angle is 35 ° and departure angle is 38 °. The whole machine has good trafficability.
  • According to experience, the ship bottom structure has some defects, such as extremely inconvenient maintenance and overhaul of engine and transmission system, poor wading capacity of the whole machine due to easy bottom support, and it is very easy to store sediment and other sundries in the ship bottom, which can not be discharged, affecting the service life of the equipment.
  • Our company's products cancel the fully closed structure of the ship bottom and adopt the eight beam frame structure, Most components such as engine and transmission system are placed on the platform, which is convenient for equipment maintenance and strong wading ability, and the depth can reach 1100mm.

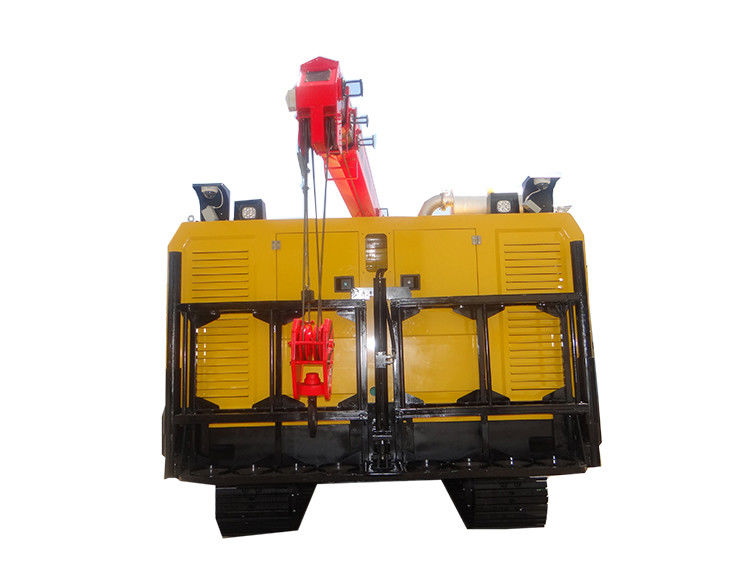

Automatic Pipeline Pay Welder Suhigo Pipeline Machines Yellow And Red 3

Hydraulic system


Undercarriage hydraulic system:
The chassis hydraulic system uses the German Rexroth load-sensitive hydraulic system with proven excavator technology and is a closed hydraulic system.

Crane hydraulic system
Crane system adopts a mature on-board lift-type valve-controlled hydraulic system. The hydraulic system consists of a gear pump, a hydraulic winch, a hydraulic cylinder, a multi-way valve and a balancing valve.

Installation of hydraulic hoses
A more reasonable design is adopted for the design and installation of hydraulic hoses. The main hydraulic components and pipelines are clear and orderly on the platform. The hydraulic components under the platform only need to remove a few bolts of the shield to facilitate maintenance. Therefore, all components of the hydraulic system of the whole vehicle can be easily repaired and maintained

Italy brand Manuli hydraulic hose
The rated bearing pressure of all pipelines is 1.5 times higher than the hydraulic working pressure. Manuli hydraulic hoses and seals produced by Italian professional technology are suitable for normal operation of the equipment under the ambient temperature of - 40 ℃ - + 50 ℃.



Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.


Automatic Pipeline Pay Welder Suhigo Pipeline Machines Yellow And Red 4



About Suhigo


  • As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  • Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.
