610mm Pipe Lifting And Lowering Equipment Roller Cradle Pipeline Construction

610mm Pipe Lifting And Lowering Equipment Roller Cradle Pipeline Construction

Roller Cradle Pipeline Construction

610mm Pipe Lifting And Lowering Equipment

610mm Roller Cradle Pipeline

Place of Origin:

Langfang, Hebei, China

Brand Name:

suhigo

Certification:

ISO-9001 CE

Model Number:

HGRC2436

Contact Us

Request A Quote
Product Details
Weight:
1500KG
Dia Of Sling:
22mm
Rollar No.:
28
Max Load:
35T
Dimension:
1*1*0.8
Pipe Size:
610-914mm
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
bargain
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

China specialist roller cradle Pipeline construction equipment steel wire rope High quality






INTRODUCTION



Pipe roller cradles often have adjustable features to accommodate pipes of different sizes and diameters. This adjustability is crucial because pipes can vary significantly in dimensions, and the cradle needs to provide a secure fit and stable support.

In addition to the rollers, pipe roller cradles may have other features such as locking mechanisms or clamps to secure the pipe in place once it is positioned. This ensures stability and prevents any unwanted movement during the handling process.

Overall, pipe roller cradles play a crucial role in enhancing safety, efficiency, and precision during pipe handling operations, making them valuable tools in various industries.





  • The Roller cradles are used in pipeline lay down operation. The rollers evenly distribute the pressure on the pipe, avoiding the risk of buckling the line pipe and preserving the coating. The use of polyurethane rollers eliminates the risk of damage the polyethylene or FBE pipe coating that can occur using regular steel wheel cradles.
  • In addition, high standard ropes made in China are provided with the cradle in order to ensure long lasting life and safe operation at site.
  • Suhigo brand roller cradles can be disassembled easily for fast site repair and maintenance and optimized storage and transport. Suhigo brand roller cradles comply with all applicable standards.

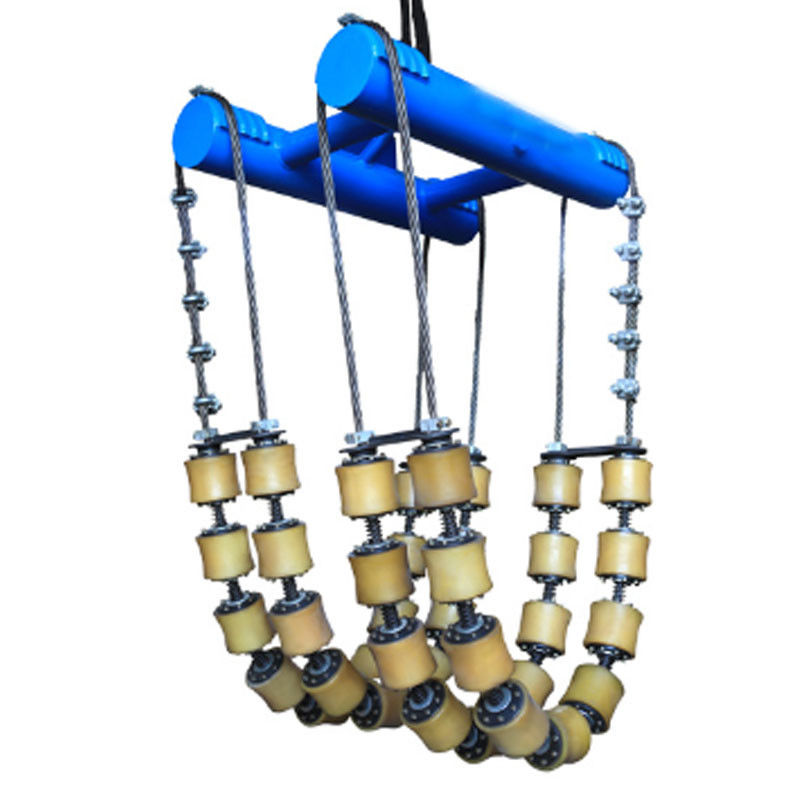

610mm Pipe Lifting And Lowering Equipment Roller Cradle Pipeline Construction 0







Technical Parameters of Suhigo roller cradle:

Model HGRC0612 HGRC1224 HGRC2436 HGRC3648 HGRC4860
Pipe Size(mm) 152~305 305~610 610~914 914~1219 1219~1524
Ambient temp(℃) -30~+70 -30~+70 -30~+70 -30~+70 -30~+70
Roller No. 28 28 28 28 28
Dia of Sling(mm) 18 22 22 30 30
Max Working Load (ton) 8 13 35 45 55
Dimension(m) 0.5x0.5x0.5 0.7x0.7x0.8 1.0x1.0x0.8 1.4x1.4x1.0 1.6x1.4x1.0
Weight(kg) 128 260 550 1100 1800



Technical Features of Suhigo roller cradle:

1) The pipe weight evenly distributed on the circumference of the steel wire rope roller

2) The roller bearing adopts NSK/SKF famous brand bearings, with large radial and axial bearing capacity

3) The roller bearing has the functions of sealing, waterproof and sand prevention

4) The roller moves flexibly to ensure that the pipe lay down smoothly

5) PU wheels provide protected pipe rolling, with better wear-resistance and longer lifetime

6) Replacement wheels readily available

7) Wire rope swaged sleeve assembly meets international standard

8) Roller cradle follow standard of CE, certificate for option

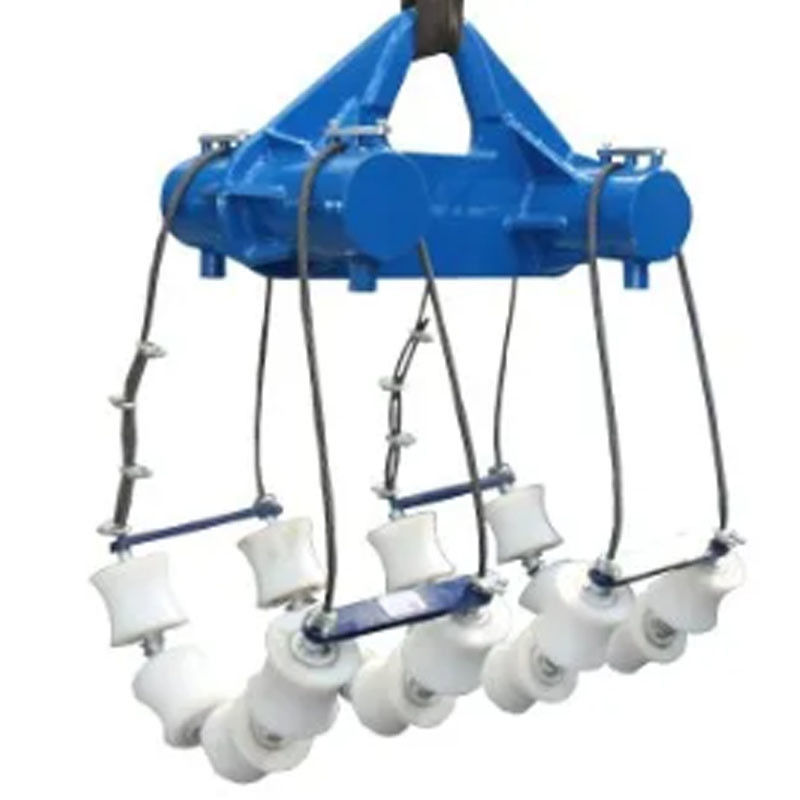

610mm Pipe Lifting And Lowering Equipment Roller Cradle Pipeline Construction 1610mm Pipe Lifting And Lowering Equipment Roller Cradle Pipeline Construction 2







About Suhigo





  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.





610mm Pipe Lifting And Lowering Equipment Roller Cradle Pipeline Construction 3





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
