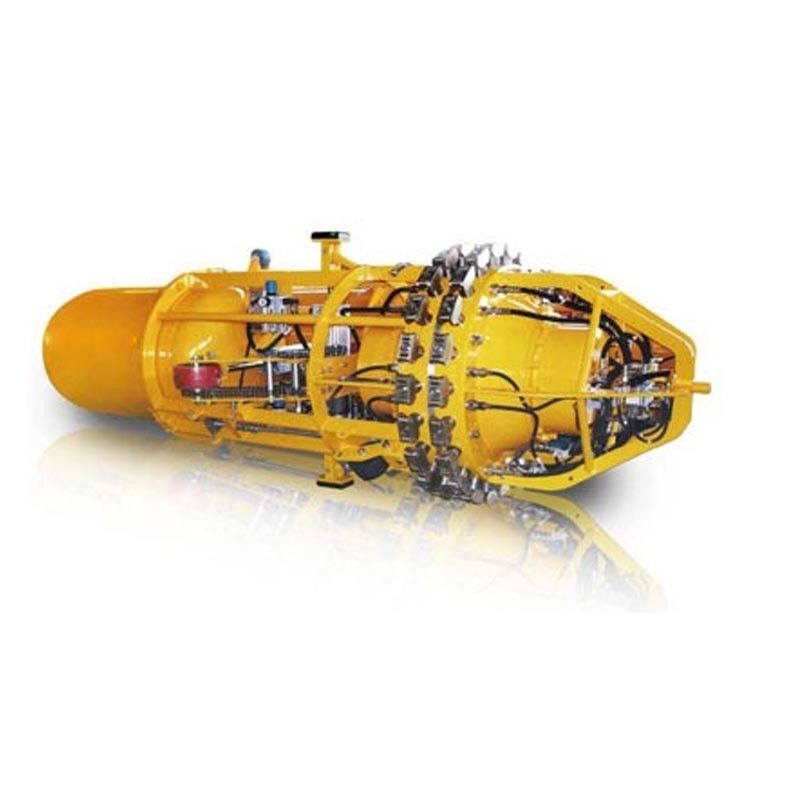

Pneumatic Controlled Automatic Welding Tool Internal Circuit Fixture

INTRODUCION

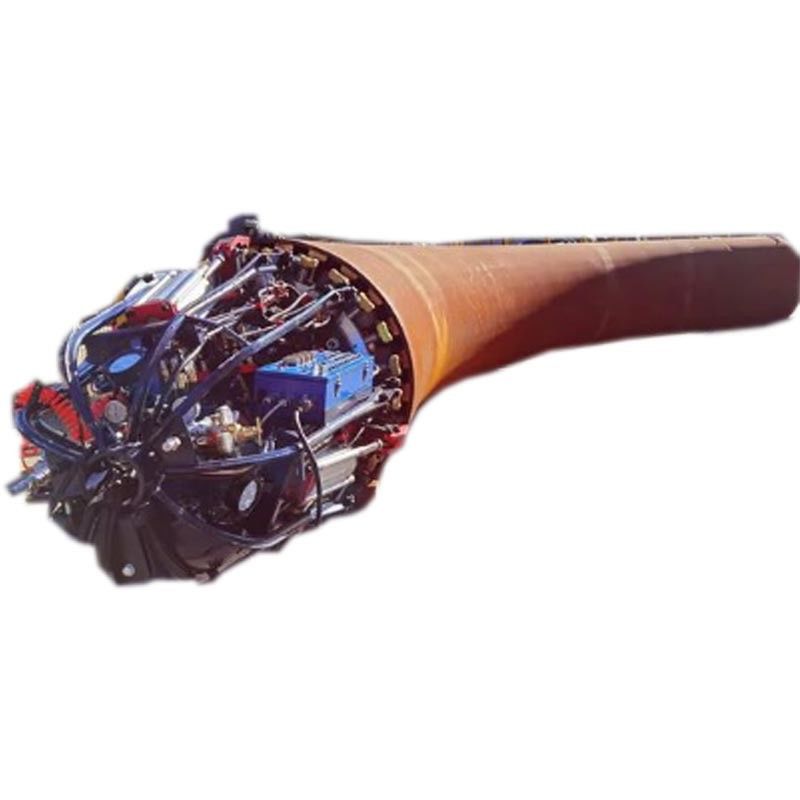

When using it for the first time, use a pipe hanger to lift the centering device into the first pipe and move it to the end of the pipe that needs to be welded, so that the rear expansion claws can rise up and support the inner wall of the pipe; Use a pipe hanger to insert the second pipe into the head of the internal alignment device, and gently pull the steel wire rope to raise the front row claws and press against the inner wall of the pipe.

Non-self-propelled Clamp (Manual Pulled)

Advantage

1. C-shaped structure, high alignment accuracy, and convenient operation.

2. High quality pneumatic composite materials. Luoyang Deping's independently patented exhaust valve design is easy to operate and has a low equipment defect rate

3. The S-shaped pin connection between the push rod and the clamping shoe is used for secure fixation effect

4. I adopted a support mechanism that converts pneumatic energy into mechanical energy, reducing the size of the machine

Self-propelled Clamp (Travels Under Its Own Power)

About Suhigo

1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
