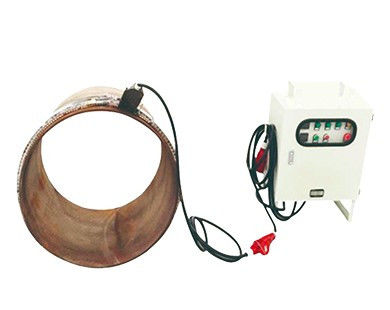

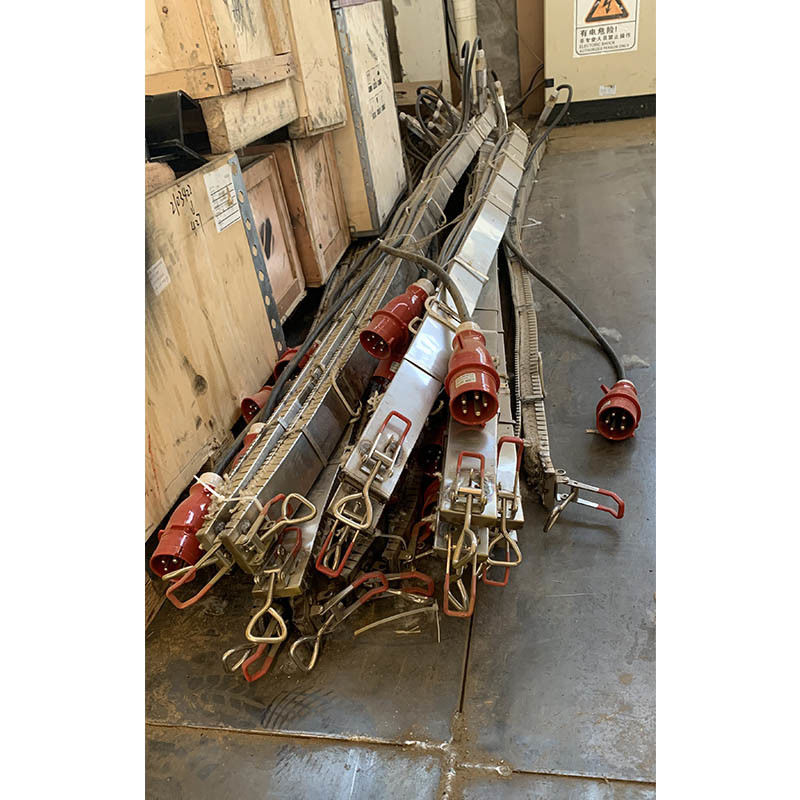

Pipeline Welding Electric Heating Strip Welding Preheat Equipment

Pipeline Welding Electric Heating Strip Welding Preheat Equipment

Pipeline Welding Electric Heating Strip

Heating Strip Welding Preheat Equipment

Pipeline Heating Strip Preheat Equipment

Place of Origin:

Langfang, Hebei, China

Brand Name:

suhigo

Certification:

ISO-9001

Contact Us

Request A Quote
Product Details
Model:
HGDB1219 (48in)
Rated Voltage:
380/220VAC
Dimension:
3820 X 70 X 21mm
Application:
Pipeline Heating
Origin:
Hebei China
Applicable Industries:
Manufacturing Factory, Construction Engineering
Type:
Belt Heater
Power Supply:
Electric
Function:
Rapid Heating
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
bargain
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

HGDB Series Pipeline Welding Junction Electric Heating Strip With High-Quality And Convenient Heating Strip




Introduce

As the temperature decreases, the resistance decreases and the cable generates more heat. Therefore, in some applications, a thermostat is not required. Even if it wraps itself (overlaps), it will not overheat or burn. It can also be cut into any length. It is a heating cable that is easy to maintain, easy to use, and energy-saving.

Model Rated Voltage Rated Power Dimension
HGDB1219 (48in) 380/220VAC 9 x 2kw 3820 x 70 x 21mm
HGDB1016 (40in) 380/220VAC 7.5 x 2kw 3180 x 70 x 21mm
HGDB914 (36in) 380/220VAC 7 x 2kw 2860 x 70 x 21mm
HGDB813 (32in) 380/220VAC 6 x 2kw 2550 x 70 x 21mm
HGDB711 (28in) 380/220VAC 4.5 x 2kw 2230 x 70 x 21mm
HGDB660 (26in) 380/220VAC 4.5 x 2kw 2070 x 70 x 21mm
HGDB610 (24in) 380/220VAC 4 x 2kw 1910 x 70 x 21mm
HGDB559 (22in) 380/220VAC 4 x 2kw 1750 x 70 x 21mm
HGDB508 (20in) 380/220VAC 3.5 x 2kw 1590 x 70 x 21mm
HGDB406 (16in) 380/220VAC 3 x 2kw 1430 x 70 x 21mm



Advantage
1. When less heat is required, energy-saving self regulating cables use less energy.
2. Easy to install, can be cut into any length on site (maximum circuit length).
3. The installation cost is lower than steam tracing, with less maintenance costs and less downtime.
4. It can be overlapped once without burning, which simplifies the heat tracing of online process equipment such as valves, elbows, and pumps.
5. Due to self-regulation, explicit conditions are minimized.
6. The connection kit can reduce installation time.
