25T Pipe Layer Wire Rope Luffing Oil And Gas Pipeline Construction

25T Pipe Layer Wire Rope Luffing Oil And Gas Pipeline Construction

25T Pipe Layer

Pipe Layer Wire Rope Luffing

Construction Pipe Layer

Place of Origin:

CHINA

Brand Name:

SUHIGO

Certification:

CE ISO

Model Number:

HGY25

Contact Us

Request A Quote
Product Details
Application:
Oil And Gas Pipeline, Structure Pipe
Product Name:
PipeLayer
Model:
HGY25
Size:
4135×3050×3245mm
Transmission:
Hydraulic-Mechanical Transmission
Applicable Temperature:
-45℃~+60℃
Port:
Shanghai, Tianjin, Qingdao
Color:
Red Black Yellow
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
5-8 work days
Payment Terms
T/T, L/C
Product Description

Product Description:

Our HGY25 Pipe Layer is a Mobile type Tracked Construction Machinery. It measures 4135×3050×3245mm, making it compact and easy to maneuver in tight spaces. The machine is built to withstand extreme temperatures, with an applicable temperature range of -45℃~+60℃. Whether you're working in the freezing cold or scorching heat, our machine will get the job done.

Our Pipeline Construction Machinery is designed to make laying pipes easier and more efficient. The HGY25 Pipe Layer is equipped with a range of features that make it the ideal choice for pipeline construction projects. The machine's Planetary Gears provide smooth and reliable power transfer, while the Forced Lubrication Power Shift ensures that the machine is always operating at peak efficiency.

Our Pipe Laying Machines are also designed with safety in mind. The HGY25 Pipe Layer is equipped with a range of safety features, including a ROPS (Roll Over Protection System) and FOPS (Falling Object Protection System). These features help to protect operators and ensure that the machine is always operating safely and efficiently.

At our company, we pride ourselves on providing high-quality Pipeline Construction Machinery that meets the needs of our customers. Our HGY25 Pipe Layer is excellent. With its durable construction, efficient design, and reliable performance, our machine is the perfect choice for pipeline construction projects of all sizes. Contact us today to learn more about our Pipe Laying Machines and how they can help you get the job done.

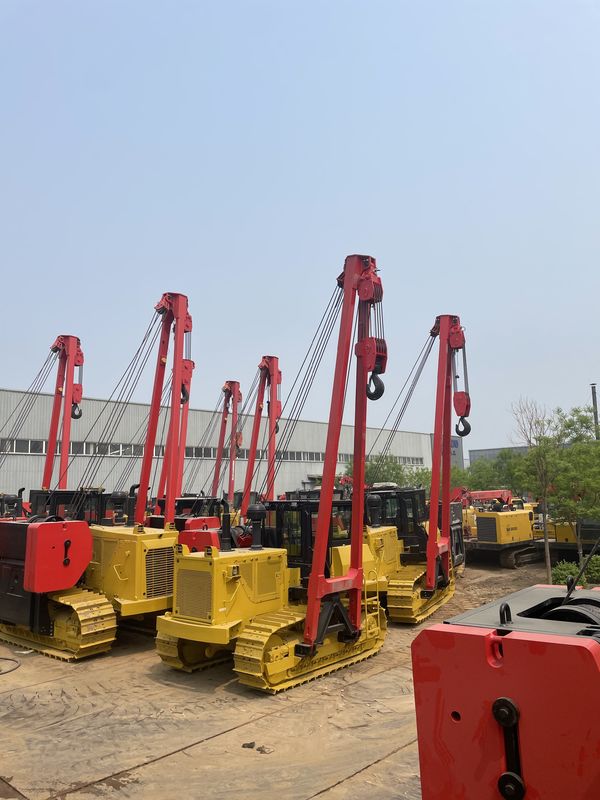

25T Pipe Layer Wire Rope Luffing Oil And Gas Pipeline Construction 0

Features:

1. The high-strength pipelayer special chassis adopts large gauge design to improve the stability of the whole machine
2.Torque limit system with full function, to ensure lifting safety and adopts full hydraulic transmission, with good performance
3. National III emission engine, saving fuel and better environmental protection

4.Working device adopts hydraulic transmission, operated handle , the transmission efficiency is high, and the work is stable. It is an international popular pipelayer configuration.



Technical Parameters:



Device model HGY25 HGY45 HGY70 HGY90 HGY105

Maximum

Lifting Capacity t

25 45 70 90 105
quality (approx.) t 22 35 49 55 62
Host transport size mm 4135×3050×3245 4750×3350×3270 5630×3400×3540 5630×3436×3540 6045×4120×3980
host transport quality t 18.5 26 37.5 38.9 42.5

Minimum ground clearance

mm

480 490 550 550 575
gauge mm 2050 2250 2380 2490 2550
Track shoe width mm 560 660 760 860 860
engine WEICHAI CUMMINS CUMMINS CUMMINS CUMMINS
power/speed kW /rpm 120/1850 169/ 2000 257/2000 257/2000 310/2000
Arm lengt(customizable)mm 6000 7500 8600 9600 9600


Applications:

The HGY25 Pipe Layer is perfect for use in extreme weather conditions as it can operate in temperatures ranging from -45℃ to +60℃. The machinery is designed for oil and gas pipeline construction and is particularly useful in the laying of large diameter pipelines.

This pipeline construction machinery is versatile and can be used for both onshore and offshore pipeline construction projects. Its mobility and flexibility make it a valuable asset for pipeline construction companies. The product has a minimum order quantity of 1 piece and the price is negotiable.

The HGY25 Pipe Layer is painted in a bright yellow color for high visibility and can be easily tracked during operation. The product is packaged using seaworthy integral wax spraying anti-corrosion to ensure that it is protected during transportation.

The payment terms for this pipeline laying machine include T/T and L/C. The product is suitable for use in a variety of pipeline construction scenarios such as laying pipelines in remote areas, mountainous terrain, and other challenging locations.

This pipe laying machine is a valuable investment for any pipeline construction company. Its mobility, versatility, and durability make it a must-have for any pipeline construction project. Contact us today to order your Suhigo HGY25 Pipe Layer.

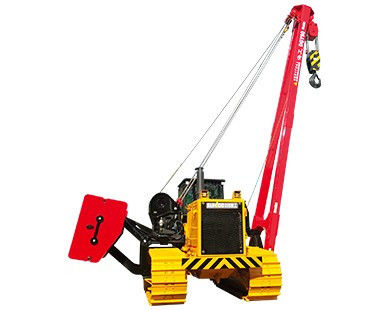

25T Pipe Layer Wire Rope Luffing Oil And Gas Pipeline Construction 1

Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
