380VAC Infrared Welder Pipe Heating Machine 100Kw - 120Kw Power

380VAC Infrared Welder Pipe Heating Machine 100Kw - 120Kw Power

380VAC Infrared Welder

380VAC Pipe Heating Machine

Infrared Pipe Heating Machine

Place of Origin:

Langfang, Hebei, China

Brand Name:

suhigo

Certification:

ISO-9001

Model Number:

HGYJ20

Contact Us

Request A Quote
Product Details
Name:
Pipe Heating Machine
Origin:
Hebei, China
Dimension:
1110 X 960 X 1000mm
Weight:
95kg
Applicable Temp:
-45~60℃
Input Voltage:
380VAC
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
bargain
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

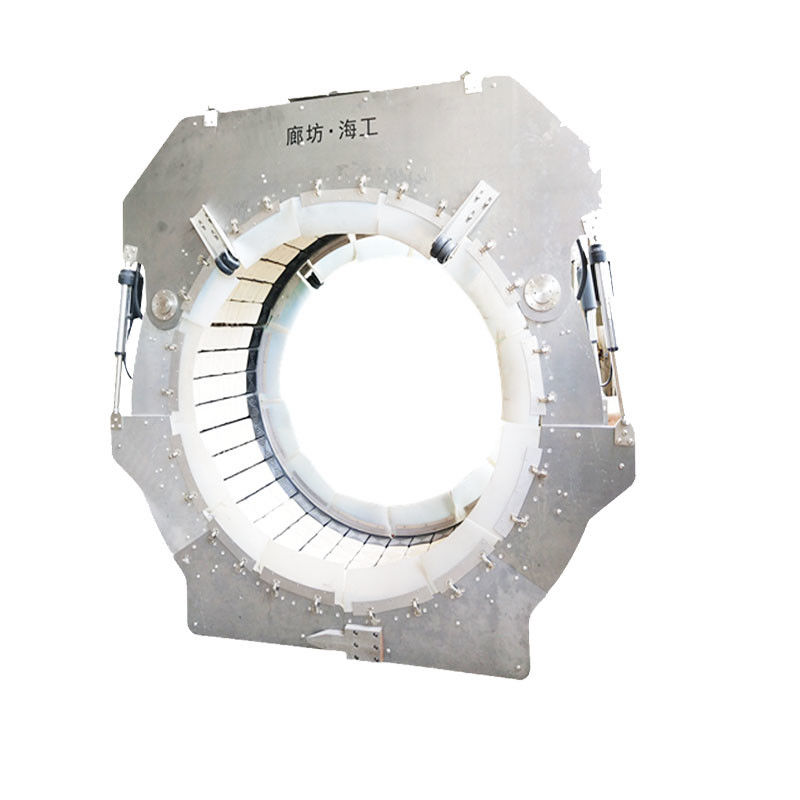

Infrared Welding Machine




INTRODUCTION



HGYJ series infrared heater uses the principle of infrared radiation heating to realize the automatic shrinkage and tempering operation of heat shrinkable belt. Due to the technical requirements of the heat shrinkable belt, HGYJ series far-infrared heaters adopt electric control technology to heat in sections and gradually heat from the center to the outside, so that the heat shrinkable belt can be evenly attached to the pipe wall without bubbles.



380VAC Infrared Welder Pipe Heating Machine 100Kw - 120Kw Power 0

  • This equipment is used to heat shrink and temper the heat shrinkable tape to meet the needs of the construction of the pipe shrinkable tape.
  • The equipment uses the principle of infrared radiation heating to realize the automatic shrinkage and tempering of the heat shrinkable tape.
  • Due to the technical requirements of the heat-shrinkable tape, the far-infrared heater adopts electric control technology to heat in sections, gradually heating from the center to the outside,
  • Make the heat shrinkable tape stick to the pipe wall evenly, without bubbles and other phenomena.







Model

Dimensions

(L X W X H)

Weight proper temperature Input voltage Applicable diameter Max Power
HGYJ20 1110 x 960 x 1000mm 95kg -45~60℃ 380VAC 508mm 100kw
HGYJ24 1200 x 960 x 1100mm 110kg -45~60℃ 380VAC 610mm 100kw
HGYJ28 1300 x 960 x 1200mm 118kg -45~60℃ 380VAC 711mm 100kw
HGYJ30 1400 x 960 x 1300mm 127kg -45~60℃ 380VAC 762mm 100kw
HGYJ32 1500 x 960 x 1400mm 150kg -45~60℃ 380VAC 813mm 100kw
HGYJ34 1610 x 960 x 1550mm 160kg -45~60℃ 380VAC 864mm 120kw
HGYJ36 1700 x 960 x 1600mm 175kg -45~60℃ 380VAC 914mm 120kw





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
