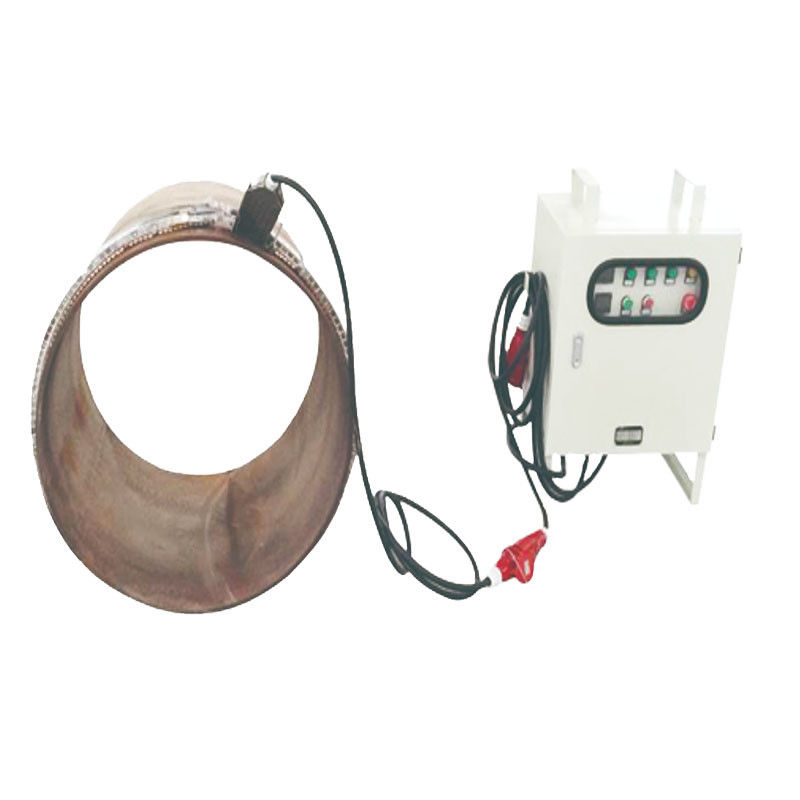

Trace Heating System heating belt trace heating
HGDB series pipeline welded junction electric heating belt is suitable for manual welding, semi-automatic or automatic welding of steel pipelines. For separate operations such as repair joint, the electric heating belt can also be used to ensure the stability of heating temperature.
HGDB Series electric heating belt can make the pipe welded junction heat up rapidly in a short time in the process preparation stage. After the pipe welding starts, the heating can continue to operate at the same time without affecting all welding processes. It can meet the requirements of preheating, heating and maintaining interlayer welding temperature in manual, semi-automatic or automatic assembly line welding process.
The electric heating belt has the advantages of simple operation, fast temperature rise, ensuring welding quality, saving energy and cost.
Technical Parameters of HGDB Electric Heating Belt:
| Model | Rated Voltage | Rated Power | Dimension |
| HGDB1219 (48in) | 380/220VAC | 9 x 2kw | 3820 x 70 x 21mm |
| HGDB1016 (40in) | 380/220VAC | 7.5 x 2kw | 3180 x 70 x 21mm |
| HGDB914 (36in) | 380/220VAC | 7 x 2kw | 2860 x 70 x 21mm |
| HGDB813 (32in) | 380/220VAC | 6 x 2kw | 2550 x 70 x 21mm |
| HGDB711 (28in) | 380/220VAC | 4.5 x 2kw | 2230 x 70 x 21mm |
| HGDB660 (26in) | 380/220VAC | 4.5 x 2kw | 2070 x 70 x 21mm |
| HGDB610 (24in) | 380/220VAC | 4 x 2kw | 1910 x 70 x 21mm |
| HGDB559 (22in) | 380/220VAC | 4 x 2kw | 1750 x 70 x 21mm |
| HGDB508 (20in) | 380/220VAC | 3.5 x 2kw | 1590 x 70 x 21mm |
| HGDB406 (16in) | 380/220VAC | 3 x 2kw | 1430 x 70 x 21mm |
