Yellow 70T Crawler Pipelayer With Luffing Hydraulic Winch System

Yellow 70T Crawler Pipelayer With Luffing Hydraulic Winch System

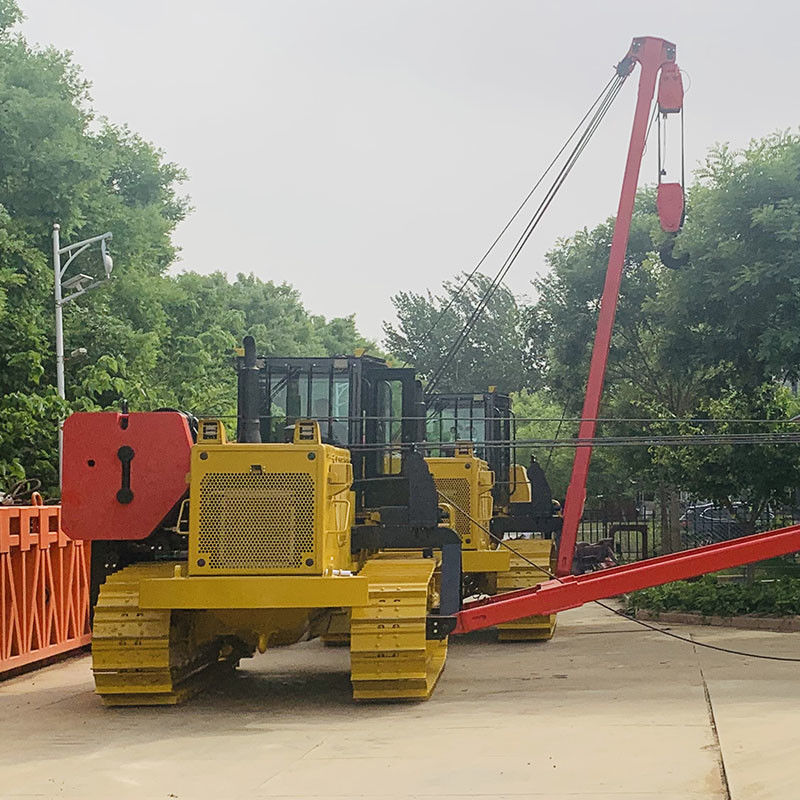

Yellow 70T Crawler Pipelayer

Hydraulic Winch Crawler Pipelayer

Yellow 70T Pipelayer

Place of Origin:

China

Brand Name:

Suhigo

Certification:

CE

Model Number:

HGY70

Contact Us

Request A Quote
Product Details
Product Name:
HGY70 Pipe Layer
Mobile Type:
Tracked Construction Machinery
Applicable Temperature:
-45℃~+60℃
Applicable Industries:
Farms, Retail, Construction Works , Energy & Mining
Color:
Yellow And Red
Transmission:
Planetary Gears, Forced Lubrication Power Shift
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

Made In China Crawler Pipe Layer Large Pipe Hanger HGY Series




Itroduction

1. The chassis of the pipelayer adopt Komatsu technology to increase the torque design and improve the stability .
2. With high quality roller and good quantity rollers, enhance the bearing capacity and long service life of the equipment.



The hydraulic lifting and luffing hydraulic winch system selected by HGY70 hydraulic crawler pipelayer is mainly composed of hydraulic motor, hydraulic normally closed multi-plate brake, planetary gearbox, clutch, reel, support shaft, frame and so on. The hydraulic motor has high mechanical efficiency and large starting torque, and a balance valve is integrated on the distributor. Brakes, gearboxes, clutches, etc. are directly installed in the reel. The extremely high volumetric efficiency of the hydraulic motor and the high-quality balance valve solve the phenomenon of secondary sliding of the winch and vibration of the empty hook. The clutch attached to the hook winch realizes the free-falling hook function.



Model HGY70
Moving system Operation

Operating lever



speed Forward (2) 3.6/6.6 km/h
Reverse (2) 4.4/7.8 km/h
Track grounding length 3620mm
Track width 760mm
Number of rollers 9×2
Lifting system Variable form Wire rope luffing
Operation method Hydraulic control handle



Boom

Boom length 7600/8600mm
Lifting height 6100/7050mm
Boom angle 0~86°
Hook speed (6-8 times rate) 0~7.0 m/min
Amplitude time (4-5 times) 32s



Feature

The lifting system adopts open hydraulic transmission with gear pump oil supply with strong anti pollution ability and self-priming ability, with stable transmission, stepless speed change, good micro motion performance and strong adaptability.
The lifting hook and boom luffing are controlled by hydraulic winch, and the counterweight retraction and release are controlled by hydraulic oil cylinder, which meets the requirements for efficiency and accuracy during pipe crane operation.
The boom is welded with HG60 high-strength steel, with light weight and high strength.



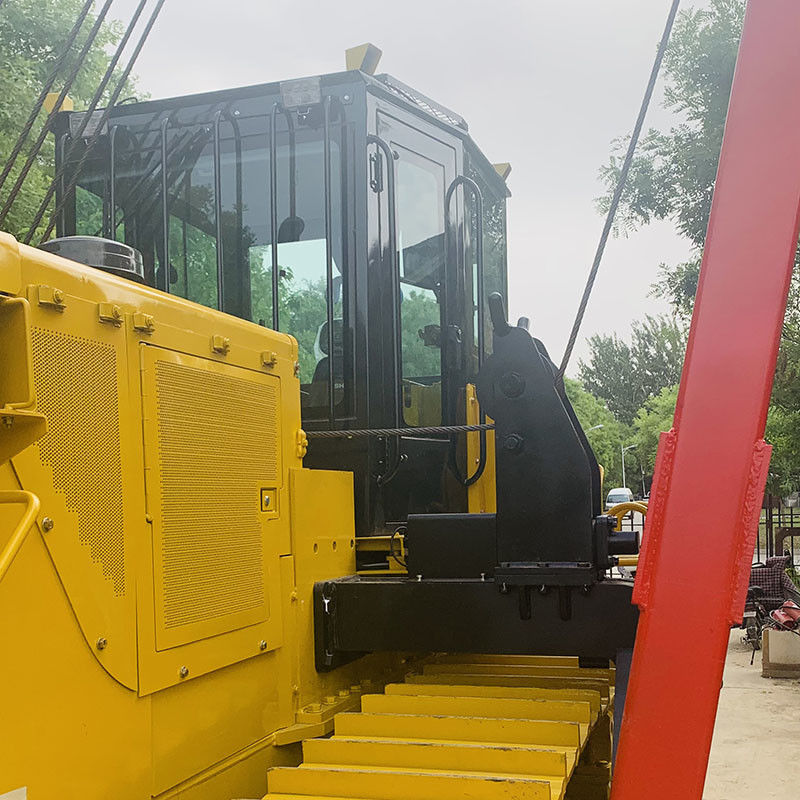

Yellow 70T Crawler Pipelayer With Luffing Hydraulic Winch System 0

Yellow 70T Crawler Pipelayer With Luffing Hydraulic Winch System 1







About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



Yellow 70T Crawler Pipelayer With Luffing Hydraulic Winch System 2

Yellow 70T Crawler Pipelayer With Luffing Hydraulic Winch System 3

Yellow 70T Crawler Pipelayer With Luffing Hydraulic Winch System 4





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
