pneumatic hydraulic internal fitup clamp 26inch welding alignment clamp
Introduction

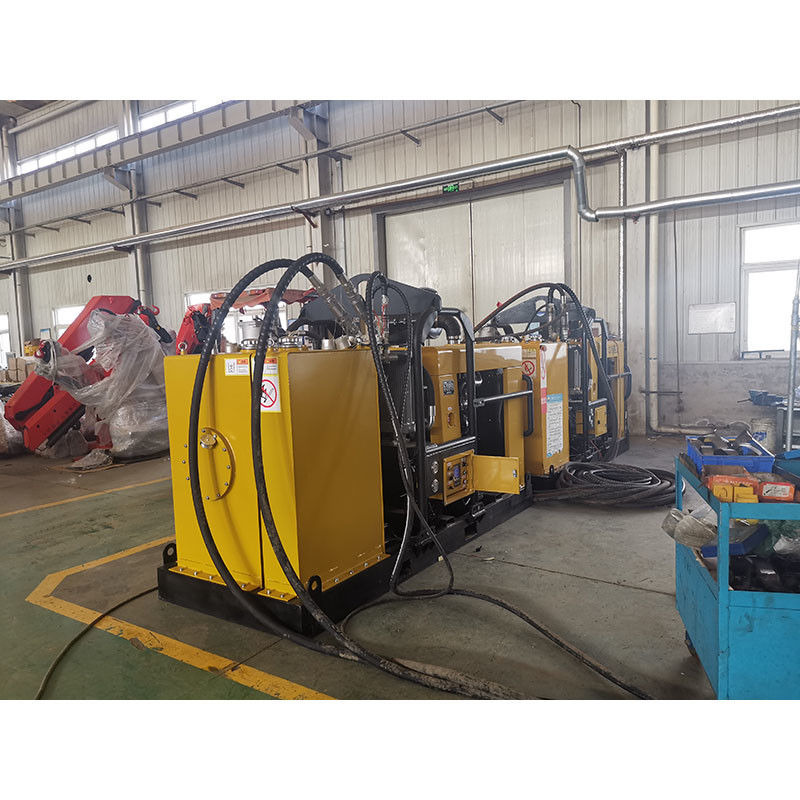

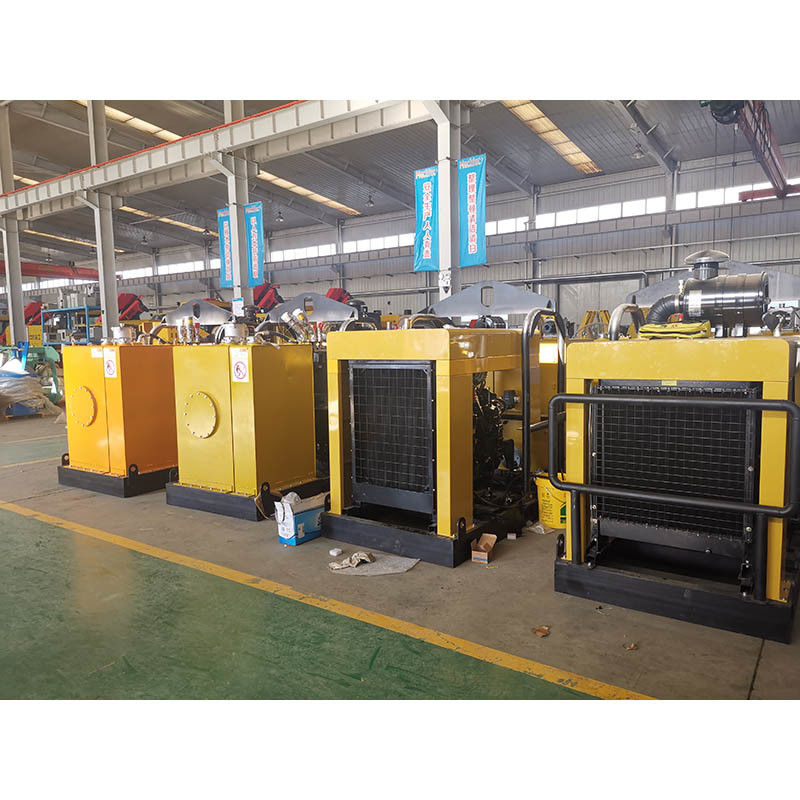

Facing machine is a special pipe orifice processing equipment for long distance pipeline construction. It can process any kinds of bevels quickly to meet different welding craft demands, instead of manual beveling to get higher efficiency. It is also a necessary matching tool for internal welding or fully automatic welding. Electrical engine power unit is also special designed for offshore pipeline construction, which can reduce pollution for vessel cabin.
Feature
1.The Internal Pneumatic Line-Up Clamp is for pipe laying barge and onshore project use.
2.The pneumatic Internal line-up clamp is specially for aligning pipes before pipeline welding process,large range from 6" to 80", FESTO Valve, Ingersoll or German COOPER drive motor and optimal design proved its best on site performance on offshore pipe laying barge and onshore project.
3. Copper back up shoes system would be equipped in internal line-up clamp for automatic welding system.
4. Purge system for argon welding can equipped in the internal line up clamp for CRA pipeline project.
5.Internal line up clamp which is pneumatic controlled for clamp shoe expanding / retract and electrical valve for motion control, is popular in offshore pipe laying.
6.There are also self-propelled and self-braking settings for Internal Pipe Alignment Clamp DKQ406 and above models,traveling speed:0-1M/S.
Technical Parameters of Suhigo Pipe Facing Machine:
Model | Pipe Size | Piston No.s | Piston Power | L | W | H | Weight | Cube |
(mm) | (KN) | (mm) | (mm) | (mm) | (kg) | (m3) | ||
HGDNQ6’’ | 168 | 6X2 | 134 | 1473 | 150 | 150 | 36 | .04 |
HGDNQ8’’ | 219 | 6X2 | 209 | 1593 | 189 | 189 | 53 | .06 |
HGDNQ10’’ | 273 | 6X2 | 382 | 1665 | 240 | 240 | 60 | .09 |
HGDNQ12-14’’ | 305-357 | 6X2 | 405 | 1751 | 280 | 280 | 100 | .14 |
Self-propelled Clamp (Travels Under Its Own Power)
Model | Pipe Size | Piston No.s | Piston Power | Motor Power | Motor Nos. | L | W | H | Weight | Cube |
(mm) | (KN) | (hp) | (mm) | (mm) | (mm) | (kg) | (m3) | |||
HGDNQ16-18’’ | 406-457 | 8x2 | 959 | 1 | 1 | 2132 | 360 | 360 | 188 | .29 |
HGDNQ20-22’’ | 508-559 | 10x2 | 1057 | 1.5 | 1 | 2434 | 480 | 480 | 296 | .59 |
HGDNQ22-24’’ | 559-610 | 12x2 | 1268 | 1.5 | 1 | 2500 | 530 | 530 | 390 | .72 |
HGDNQ24-26’’ | 610-660 | 12x2 | 1268 | 1.5 | 1 | 2672 | 580 | 580 | 418 | .90 |
HGDNQ28-30’’ | 711-762 | 12x2 | 1748 | 1.5 | 1 | 2700 | 670 | 670 | 512 | 1.2 |
HGDNQ30-32’’ | 762-813 | 14x2 | 2937 | 3 | 1 | 2938 | 690 | 690 | 733 | 1.4 |
HGDNQ34-36’’ | 864-914 | 16x2 | 2937 | 3 | 1 | 3020 | 790 | 790 | 779 | 1.8 |
HGDNQ36-38’’ | 914-965 | 18x2 | 2937 | 3 | 1 | 3188 | 860 | 860 | 865 | 2.4 |
HGDNQ40-42’’ | 1016-1067 | 20x2 | 2937 | 3 | 1 | 3029 | 980 | 980 | 982 | 3.0 |
HGDNQ46-48’’ | 1168-1219 | 20x2 | 4855 | 3 | 1 | 3100 | 1050 | 1050 | 1420 | 3.7 |
HGDNQ48-50’’ | 1219-1270 | 22x2 | 4855 | 3 | 2 | 3517 | 1120 | 1120 | 1876 | 5.2 |
HGDNQ52-54’’ | 1321-1372 | 22x2 | 4855 | 3 | 2 | 3520 | 1210 | 1210 | 1988 | 5.4 |
HGDNQ56’’ | 1422 | 22x2 | 4855 | 3 | 2 | 3500 | 1310 | 1310 | 2187 | 6.6 |
HGDNQ60’’ | 1524 | 22x2 | 4855 | 3 | 2 | 3500 | 1310 | 1310 | 2187 | 6.6 |
HGDNQ62-66’’ | 1574-1676 | 24x2 | 4855 | 3 | 2 | 3864 | 1557 | 1557 | 2887 | 10.0 |
HGDNQ68-72’’ | 1727-1727 | 24x2 | 4855 | 3 | 2 | 3864 | 1557 | 1557 | 2887 | 10.0 |
HGDNQ76-80’’ | 1930-2032 | 30x2 | 4855 | 3 | 2 | 4000 | 1800 | 1800 | 3855 |
13.0 |
