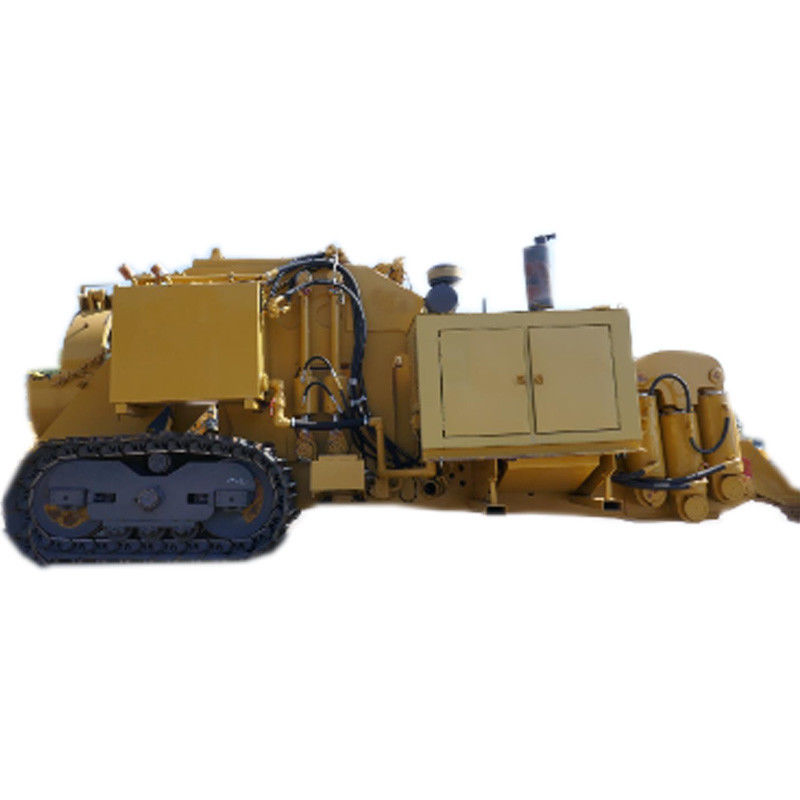

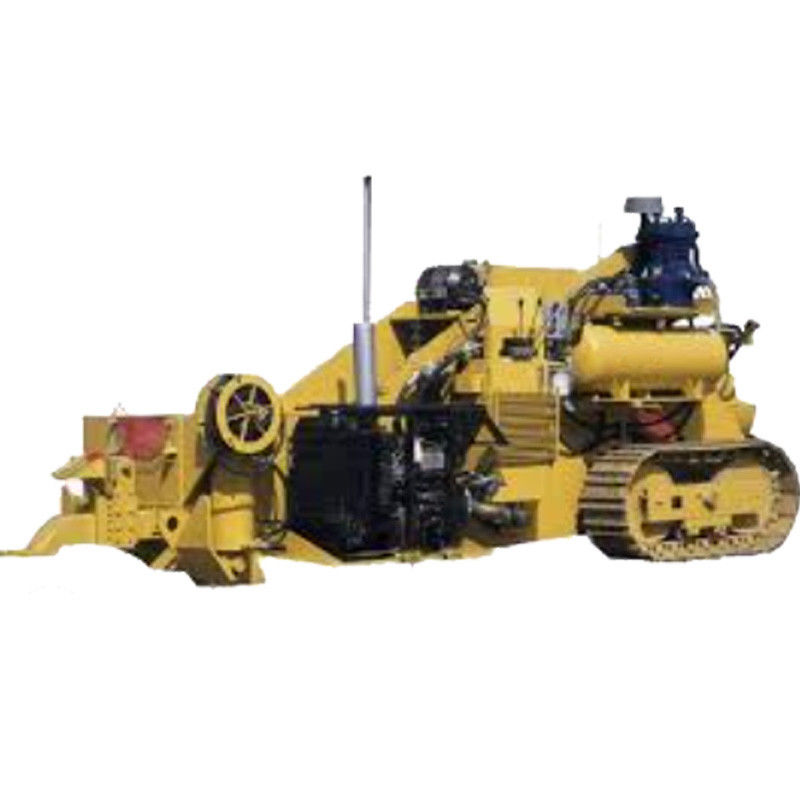

Inclined Block Mandrel Pipe Bender Mandrel Pipe Bending Machine For Pipeline

Inclined Block Mandrel Pipe Bender Mandrel Pipe Bending Machine For Pipeline

Inclined Block Mandrel Pipe Bender

Inclined Block Mandrel Pipe Bending Machine

Pipeline Mandrel Pipe Bending Machine

Place of Origin:

China

Brand Name:

Suhigo

Certification:

ISO-9001 CE

Model Number:

HGCB4856

Contact Us

Request A Quote
Product Details
Application:
Pipeline Construction Machinery
Engine Power:
160kw
Machine Type:
Pipe Bending Machine
Applicable Industries:
Manufacturing Factory, Construction Engineering
Hydraulic Winch Tension:
12 Ton
Weight:
93 Tons
Lift Cylinder:
4-280x200mm
Core Components:
Motor, Pump, Engine
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

HGCB Series Pipeline Construction Pipe Bending Machine, Hydraulic Pipe Bending Machine

INTRODUCTION

The inclined block mandrel is suitable for the manufacture of 16 "~ 60" pipe bender. It realizes the expansion function through the relative movement of the inclined block, provides constraints for the pipe wall and prevents the deformation of bending pipe. At the same time, through its self-propelled function, it can realize the flexible movement of mandrel in the steel pipe.



Technical Parameters of Suhigo Bening Machine:

Model HGCB620 HGCB1630 HGCB2236 HGCB2840 HGCB3648 HGCB4856
Pipe Size 6~20in 16~30in 22~36in 28~40in 36~48in 48~56in
Engine Power 46kw 77kw 118kw 132kw 160kw 160kw
Master cylinder 2-220x160mm 2-280x200mm 4-320x230mm 4-360x250mm 4-450x560mm 4-360x560mm
Lift cylinder 2-180x63mm 2-200x80mm 4-220x90mm 4-250x100mm 4-280x200mm 4-280x200mm
Hydraulic winch tension 1.5 ton 3 ton 7 ton 7 ton 8 ton 12 ton
Dimension 4450x2180x2175mm 6700x2520x2700mm 8400x3000x2800mm 8850x3180x3000mm 9800x3335x3235mm 8566x3190x3500mm
Weight 10 tons 21 tons 42 tons 50 tons 68 tons 93 tons

Technical Features of Suhigo Bening Machine:

1) The pipe bending operation can be carried out for pipes of different sizes within the scope of application of the pipe bending machine only by replacing the pipe bending die kit and the corresponding mandrel, the replacement is simple and convenient.

2) The whole machine has simple and reasonable structure and easy maintenance. The steel frame made of high-strength steel has long service life and excellent low temperature resistance.

3) Traction crawler walking device or wheel walking device (both are optional) is suitable for field operation, can be selected to the actual working environment.

Inclined Block Mandrel Pipe Bender Mandrel Pipe Bending Machine For Pipeline 0

Model Drive Power Operation Pressure Total extend power Stroke Dimension Weight
HGYN8-10 - - 16Mpa 400KN 30mm 1500x240x240mm 100kg
HGYN12-14 - - 16Mpa 800KN 50mm 2000x200x220mm 320kg
HGYN16-18 Hydraulic Motor x 1 3hp 16Mpa 1147KN 80mm 2406x310x316mm 600kg
HGYN20-22 Hydraulic Motor x 1 3hp 16Mpa 1147KN 80mm 2406x437x414mm 640kg
HGYN22-24 Hydraulic Motor x 1 7hp 16Mpa 1147KN 80mm 2600x400x440mm 950kg
HGYN24-26 Hydraulic Motor x 1 7hp 16Mpa 1147KN 80mm 2600x400x490mm 1000kg
HGYN28-30 Hydraulic Motor x 2 20hp 16Mpa 1562KN 100mm 3000x500x580mm 1800kg
HGYN30-32 Hydraulic Motor x 2 20hp 16Mpa 1562KN 130mm 3000x500x710mm 2300kg
HGYN34-36 Hydraulic Motor x 2 20hp 16Mpa 1562KN 130mm 3500x580x680mm 2500kg
HGYN36-38 Hydraulic Motor x 2 20hp 16Mpa 2040KN 150mm 3500x580x730mm 2600kg
HGYN40-42 Hydraulic Motor x 2 20hp 16Mpa 2040KN 150mm 3600x710x810mm 2700kg
HGYN46-48 Hydraulic Motor x 2 20hp 16Mpa 2040KN 150mm 3600x780x950mm 2900kg
HGYN48-50 Hydraulic Motor x 2 32hp 16Mpa 3188KN 170mm 3800x850x950mm 3200kg
HGYN52-54 Hydraulic Motor x 2 32hp 16Mpa 3857KN 170mm 3800x850x1100mm 3600kg
HGYN56 Hydraulic Motor x 2 32hp 16Mpa 3857KN 170mm 3800x980x1170mm 4000kg
HGYN60 Hydraulic Motor x 2 32hp 16Mpa 4981KN 170mm 4000x980x1250mm 4300kg





About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



HGY Series High-Strength Side Arm Crawler Pipe Oil Equipment Sold For Pipeline Construction 1

HGY Series High-Strength Side Arm Crawler Pipe Oil Equipment Sold For Pipeline Construction 2

HGY Series High-Strength Side Arm Crawler Pipe Oil Equipment Sold For Pipeline Construction 3





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
