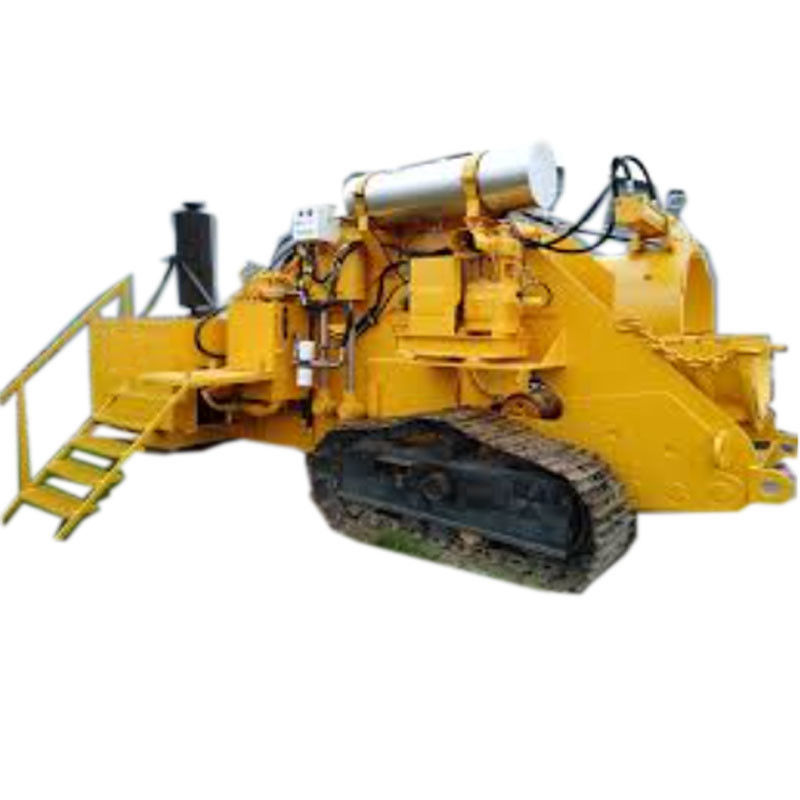

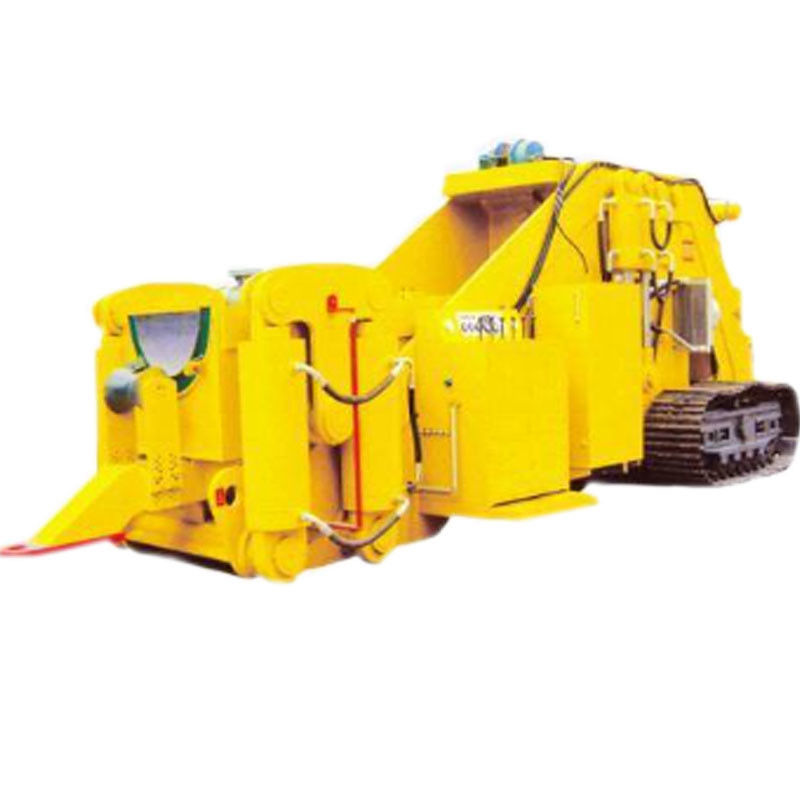

The pipe bending machine is composed of steel frame, lower mold, upper mold, fixture, hydraulic system and mandrel. Its working principle is to make the steel pipe plastic deformation and realize the cold bending of the steel pipe by determining the reasonable fulcrum and stress point and applying bending torque. During bending operation, various large-diameter steel pipes within the applicable range can be cold bent by replacing the die kit and corresponding mandrel.
Technical Parameters of Suhigo Bening Machine:
| Model | HGCB620 | HGCB1630 | HGCB2236 | HGCB2840 | HGCB3648 | HGCB4856 |
| Pipe Size | 6~20in | 16~30in | 22~36in | 28~40in | 36~48in | 48~56in |
| Engine Power | 46kw | 77kw | 118kw | 132kw | 160kw | 160kw |
| Master cylinder | 2-220x160mm | 2-280x200mm | 4-320x230mm | 4-360x250mm | 4-450x560mm | 4-360x560mm |
| Lift cylinder | 2-180x63mm | 2-200x80mm | 4-220x90mm | 4-250x100mm | 4-280x200mm | 4-280x200mm |
| Hydraulic winch tension | 1.5 ton | 3 ton | 7 ton | 7 ton | 8 ton | 12 ton |
| Dimension | 4450x2180x2175mm | 6700x2520x2700mm | 8400x3000x2800mm | 8850x3180x3000mm | 9800x3335x3235mm | 8566x3190x3500mm |
| Weight | 10 tons | 21 tons | 42 tons | 50 tons | 68 tons | 93 tons |
Technical Features of mandrel:
1) Base mandrel can be converted to a larger size by using the conversion kit.
2) Self-propelled available from 16"to 60'
3) Polyurethane coated backing bars and wheels to protect internally coated pipe.
4) Simple design and few parts results in low maintenance cost
5) One man operation for expanding, retracting and traveling.
6) Double angle hardened steel wedges provide fast approach and powerful locking action.
7) Wedges will accommodate several wall thicknesses without changing shims
8) Uses the hydraulic system of the pipe bending machine for power.
9) Tapered wheels eliminate rolling.
| Model | Drive | Power | Operation Pressure | Total extend power | Stroke | Dimension | Weight |
| HGYN8-10 | - | - | 16Mpa | 400KN | 30mm | 1500x240x240mm | 100kg |
| HGYN12-14 | - | - | 16Mpa | 800KN | 50mm | 2000x200x220mm | 320kg |
| HGYN16-18 | Hydraulic Motor x 1 | 3hp | 16Mpa | 1147KN | 80mm | 2406x310x316mm | 600kg |
| HGYN20-22 | Hydraulic Motor x 1 | 3hp | 16Mpa | 1147KN | 80mm | 2406x437x414mm | 640kg |
| HGYN22-24 | Hydraulic Motor x 1 | 7hp | 16Mpa | 1147KN | 80mm | 2600x400x440mm | 950kg |
| HGYN24-26 | Hydraulic Motor x 1 | 7hp | 16Mpa | 1147KN | 80mm | 2600x400x490mm | 1000kg |
| HGYN28-30 | Hydraulic Motor x 2 | 20hp | 16Mpa | 1562KN | 100mm | 3000x500x580mm | 1800kg |
| HGYN30-32 | Hydraulic Motor x 2 | 20hp | 16Mpa | 1562KN | 130mm | 3000x500x710mm | 2300kg |
| HGYN34-36 | Hydraulic Motor x 2 | 20hp | 16Mpa | 1562KN | 130mm | 3500x580x680mm | 2500kg |
| HGYN36-38 | Hydraulic Motor x 2 | 20hp | 16Mpa | 2040KN | 150mm | 3500x580x730mm | 2600kg |
| HGYN40-42 | Hydraulic Motor x 2 | 20hp | 16Mpa | 2040KN | 150mm | 3600x710x810mm | 2700kg |
| HGYN46-48 | Hydraulic Motor x 2 | 20hp | 16Mpa | 2040KN | 150mm | 3600x780x950mm | 2900kg |
| HGYN48-50 | Hydraulic Motor x 2 | 32hp | 16Mpa | 3188KN | 170mm | 3800x850x950mm | 3200kg |
| HGYN52-54 | Hydraulic Motor x 2 | 32hp | 16Mpa | 3857KN | 170mm | 3800x850x1100mm | 3600kg |
| HGYN56 | Hydraulic Motor x 2 | 32hp | 16Mpa | 3857KN | 170mm | 3800x980x1170mm | 4000kg |
| HGYN60 | Hydraulic Motor x 2 | 32hp | 16Mpa | 4981KN | 170mm | 4000x980x1250mm | 4300kg |
