Place of Origin:
Langfang, Hebei, China
Brand Name:
suhigo
Certification:
ISO-9001
Model Number:
HGWD406
Contact Us

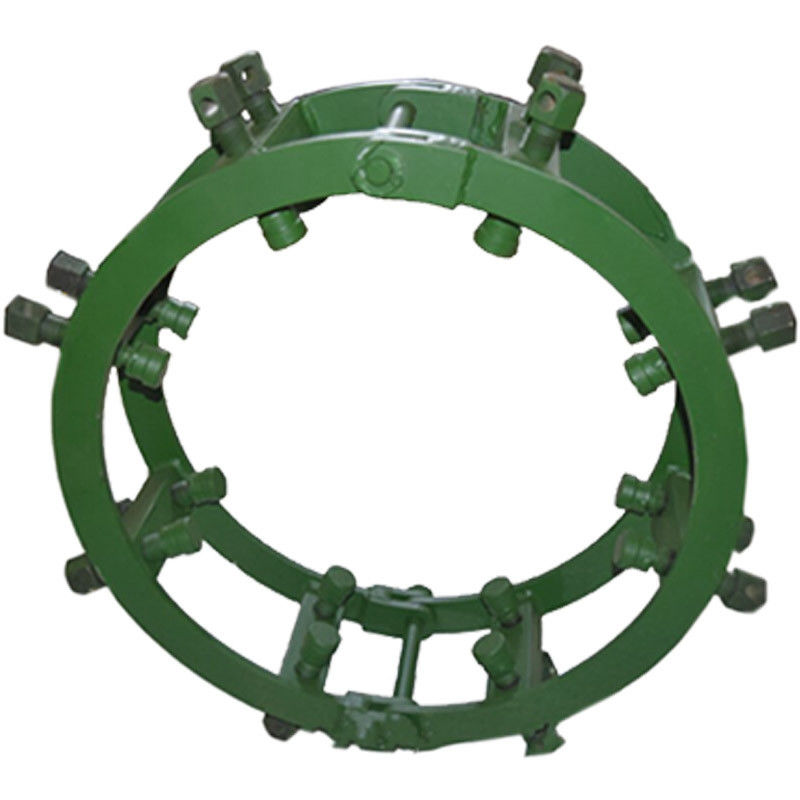

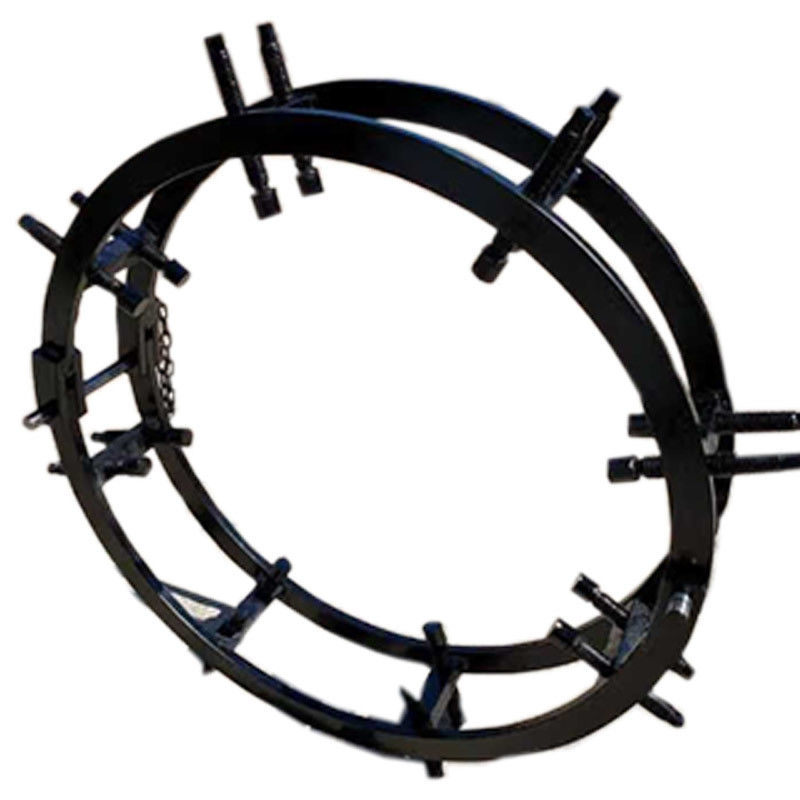

Pipeline Welding Use Hydraulic External Pipe Clamp
| Model | Applicable Pipe Size | Weight | Out Dimension | Tightening Force |
| HGWD406 | 406mm (16in) | 46 kg | Φ660 x 230mm | 5 tons |
| HGWD508 | 508mm (20in) | 62 kg | Φ770 x 230mm | 5 tons |
| HGDW610 | 610mm (24in) | 70 kg | Φ870 x 230mm | 5 tons |
| HGDW711 | 711mm (28in) | 97 kg | Φ970 x 230mm | 5 tons |
| HGDW813 | 813mm (32in) | 110 kg | Φ1070 x 230mm | 8 tons |
| HGDW914 | 914mm (36in) | 130 kg | Φ1180 x 230mm | 8 tons |
| HGDW1016 | 1016mm (40in) | 146 kg | Φ1270 x 230mm | 10 tons |
| HGDW1167 | 1167mm (46in) | 155 kg | Φ1420 x 230mm | 10 tons |
| HGDW1219 | 1219mm (48in) | 168 kg | Φ1520 x 230mm | 10 tons |
| HGDW1422 | 1422mm (56in) | 195 kg | Φ1700 x 230mm | 10 tons |
Technical Features of External Clamp:
1) Convenient installation and simple operation
2) Fast and high precision of line-up
3) Light weight and easy to carry
4) Strong practicability and wide application
About Suhigo
Why choose suhigo?
1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.
2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.
3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.
4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.
5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
