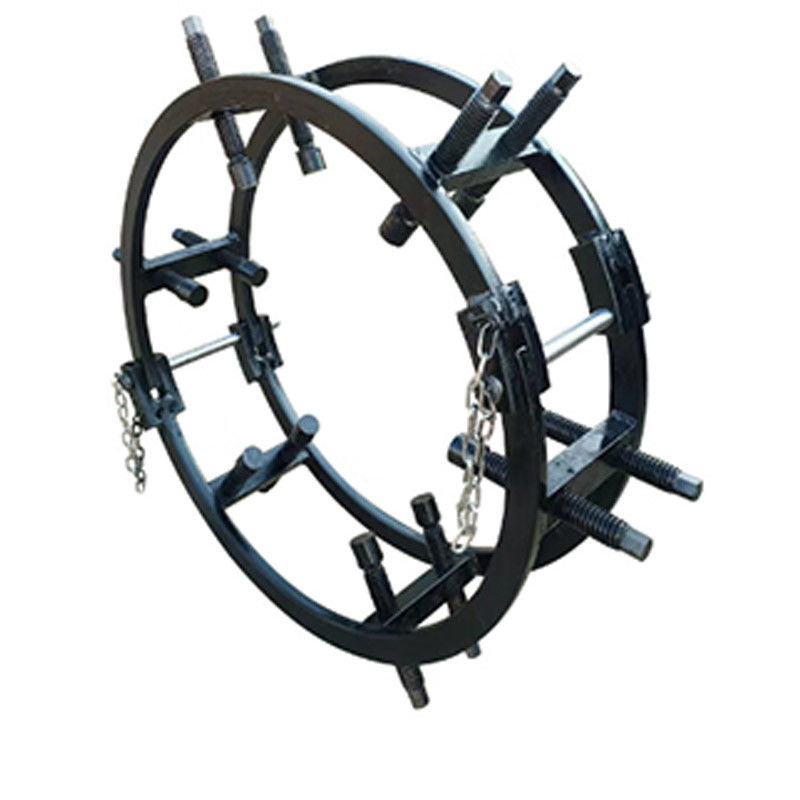

1422mm External Pipe Clamp Hydraulic External Line Up Clamp

1422mm External Pipe Clamp Hydraulic External Line Up Clamp

1422mm External Pipe Clamp

1422mm External Line Up Clamp

Hydraulic External Line Up Clamp

Place of Origin:

Langfang, Hebei, China

Brand Name:

suhigo

Certification:

ISO-9001

Contact Us

Request A Quote
Product Details
Name:
External Pipe Clamp
Weight:
46 Kg
Applicable Pipe Size:
406mm (16in)
Tightening Force:
5 Tons
Application:
Connect
Material Science:
Stainless Steel, Metal, Aluminum
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
bargain
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

Fixture For Pipe Welding With Hydraulic External Lineup For Pipe Connection, Lightweight And Easy To Carry




INTRODUCTION

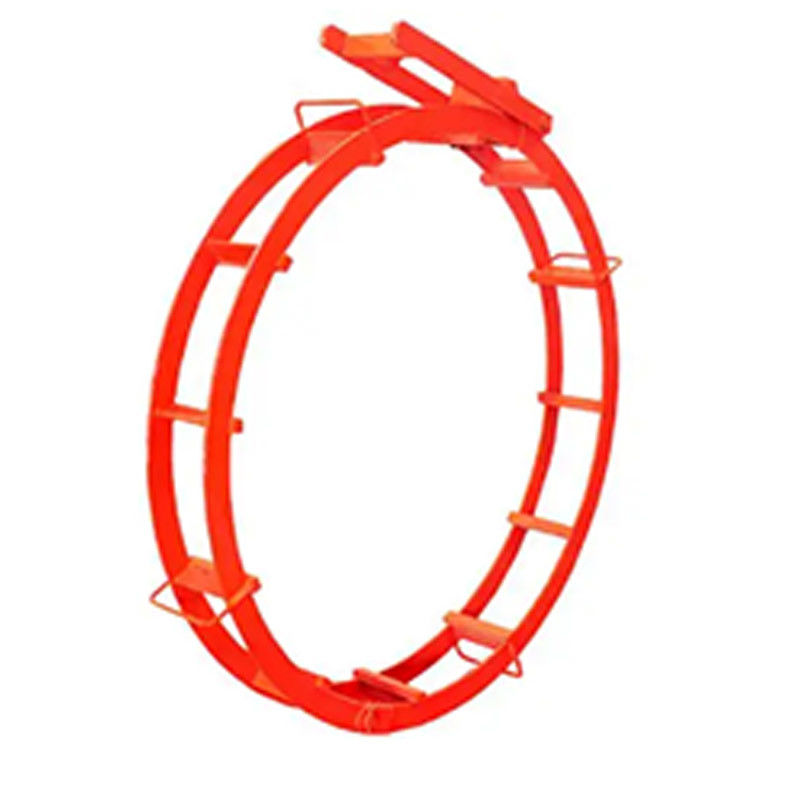

The pipeline external connector is a tool for connecting the head and mouth during the pipeline welding process, including the upper and lower half ring pressure rings. The left end of the upper and lower half ring pressure rings is hinged and connected, and the right end is connected through a locking mechanism. At least two pressure blocks are arranged on the upper and lower half ring pressure rings at circumferential intervals to compress the corresponding two pipelines. The large alignment device is equipped with three correction plates, and the larger ovality of the pipe orifice can be adjusted by inserting the correction plate.

Model Applicable Pipe Size Weight Out Dimension Tightening Force
HGWD406 406mm (16in) 46 kg Φ660 x 230mm 5 tons
HGWD508 508mm (20in) 62 kg Φ770 x 230mm 5 tons
HGDW610 610mm (24in) 70 kg Φ870 x 230mm 5 tons
HGDW711 711mm (28in) 97 kg Φ970 x 230mm 5 tons
HGDW813 813mm (32in) 110 kg Φ1070 x 230mm 8 tons
HGDW914 914mm (36in) 130 kg Φ1180 x 230mm 8 tons
HGDW1016 1016mm (40in) 146 kg Φ1270 x 230mm 10 tons
HGDW1167 1167mm (46in) 155 kg Φ1420 x 230mm 10 tons
HGDW1219 1219mm (48in) 168 kg Φ1520 x 230mm 10 tons
HGDW1422 1422mm (56in) 195 kg Φ1700 x 230mm 10 tons



Technical Features of External Clamp:

1) Convenient installation and simple operation

2) Fast and high precision of line-up

3) Light weight and easy to carry

4) Strong practicability and wide application



1422mm External Pipe Clamp Hydraulic External Line Up Clamp 0

About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2.



HGY Series High-Strength Side Arm Crawler Pipe Oil Equipment Sold For Pipeline Construction 1

HGY Series High-Strength Side Arm Crawler Pipe Oil Equipment Sold For Pipeline Construction 2

HGY Series High-Strength Side Arm Crawler Pipe Oil Equipment Sold For Pipeline Construction 3





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
