13T Lay Down Pipeline Roller Cradles Pipe Lifting Devices

13T Lay Down Pipeline Roller Cradles Pipe Lifting Devices

13T Pipeline Roller Cradles

Lay Down Pipeline Roller Cradles

Roller Cradles Pipe Lifting Devices

Place of Origin:

Langfang, Hebei, China

Brand Name:

suhigo

Certification:

ISO-9001

Model Number:

HGRC1224

Contact Us

Request A Quote
Product Details
Rollar No.:
28
Ambient Temp:
-30~+50
Max Load:
13T
Dia Of Sling:
22mm
Weight:
590KG
Dimension:
0.7*0.7*0.8
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
bargain
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

Made in China roller cradle Pipeline construction equipment steel wire rope pipe laying machine






INTRODUCTION





  • The Roller cradles are used in pipeline lay down operation. The rollers evenly distribute the pressure on the pipe, avoiding the risk of buckling the line pipe and preserving the coating. The use of polyurethane rollers eliminates the risk of damage the polyethylene or FBE pipe coating that can occur using regular steel wheel cradles.
  • In addition, high standard ropes made in China are provided with the cradle in order to ensure long lasting life and safe operation at site.
  • Suhigo brand roller cradles can be disassembled easily for fast site repair and maintenance and optimized storage and transport. Suhigo brand roller cradles comply with all applicable standards.

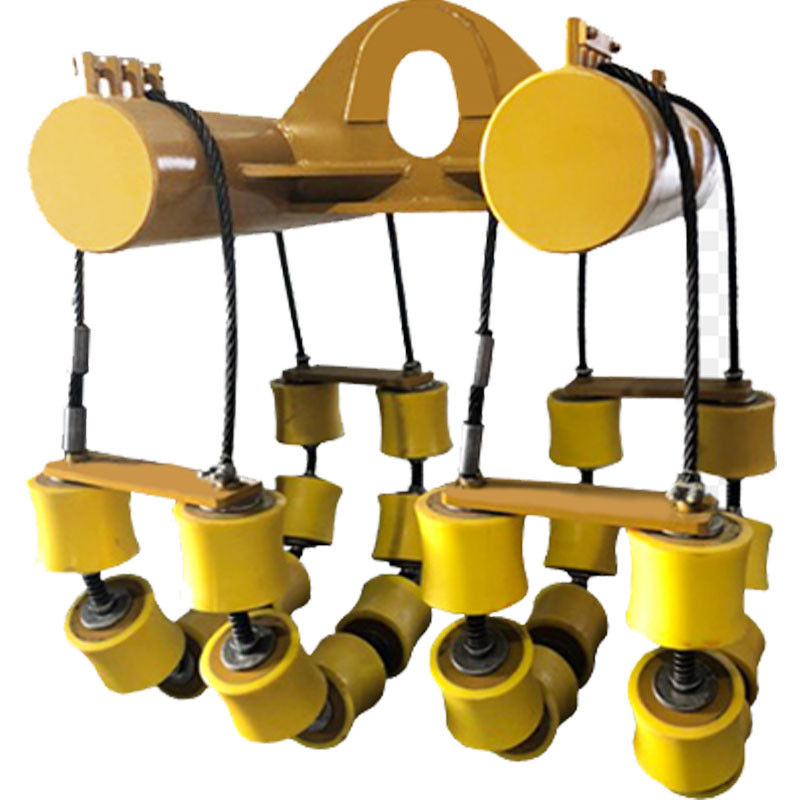

13T Lay Down Pipeline Roller Cradles Pipe Lifting Devices 0







Technical Parameters of Suhigo roller cradle:

Model HGRC0612 HGRC1224 HGRC2436 HGRC3648 HGRC4860
Pipe Size(mm) 152~305 305~610 610~914 914~1219 1219~1524
Ambient temp(℃) -30~+70 -30~+70 -30~+70 -30~+70 -30~+70
Roller No. 28 28 28 28 28
Dia of Sling(mm) 18 22 22 30 30
Max Working Load (ton) 8 13 35 45 55
Dimension(m) 0.5x0.5x0.5 0.7x0.7x0.8 1.0x1.0x0.8 1.4x1.4x1.0 1.6x1.4x1.0
Weight(kg) 128 260 550 1100 1800



The seamless steel pipe is used as the steel frame structure, which is welded as a whole, and the structure is firm and beautiful.

• Baskets can be disassembled for transport. After being transported to the construction site, it can be quickly assembled and connected by bolts, which is convenient and reliable.

• It has good anti-wind and sand performance, and ensures the flexible and free rotation of the roller.

• Roller-to-roller is connected by roller-gasket-spring-gasket-roller;

• The arc part where the hanging basket is in contact with the pipe is covered with special polyurethane to prevent the anti-corrosion layer from being damaged by bumps.

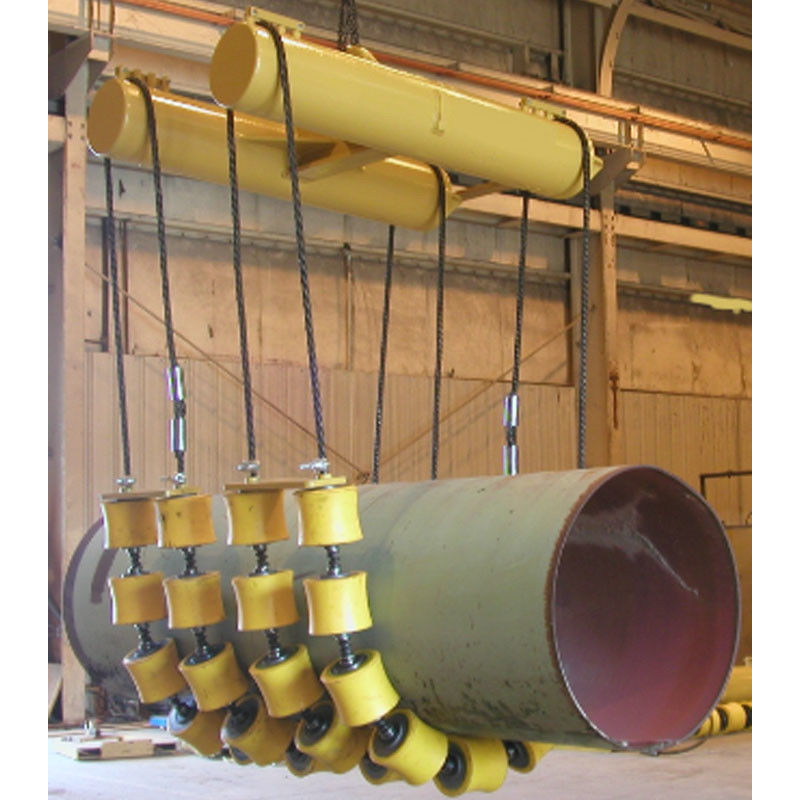

13T Lay Down Pipeline Roller Cradles Pipe Lifting Devices 113T Lay Down Pipeline Roller Cradles Pipe Lifting Devices 2





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
