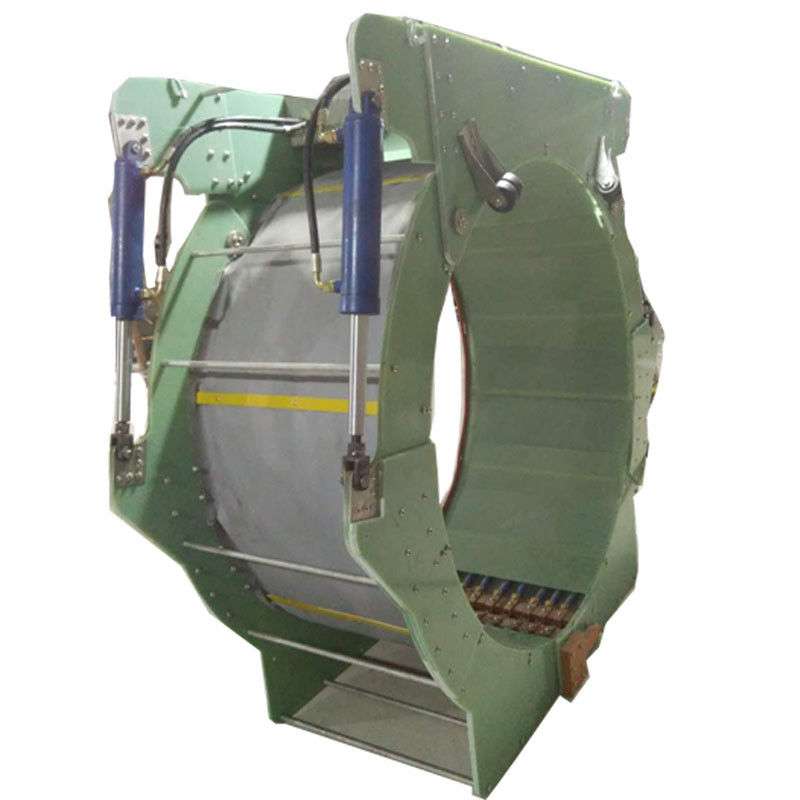

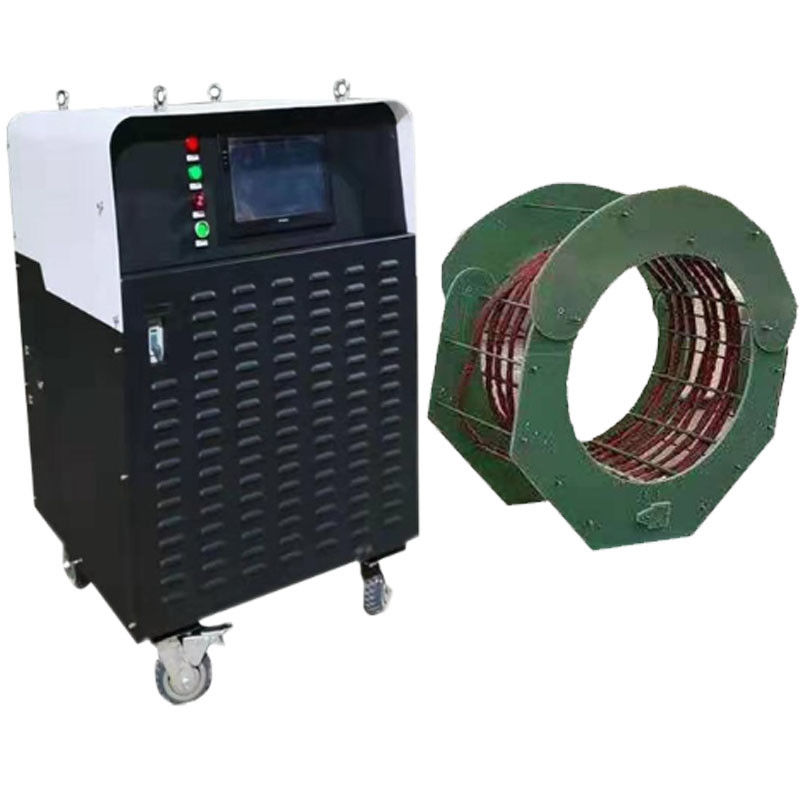

Pipeline Construction 600V Induction Heating Machine For Forging

Pipeline Construction 600V Induction Heating Machine For Forging

600V Induction Heating Machine For Forging

Induction Heating Machine For Forging

Pipeline Construction Induction Heating Machine

Place of Origin:

Langfang, Hebei, China

Brand Name:



ISO-9001 CE

Model Number:

HGZ Medium Frequency Heater

Contact Us

Request A Quote
Product Details
Belt Heater
Applicable Industries:
Manufacturing Factory, Construction Engineering
Product Name:
Intermediate Frequency Heaters
Output Voltage:
Pipeline Construction Equipment
Rapid Heating
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

High Efficiency Medium Frequency Heater For Pipe Heating Machine For Pipeline Construction Equipment



HGZJ series medium frequency heater power supply unit adopt IGBT or MOSFET inverter, and adopt DSP for full digital accurate control, so that the medium frequency heater has stronger working ability on site and can meet various process requirements.

Model HGZJ Series Medium-frequency Heater
Power output 0~80kw (0~800kw for option)
Power supply unit Dimension 700 x 560 x 820mm
Power supply unit Weight 200kg
Input Voltage/frequency 380V/50hz
Allowable fluctuation range of input voltage +20%~ +30%
Allowable fluctuation range of input frequency +10%~-10%
Overload capacity 1.2 times of rated value, 1min
Heating Effeciency 95%
Power factor 0.85
Output power adjustable range 0~100%
Output voltage/frequency 600~1200V / 8000hz
Output frequency tracking Automatic
Closed loop control accuracy 1%
Protection Grade IP65
Cooling type Forced air cooling
Working environment temperature -50℃~+65℃
Working environment humidity ≤95%
Working Altitude ≤3500m
Temperature measuring device Infrared thermometer or thermocouple for option


1) Adopt full digital IGBT inverter power supply is adopted, and the heating temperature is accurately and automatically controlled;

2) Frequency conversion / no-load automatic adaptation function to always maintain the best matching state;

3) Intelligent temperature control system to accurately control the temperature rise and insulation process;

4) Intelligent protection system enables the equipment to maintain continuous and safe operation under various working conditions;



Pipeline Construction 600V Induction Heating Machine For Forging 0




About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.


Pipe  Alignment And Pipe Lay Down Operation In Mountain Areas And Plain Areas. 3

Pipe  Alignment And Pipe Lay Down Operation In Mountain Areas And Plain Areas. 4

Pipe  Alignment And Pipe Lay Down Operation In Mountain Areas And Plain Areas. 5



Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
