380V 50Hz Pipe Heating Machine Medium Frequency Induction Heating

380V 50Hz Pipe Heating Machine Medium Frequency Induction Heating

380V 50Hz Pipe Heating Machine

380V Medium Frequency Induction Heating

50Hz Medium Frequency Induction Heating

Place of Origin:

Langfang, Hebei, China

Brand Name:

suhigo

Certification:

ISO-9001 CE

Model Number:

HGZ Medium Frequency Heater

Contact Us

Request A Quote
Product Details
Type:
Belt Heater
Power Supply:
Electric
Kw:
0-80kw
Weight:
200KG
Dimension:
700*560*820(mm)
Output Voltage:
600-1200(V)
Application:
Pipeline Construction Equipment
Insulation Material:
High Purity Mgo
Function:
Rapid Heating
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
bargain
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

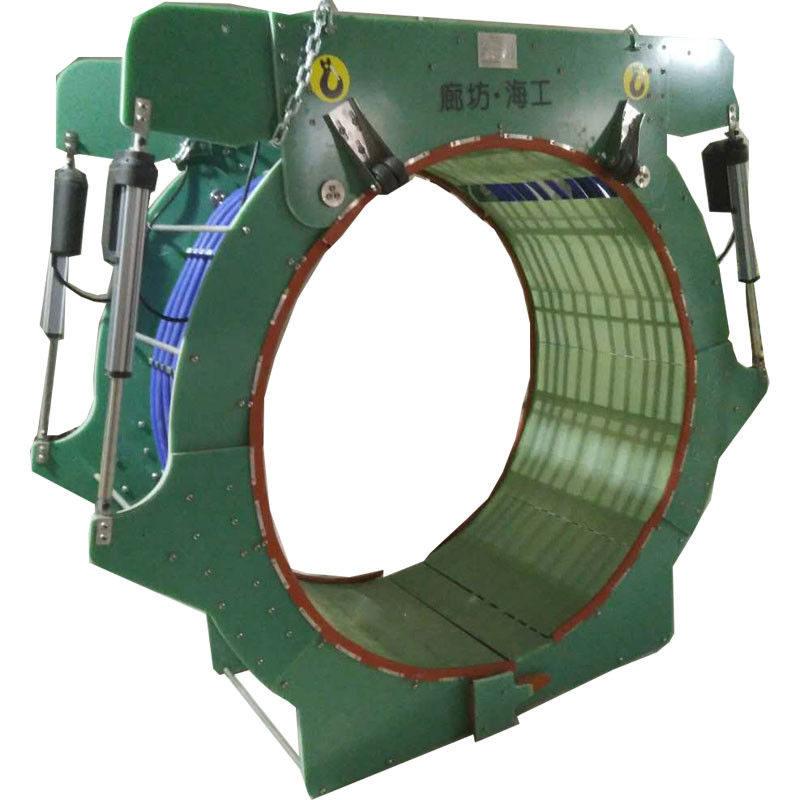

Factory Sales Of Customized Coil Medium Frequency Flameless Induction Heaters




Introduction

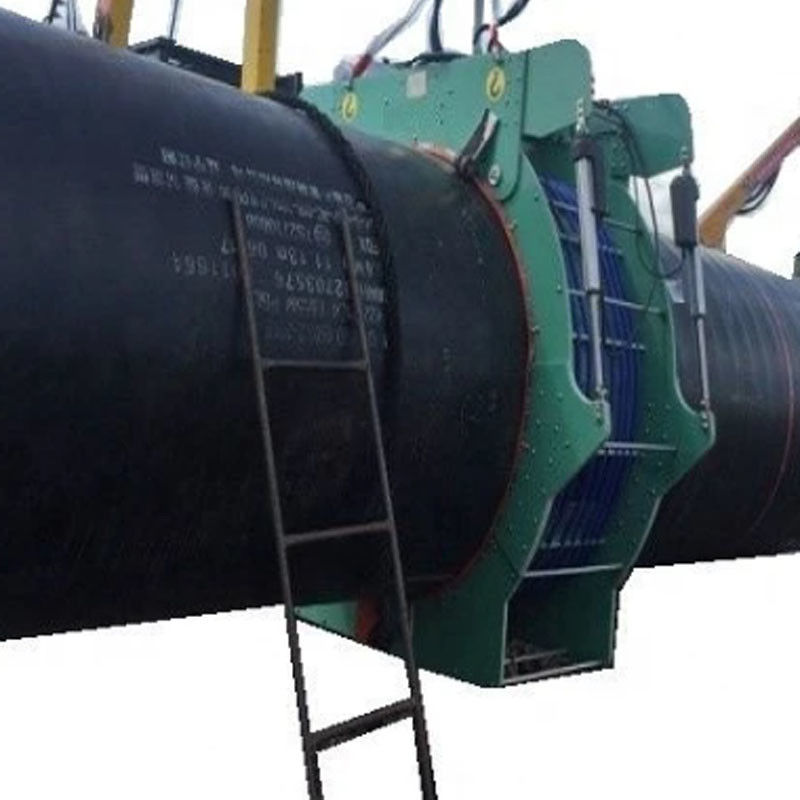

HGZ type medium frequency heating workstation is a crawler type full hydraulic medium frequency heating workstation powered by diesel engine. According to operational requirements, the heating vehicle is also equipped with a crane, which can be used to assist in lifting at any time.

Model HGZJ Series Medium-frequency Heater
Power output 0~80kw (0~800kw for option)
Power supply unit Dimension 700 x 560 x 820mm
Power supply unit Weight 200kg
Input Voltage/frequency 380V/50hz
Overload capacity 1.2 times of rated value, 1min
Power factor 0.85
Output power adjustable range 0~100%
Output voltage/frequency 600~1200V / 8000hz
Output frequency tracking Automatic
Closed loop control accuracy 1%
Protection Grade IP65
Cooling type Forced air cooling
Working environment temperature -50℃~+65℃
Working environment humidity ≤95%
Working Altitude ≤3500m
Temperature measuring device Infrared thermometer or thermocouple for option



Feature

1) Industrial display device displays working parameters in real time and is equipped with standard communication interface;

2) The power factor is always maintained at 0.95

3) Fast heating speed, high thermal efficiency and good controllability

4) High quality components and multiple protections are adopted to improve the reliability and service life of the equipment.





380V 50Hz Pipe Heating Machine Medium Frequency Induction Heating 0







About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



Pipe  Alignment And Pipe Lay Down Operation In Mountain Areas And Plain Areas. 3

Pipe  Alignment And Pipe Lay Down Operation In Mountain Areas And Plain Areas. 4

Pipe  Alignment And Pipe Lay Down Operation In Mountain Areas And Plain Areas. 5





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
