INTRODUCTION
Technical Parameters of Suhigo roller cradle:
| Model | HGRC0612 | HGRC1224 | HGRC2436 | HGRC3648 | HGRC4860 |
| Pipe Size(mm) | 152~305 | 305~610 | 610~914 | 914~1219 | 1219~1524 |
| Ambient temp(℃) | -30~+70 | -30~+70 | -30~+70 | -30~+70 | -30~+70 |
| Roller No. | 28 | 28 | 28 | 28 | 28 |
| Dia of Sling(mm) | 18 | 22 | 22 | 30 | 30 |
| Max Working Load (ton) | 8 | 13 | 35 | 45 | 55 |
| Dimension(m) | 0.5x0.5x0.5 | 0.7x0.7x0.8 | 1.0x1.0x0.8 | 1.4x1.4x1.0 | 1.6x1.4x1.0 |
| Weight(kg) | 128 | 260 | 550 | 1100 | 1800 |
Technical Features of Suhigo roller cradle:
1) The pipe weight evenly distributed on the circumference of the steel wire rope roller
2) The roller bearing adopts NSK/SKF famous brand bearings, with large radial and axial bearing capacity
3) The roller bearing has the functions of sealing, waterproof and sand prevention
4) The roller moves flexibly to ensure that the pipe lay down smoothly
5) PU wheels provide protected pipe rolling, with better wear-resistance and longer lifetime
6) Replacement wheels readily available
7) Wire rope swaged sleeve assembly meets international standard
8) Roller cradle follow standard of CE, certificate for option

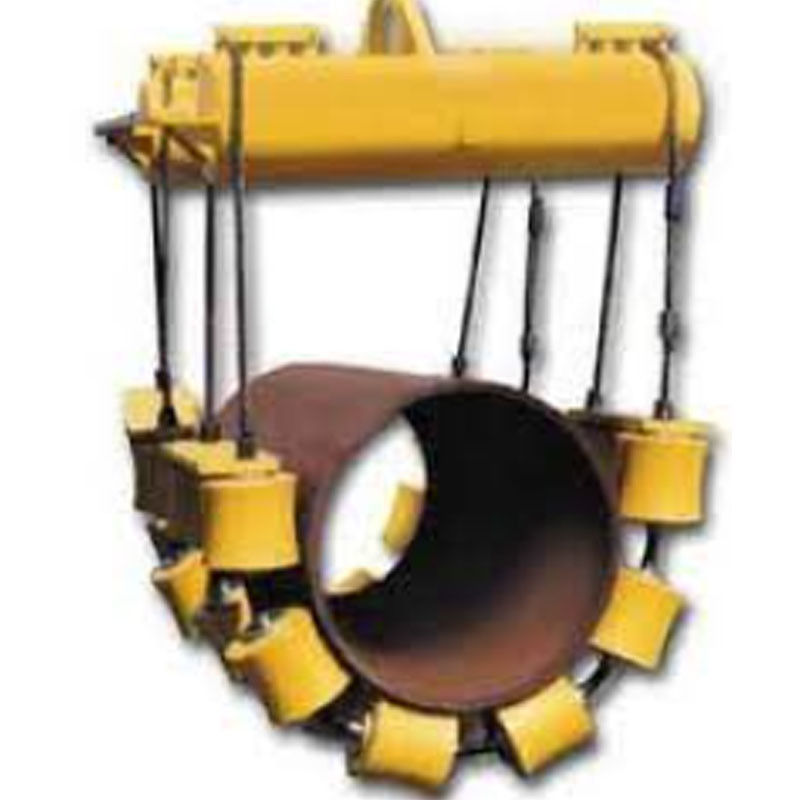

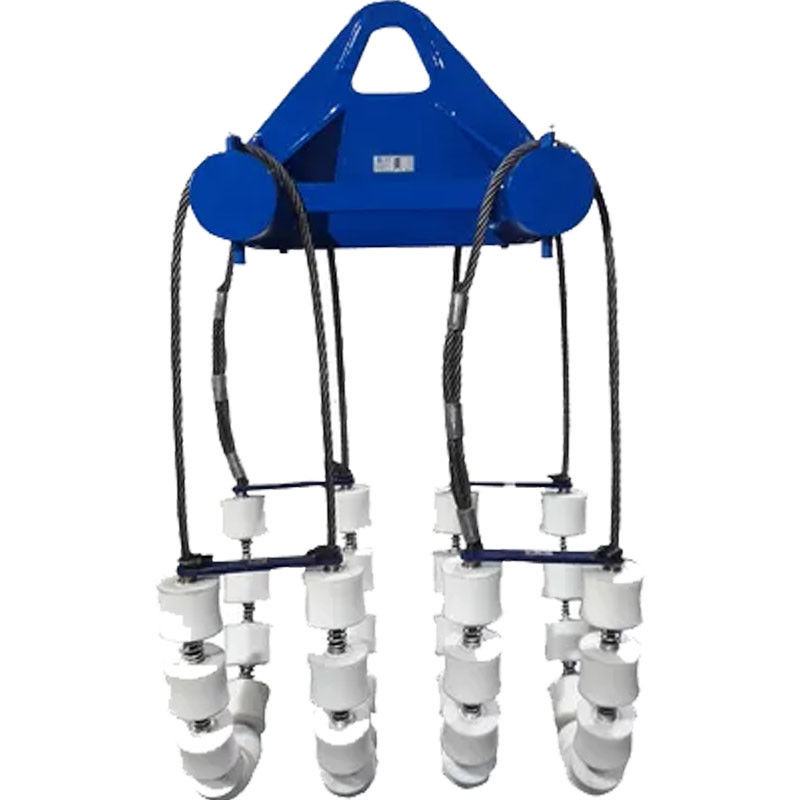

1.Pipe Roller Cradle is a special hoist and travel equipment. Usually, 4-6 units are formed as one group and it works with pipe layer / sideboom.
2. Pipe Roller Cradle to lower in pipe after welding with reasonable design, light weight, strong hoist power, safe and reliable;
3. It is made by special polyurethane or Vulkollan roller with good gluing properties for pipeline construction used pipe rolli cradle, high abrasive ressitance.
Advantages of Pipe Roller Cradle
.Material of our rollar cradle : Vulkollan from Bayer's supper strong elastomer materal in the world, which of high load-bearing capacity,strong abrasive resistance.
temperature range of our roli cradle : -40°C~100°C, material performance remain unchanged in such high temperature range.
