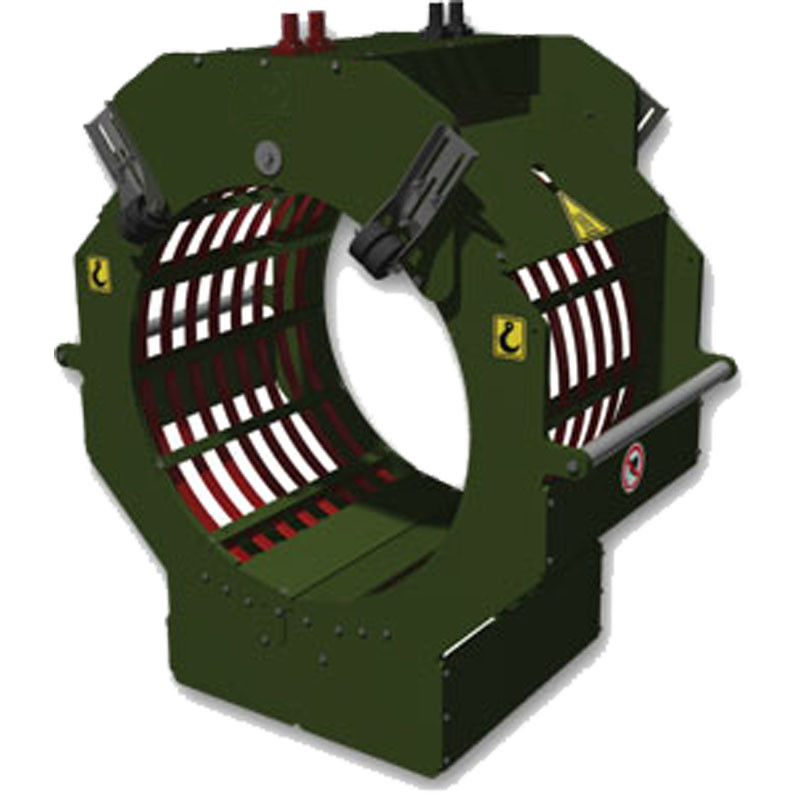

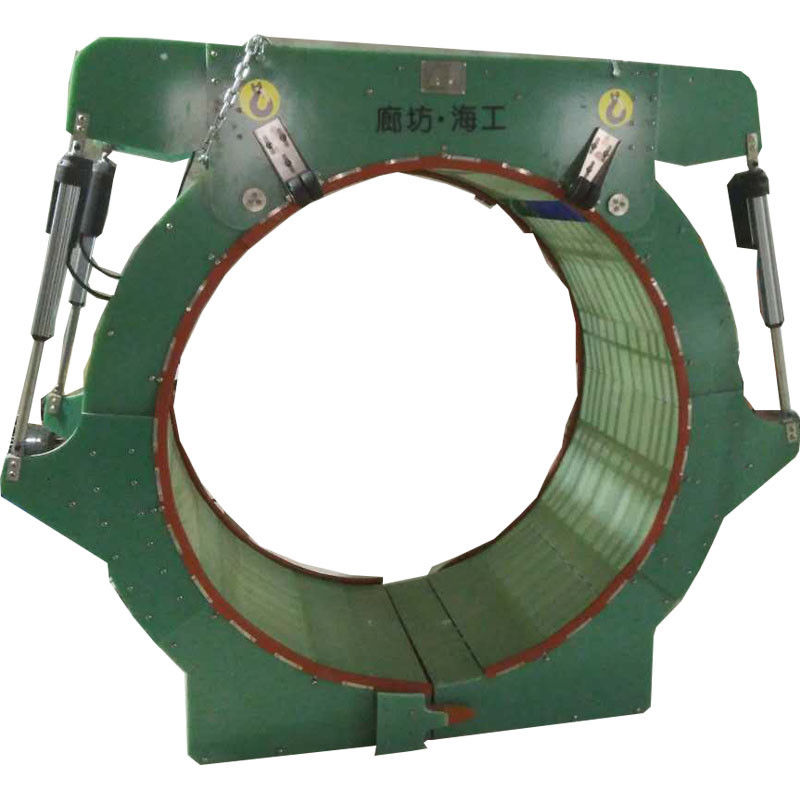

80Kw 380V Pipe Heating Machine Medium Frequency Induction Heating

80Kw 380V Pipe Heating Machine Medium Frequency Induction Heating

80Kw Pipe Heating Machine

80Kw Medium Frequency Induction Heating

380V Pipe Heating Machine

Place of Origin:

Langfang, Hebei, China

Brand Name:



ISO-9001 CE

Model Number:

HGZ Medium Frequency Heater

Contact Us

Request A Quote
Product Details
Belt Heater
Power Supply:
Product Name:
Intermediate Frequency Heaters
Pipeline Construction Equipment
Insulation Material:
High Purity Mgo
Rapid Heating
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

Medium Frequency Induction Heating Machine, Used For Metal Heaters In Metal Forging And Smelting Furnaces



The medium-frequency heating workstation has the following characteristics: when in use, the power will not change significantly due to the change of altitude, less harmful substances, low noise, low requirements for air cleanliness, low maintenance cost, good reliability of generator operation, high overload capacity, and low cost

Model HGZJ Series Medium-frequency Heater
Power output 0~80kw (0~800kw for option)
Power supply unit Dimension 700 x 560 x 820mm
Power supply unit Weight 200kg
Input Voltage/frequency 380V/50hz
Allowable fluctuation range of input voltage +20%~ +30%
Allowable fluctuation range of input frequency +10%~-10%
Overload capacity 1.2 times of rated value, 1min
Heating Effeciency 95%
Power factor 0.85
Output power adjustable range 0~100%
Output voltage/frequency 600~1200V / 8000hz
Output frequency tracking Automatic
Closed loop control accuracy 1%
Protection Grade IP65
Cooling type Forced air cooling
Working environment temperature -50℃~+65℃
Working environment humidity ≤95%
Working Altitude ≤3500m
Temperature measuring device Infrared thermometer or thermocouple for option



1) Induction current heating, uniform and fast heating, automatic control and simple operation

2) Clamp type medium frequency heating device adopts epoxy plate NC processing, with light weight and good insulation

3) The clamp heater adopts electric push rod design, with fast and stable opening and closing

4) Adopted top brand quick plug, high-quality components and cables, much reliable performance



80Kw 380V Pipe Heating Machine Medium Frequency Induction Heating 0




About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.


Pipe  Alignment And Pipe Lay Down Operation In Mountain Areas And Plain Areas. 3

Pipe  Alignment And Pipe Lay Down Operation In Mountain Areas And Plain Areas. 4

Pipe  Alignment And Pipe Lay Down Operation In Mountain Areas And Plain Areas. 5



Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
