Medium Frequency Intelligent Induction Heater Portable Induction Heating Machine

Medium Frequency Intelligent Induction Heater Portable Induction Heating Machine

Intelligent Induction Heater

Medium Frequency Induction Heater

Portable Induction Heating Machine

Place of Origin:

Langfang, Hebei, China

Brand Name:



ISO-9001 CE

Model Number:

HGZ Medium Frequency Heater

Contact Us

Request A Quote
Product Details
Applicable Industries:
Manufacturing Factory, Construction Engineering
Product Name:
Intermediate Frequency Heaters
Output Voltage:
Pipeline Construction Equipment
Insulation Material:
High Purity Mgo
Rapid Heating
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

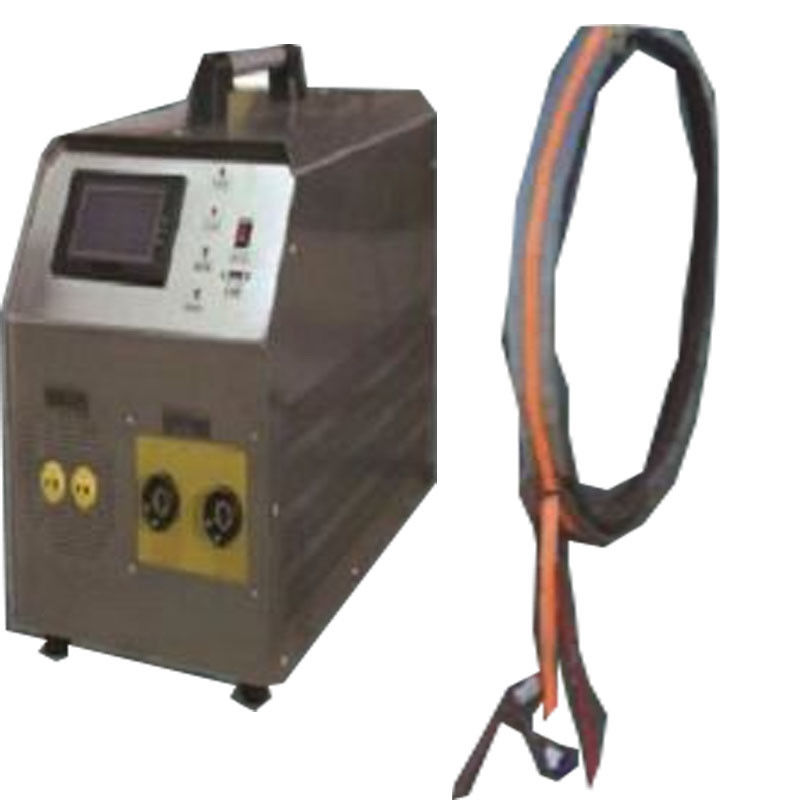

Energy Saving Portable Induction Machine, Medium Frequency Intelligent Induction Heater



The machine main components adopt international famous brand or domestic famous brand, Germany rexroth pump, valve, reducer,cummins generator set special motor, its speed regulating speed control precision, perfect combination with the famous Stamford generator, which provides the voltage and frequency and its stability, high pressure hose and connector with famous brand, the driver room is comfortable and beautiful, heating car work performance is good, use reliable, flexible, strong commonality, easy maintenance, whose comprehensive technical performance has reached domestic leading level, can compare with the international similar products, is a very high ratio of medium frequency heating station.

Model HGZJ Series Medium-frequency Heater
Power supply unit Dimension 700 x 560 x 820mm
Power supply unit Weight 200kg
Input Voltage/frequency 380V/50hz
Allowable fluctuation range of input voltage +20%~ +30%
Allowable fluctuation range of input frequency +10%~-10%
Overload capacity 1.2 times of rated value, 1min
Heating Effeciency 95%
Power factor 0.85
Output voltage/frequency 600~1200V / 8000hz
Output frequency tracking Automatic
Closed loop control accuracy 1%
Cooling type Forced air cooling
Working environment temperature -50℃~+65℃
Working environment humidity ≤95%
Working Altitude ≤3500m
Temperature measuring device Infrared thermometer or thermocouple for option



1) Induction current heating, uniform and fast heating, automatic control and simple operation

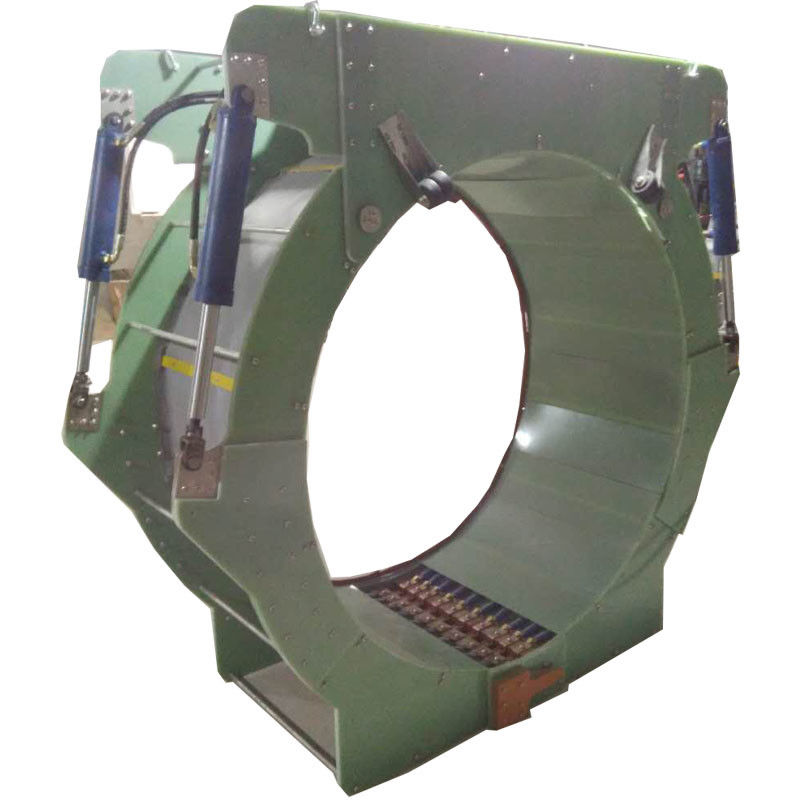

2) Clamp type medium frequency heating device adopts epoxy plate NC processing, with light weight and good insulation

3) The clamp heater adopts electric push rod design, with fast and stable opening and closing

4) Adopted top brand quick plug, high-quality components and cables, much reliable performance

5) Infrared thermometer or thermocouple can be selected for temperature measurement to realize closed-loop control and temperature acquisition;

6) The sealing plate is folded at the pipe orifice and high-quality hardware is adopted, with good sealing effect;

7) The medium frequency heating belt adopts high-quality cable and protective cloth, with high heating efficiency and reliability.



Medium Frequency Intelligent Induction Heater Portable Induction Heating Machine 0
