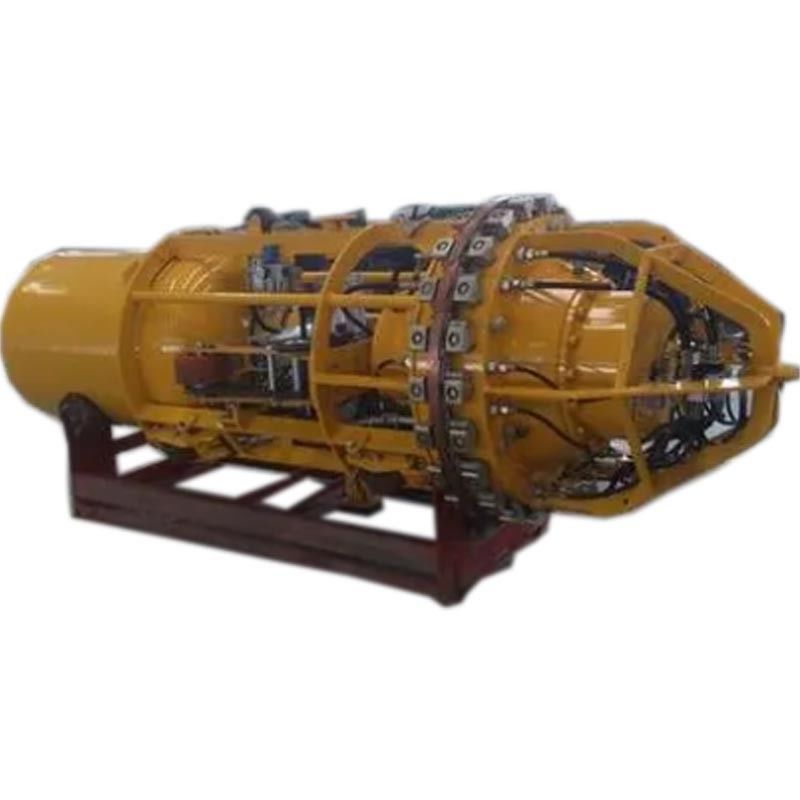

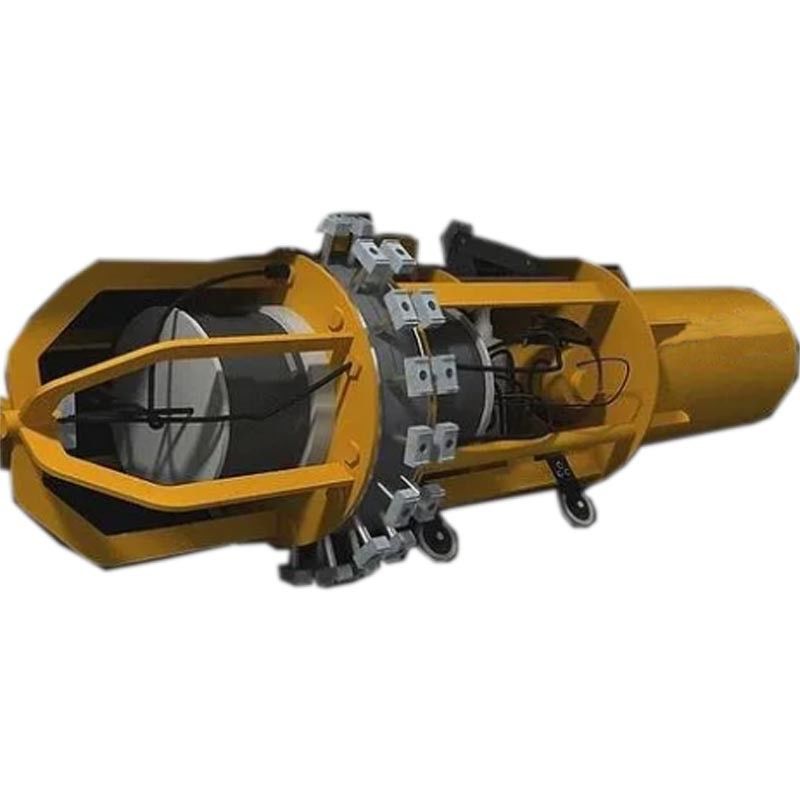

Pneumatic Inner Pipeline Internal Clamp Pipe Welding Alignment Clamp

Pneumatic Inner Pipeline Internal Clamp

Pipe Welding Alignment Clamp

Pneumatic Pipe Welding Alignment Clamp

Place of Origin:

Langfang, Hebei, China

Brand Name:

suhigo

Certification:

ISO-9001

Request A Quote

Pneumatic Inner Pipeline Internal Clamp Pipe Welding Alignment Clamp

Product Details

Country Of Origin::

Hebei, China

Support Pressure:

Pipe Positioning Fixture 5-750T

Applicable Pipeline Size:

Pipe Positioning Clamp 6 "-80"

Electric System:

Fuel Tank Capacity:

380

Structure:

G Fixture

Working Pressure:

0.5 MPa~0.8 MPa

Maximum Torque:

Adjustable

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

bargain

Packaging Details

Wooden box+wrapping film

Delivery Time

15 days -30 days.

Supply Ability

Construction period 15-30 days

0.8MPa Internal Pneumatic Clamp Internal Line Up Clamps For Pipeline Welding

Get Best Price

10in 14in Pipeline Internal Pneumatic Clamp Internal Pneumatic Line Up Clamp

Get Best Price

ISO Pipeline Internal Clamp Oil And Gas Pipe Welding Fit Up Clamps

Get Best Price

0.5MPa~0.8MPa Pipe Alignment Chain Clamps Welding Line Up Clamps

Get Best Price

86-156-1262-9000

sales@suhigo.com

86-22-60651386

Contact Now

Product Description

Pneumatic Inner Pipeline Upward Fixture Pipe Welding Alignment Equipment Pipe Inner Pipeline Upward Fixture

Name: Pneumatic Inner Pipeline Internal Clamp Pipe Welding Alignment Clamp
Brand: suhigo
SKU: suhigo
Rating: 4.8 (173 reviews)

INTRODUCION

1) Compact design, Safe and reliable performance

Reasonable design and controllable production process ensure the machining accuracy and dimensional accuracy of various parts, so as to ensure the parts performance.

2) High alignment accuracy and wide application range

The core working parts are selected from international famous brands and processed by structural parts CNC machining center, to achieve high alignment accuracy of the alignment components.

Non-self-propelled Clamp (Manual Pulled)

Model	Pipe Size	Piston No.s	Piston Power	L	W	H	Weight	Cube
Model	(mm)	Piston No.s	(KN)	(mm)	(mm)	(mm)	(kg)	(m3)
HGDNQ6’’	168	6X2	134	1473	150	150	36	.04
HGDNQ8’’	219	6X2	209	1593	189	189	53	.06
HGDNQ10’’	273	6X2	382	1665	240	240	60	.09
HGDNQ12-14’’	305-357	6X2	405	1751	280	280	100	.14

Pneumatic Inner Pipeline Internal Clamp Pipe Welding Alignment Clamp 0

Self-propelled Clamp (Travels Under Its Own Power)

Model	Pipe Size	Piston No.s	Piston Power	Motor Power	Motor Nos.	L	W	H	Weight	Cube
Model	(mm)	Piston No.s	(KN)	(hp)	Motor Nos.	(mm)	(mm)	(mm)	(kg)	(m3)
HGDNQ16-18’’	406-457	8x2	959	1	1	2132	360	360	188	.29
HGDNQ20-22’’	508-559	10x2	1057	1.5	1	2434	480	480	296	.59
HGDNQ22-24’’	559-610	12x2	1268	1.5	1	2500	530	530	390	.72
HGDNQ24-26’’	610-660	12x2	1268	1.5	1	2672	580	580	418	.90
HGDNQ28-30’’	711-762	12x2	1748	1.5	1	2700	670	670	512	1.2
HGDNQ30-32’’	762-813	14x2	2937	3	1	2938	690	690	733	1.4
HGDNQ34-36’’	864-914	16x2	2937	3	1	3020	790	790	779	1.8
HGDNQ36-38’’	914-965	18x2	2937	3	1	3188	860	860	865	2.4
HGDNQ40-42’’	1016-1067	20x2	2937	3	1	3029	980	980	982	3.0
HGDNQ46-48’’	1168-1219	20x2	4855	3	1	3100	1050	1050	1420	3.7
HGDNQ48-50’’	1219-1270	22x2	4855	3	2	3517	1120	1120	1876	5.2
HGDNQ52-54’’	1321-1372	22x2	4855	3	2	3520	1210	1210	1988	5.4
HGDNQ56’’	1422	22x2	4855	3	2	3500	1310	1310	2187	6.6
HGDNQ60’’	1524	22x2	4855	3	2	3500	1310	1310	2187	6.6
HGDNQ62-66’’	1574-1676	24x2	4855	3	2	3864	1557	1557	2887	10.0

About Suhigo

As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

Pipe Alignment And Pipe Lay Down Operation In Mountain Areas And Plain Areas. 3

Pipe Alignment And Pipe Lay Down Operation In Mountain Areas And Plain Areas. 4

Pipe Alignment And Pipe Lay Down Operation In Mountain Areas And Plain Areas. 5

Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
