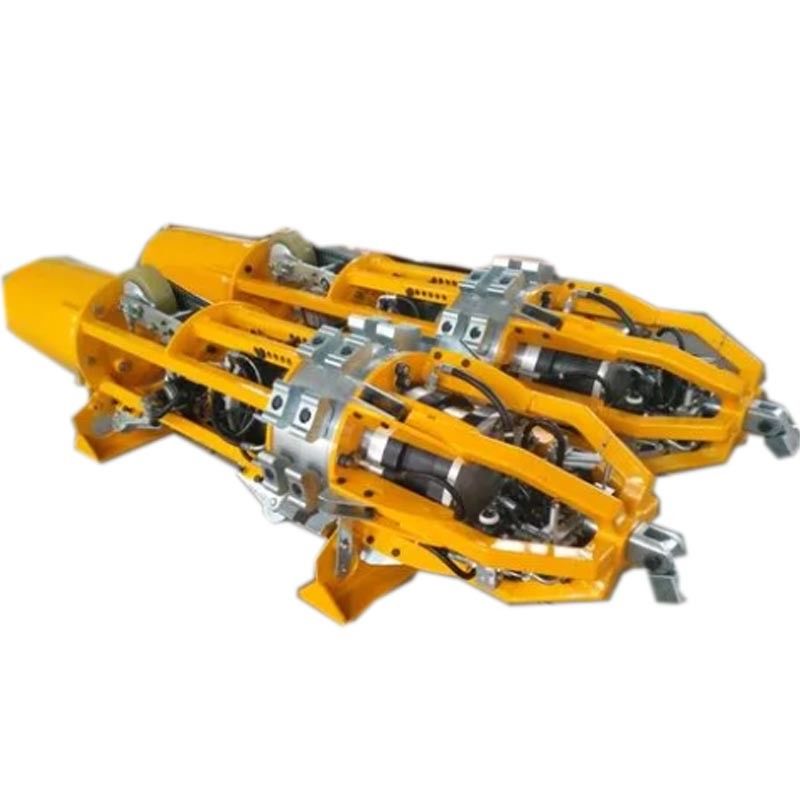

Pneumatic Internal Pipeline Fixture For Pipeline Welding In The Oil And Gas Industry


INTRODUCION

Internal alignment device is a device used to fix two pipe ends from inside the pipeline during pipe end welding. The misalignment of the fixed end face is usually less than 1-2 mm.



Non-self-propelled Clamp (Manual Pulled)

Model Pipe Size Piston No.s Piston Power L W H Weight Cube
(mm) (KN) (mm) (mm) (mm) (kg) (m3)
HGDNQ6’’ 168 6X2 134 1473 150 150 36 .04
HGDNQ8’’ 219 6X2 209 1593 189 189 53 .06
HGDNQ10’’ 273 6X2 382 1665 240 240 60 .09
HGDNQ12-14’’ 305-357 6X2 405 1751 280 280 100 .14

Advantage

1. C-shaped structure, high alignment accuracy, and convenient operation.

2. High quality pneumatic composite materials. Luoyang Deping's independently patented exhaust valve design is easy to operate and has a low equipment defect rate





6"-80" Internal Pneumatic Line Up Clamp For Oil And Gas Pipeline Welding 0

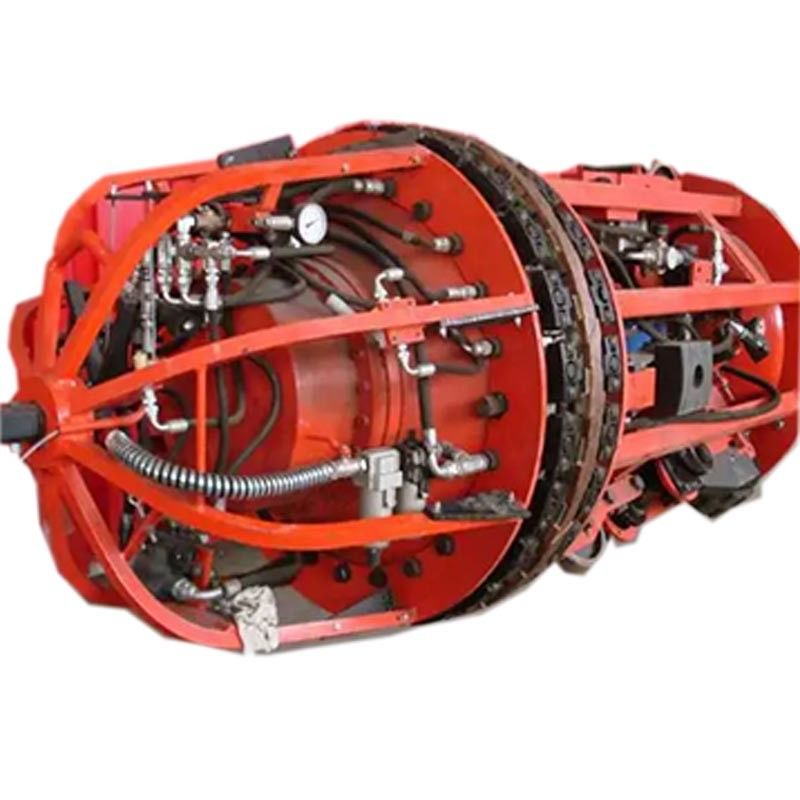

Self-propelled Clamp (Travels Under Its Own Power)

Model Pipe Size Piston No.s Piston Power Motor Power Motor Nos. L W H Weight Cube
(mm) (KN) (hp) (mm) (mm) (mm) (kg) (m3)
HGDNQ16-18’’ 406-457 8x2 959 1 1 2132 360 360 188 .29
HGDNQ20-22’’ 508-559 10x2 1057 1.5 1 2434 480 480 296 .59
HGDNQ22-24’’ 559-610 12x2 1268 1.5 1 2500 530 530 390 .72
HGDNQ24-26’’ 610-660 12x2 1268 1.5 1 2672 580 580 418 .90
HGDNQ28-30’’ 711-762 12x2 1748 1.5 1 2700 670 670 512 1.2
HGDNQ30-32’’ 762-813 14x2 2937 3 1 2938 690 690 733 1.4
HGDNQ34-36’’ 864-914 16x2 2937 3 1 3020 790 790 779 1.8
HGDNQ36-38’’ 914-965 18x2 2937 3 1 3188 860 860 865 2.4
HGDNQ40-42’’ 1016-1067 20x2 2937 3 1 3029 980 980 982 3.0
HGDNQ46-48’’ 1168-1219 20x2 4855 3 1 3100 1050 1050 1420 3.7
HGDNQ48-50’’ 1219-1270 22x2 4855 3 2 3517 1120 1120 1876 5.2
HGDNQ52-54’’ 1321-1372 22x2 4855 3 2 3520 1210 1210 1988 5.4
HGDNQ56’’ 1422 22x2 4855 3 2 3500 1310 1310 2187 6.6
HGDNQ60’’ 1524 22x2 4855 3 2 3500 1310 1310 2187 6.6
HGDNQ62-66’’ 1574-1676 24x2 4855 3 2 3864 1557 1557 2887 10.0
