914mm-1219mm Pipeline Roller Cradles For Pipe Handling Equipment

914mm-1219mm Pipeline Roller Cradles For Pipe Handling Equipment

1219mm Pipeline Roller Cradles

914mm Pipeline Roller Cradles

914mm Pipe Roller Cradle

Place of Origin:

Langfang, Hebei, China

Brand Name:

suhigo

Certification:

ISO-9001 CE

Model Number:

HGRC24365

Contact Us

Request A Quote
Product Details
Dia Of Sling:
40mm
Weight:
1900KG
Max Load:
55T
Rollar No.:
28
Dimension:
1.4*1.4*0.8
Pipe Size:
610-914
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
bargain
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

HGRC2436 Pipeline construction pipe Roller Cradle for pipe size 914-1219mm yellow and red color 2200Kg weight




HGRC2436 Pipeline construction pipe Roller Cradle for pipe size 914-1219mm yellow and red color 2200Kg weight

INTRODUCTION





Roller cradles are often used in conjunction with other pipe handling equipment, such as lifting devices or pipe stands, to facilitate safe and efficient operations. They can be utilized for tasks such as pipe loading and unloading, pipe transportation within a worksite, or pipe alignment during installation.

By providing stability and controlled movement, roller cradles help prevent pipe damage, reduce worker strain, and enhance overall productivity. They are an essential tool in industries like construction, plumbing, oil and gas, and infrastructure development, where the handling and installation of pipes are common tasks."



  • The Roller cradles are used in pipeline lay down operation. The rollers evenly distribute the pressure on the pipe, avoiding the risk of buckling the line pipe and preserving the coating. The use of polyurethane rollers eliminates the risk of damage the polyethylene or FBE pipe coating that can occur using regular steel wheel cradles.
  • In addition, high standard ropes made in China are provided with the cradle in order to ensure long lasting life and safe operation at site.
  • Suhigo brand roller cradles can be disassembled easily for fast site repair and maintenance and optimized storage and transport. Suhigo brand roller cradles comply with all applicable standards.

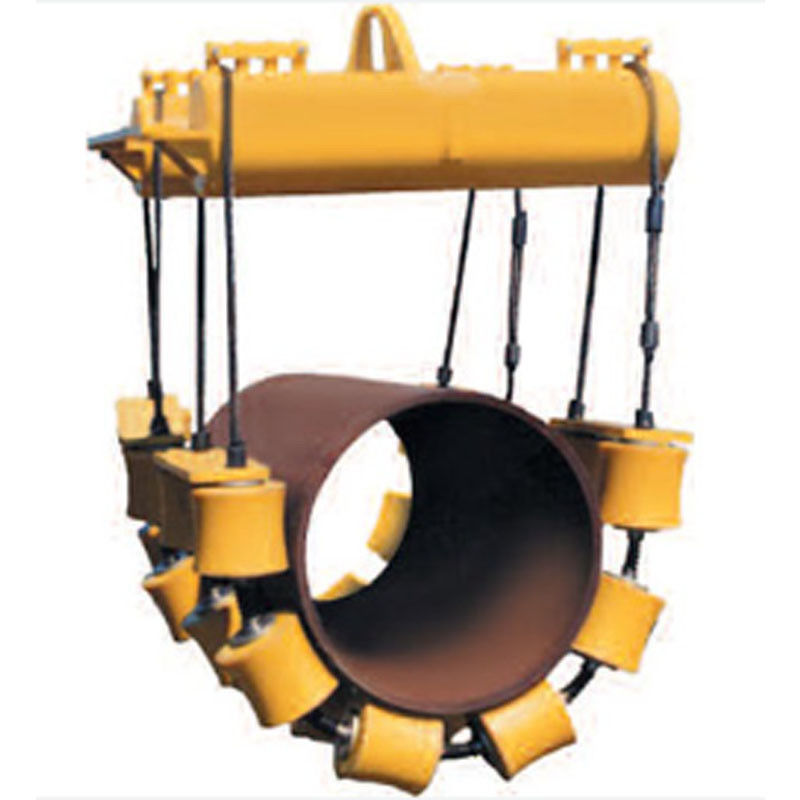

914mm-1219mm Pipeline Roller Cradles For Pipe Handling Equipment 0







Technical Parameters of Suhigo roller cradle:

Model HGRC0612 HGRC1224 HGRC2436 HGRC3648 HGRC4860
Pipe Size(mm) 152~305 305~610 610~914 914~1219 1219~1524
Ambient temp(℃) -30~+70 -30~+70 -30~+70 -30~+70 -30~+70
Roller No. 28 28 28 28 28
Dia of Sling(mm) 18 22 22 30 30
Max Working Load (ton) 8 13 35 45 55
Dimension(m) 0.5x0.5x0.5 0.7x0.7x0.8 1.0x1.0x0.8 1.4x1.4x1.0 1.6x1.4x1.0
Weight(kg) 128 260 550 1100 1800



Technical Features of Suhigo roller cradle:

1) The pipe weight evenly distributed on the circumference of the steel wire rope roller

2) The roller bearing adopts NSK/SKF famous brand bearings, with large radial and axial bearing capacity

3) The roller bearing has the functions of sealing, waterproof and sand prevention

4) The roller moves flexibly to ensure that the pipe lay down smoothly

5) PU wheels provide protected pipe rolling, with better wear-resistance and longer lifetime

6) Replacement wheels readily available

7) Wire rope swaged sleeve assembly meets international standard

8) Roller cradle follow standard of CE, certificate for option

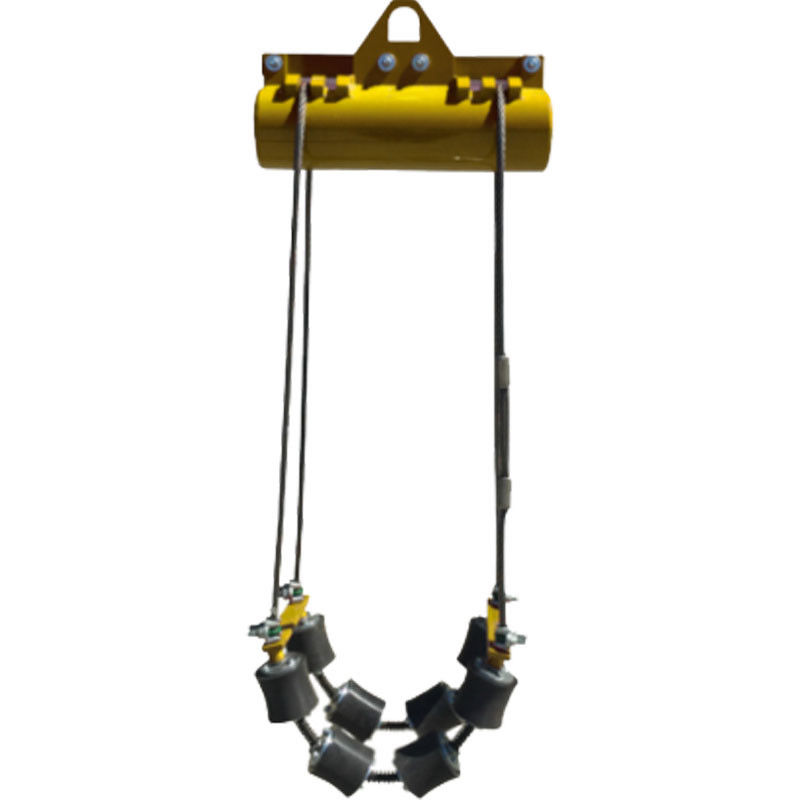

914mm-1219mm Pipeline Roller Cradles For Pipe Handling Equipment 1914mm-1219mm Pipeline Roller Cradles For Pipe Handling Equipment 2
