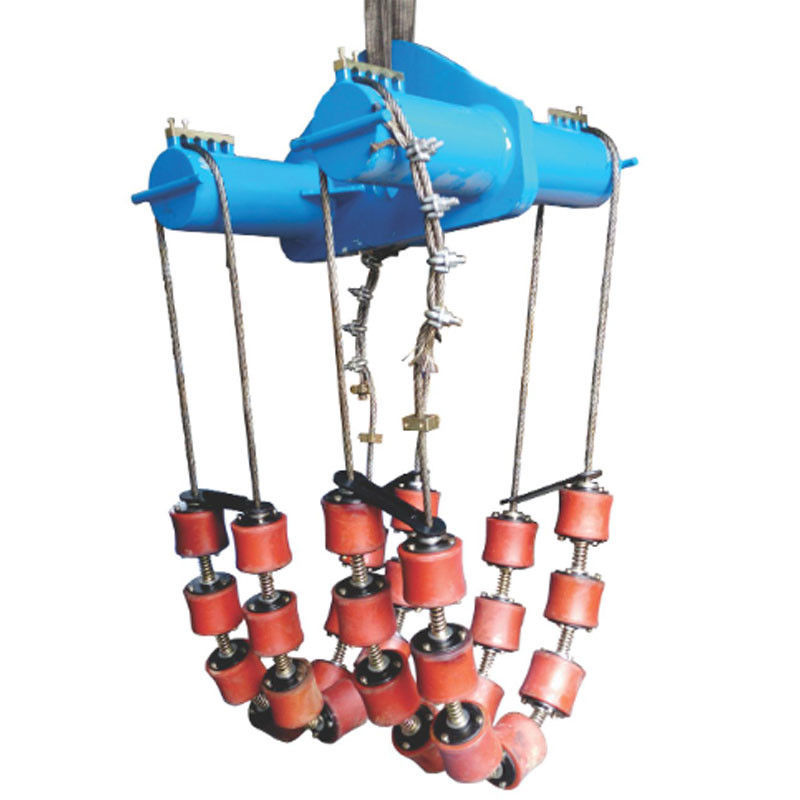

Pipeline Construction Pipe Roller Cradle For 305mm-610mm Lifting Devices

Pipeline Construction Pipe Roller Cradle For 305mm-610mm Lifting Devices

Pipeline Construction Pipe Roller Cradle

305mm Pipe Roller Cradle

610mm Pipe Roller Cradle

Place of Origin:

Langfang, Hebei, China

Brand Name:

suhigo

Certification:

ISO-9001 CE

Model Number:

HGRC1224

Contact Us

Request A Quote
Product Details
Name:
Pipe Roller Cradle
Rollar No.:
28
Max Load:
25T
Weight:
1450KG
Dimension:
1.0*1.0*0.6
Dia Of Sling:
22mm
Pipe Size:
152-1524
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
bargain
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

HGRC1224 Pipeline construction pipe Roller Cradle for pipe size 305-610mm lifting devices






INTRODUCTION





Roller cradles are invaluable tools used in various industries for the safe and efficient handling of cylindrical objects, particularly pipes. These cradles are designed to provide support, stability, and controlled movement during pipe transportation, installation, and maintenance.

A roller cradle typically consists of a sturdy frame or structure equipped with multiple rollers or wheels. The rollers are strategically positioned along the cradle's length to create a smooth rolling surface. They are often made of materials like steel, polyurethane, or nylon, chosen for their durability and ability to withstand heavy loads.

The rollers on a cradle are designed to minimize friction and allow pipes to move easily along their length. This feature is essential for tasks such as loading and unloading pipes onto trucks or trailers, moving pipes within a worksite, or aligning pipes during installation. The smooth rolling action of the cradle prevents unnecessary strain on workers and reduces the risk of pipe damage.



  • The Roller cradles are used in pipeline lay down operation. The rollers evenly distribute the pressure on the pipe, avoiding the risk of buckling the line pipe and preserving the coating. The use of polyurethane rollers eliminates the risk of damage the polyethylene or FBE pipe coating that can occur using regular steel wheel cradles.
  • In addition, high standard ropes made in China are provided with the cradle in order to ensure long lasting life and safe operation at site.
  • Suhigo brand roller cradles can be disassembled easily for fast site repair and maintenance and optimized storage and transport. Suhigo brand roller cradles comply with all applicable standards.

Pipeline Construction Pipe Roller Cradle For 305mm-610mm Lifting Devices 0







Technical Parameters of Suhigo roller cradle:

Model HGRC0612 HGRC1224 HGRC2436 HGRC3648 HGRC4860
Pipe Size(mm) 152~305 305~610 610~914 914~1219 1219~1524
Ambient temp(℃) -30~+70 -30~+70 -30~+70 -30~+70 -30~+70
Roller No. 28 28 28 28 28
Dia of Sling(mm) 18 22 22 30 30
Max Working Load (ton) 8 13 35 45 55
Dimension(m) 0.5x0.5x0.5 0.7x0.7x0.8 1.0x1.0x0.8 1.4x1.4x1.0 1.6x1.4x1.0
Weight(kg) 128 260 550 1100 1800



Technical Features of Suhigo roller cradle:

1) The pipe weight evenly distributed on the circumference of the steel wire rope roller

2) The roller bearing adopts NSK/SKF famous brand bearings, with large radial and axial bearing capacity

3) The roller bearing has the functions of sealing, waterproof and sand prevention

4) The roller moves flexibly to ensure that the pipe lay down smoothly

5) PU wheels provide protected pipe rolling, with better wear-resistance and longer lifetime

6) Replacement wheels readily available

7) Wire rope swaged sleeve assembly meets international standard

8) Roller cradle follow standard of CE, certificate for option





Pipeline Construction Pipe Roller Cradle For 305mm-610mm Lifting Devices 1Pipeline Construction Pipe Roller Cradle For 305mm-610mm Lifting Devices 2







About Suhigo





  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.





Pipeline Construction Pipe Roller Cradle For 305mm-610mm Lifting Devices 3





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
