16T Mini Crawler Carrier Pipeline Carrier For Pipe Transportation

16T Mini Crawler Carrier Pipeline Carrier For Pipe Transportation

Crawler Pipeline Carrier

16T Mini Crawler Carrier

16T Pipeline Carrier

Place of Origin:

Langfang, Hebei, China

Brand Name:

suhigo

Certification:

ISO-9001 CE

Model Number:

HGPC45

Contact Us

Request A Quote
Product Details
Length Of Track On Ground:
3340mm
Width Of Standard Shoes:
660mm/900mm
Number Of Track Rollers(each Side):
8x2
Traction Mode:
Winch
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
bargain
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

HGPC30 For pipe Dia 1219mm Good using experience Crawler Carrier to transport pipes to construction site



INTRODUCTION




Safety and protection are top priorities in pipe transportation. Pipe carriers are constructed with durable materials that can withstand the rigors of the journey. The cradles or racks are often lined with cushioning materials to minimize the risk of scratches, dents, or other damages to the pipes during transit. Additionally, advanced locking mechanisms and tie-downs are integrated into the carriers to ensure the pipes remain securely fastened throughout the transportation process, even when facing challenging road conditions.

Efficiency is another key aspect of pipe carriers. These carriers are designed to optimize the loading and unloading processes, streamlining the workflow at construction sites. Construction crews can efficiently load the pipes onto the carriers, minimizing the time and effort required. Upon arrival, the unloading process is similarly swift and hassle-free. By reducing the time spent on transportation logistics, pipe carriers contribute to enhanced productivity on construction projects.

In conclusion, pipe carriers are indispensable tools for transporting pipes to construction sites. Their adaptability, safety features, and efficiency make them vital assets in the construction industry. With their ability to securely handle a variety of pipes while ensuring their protection, pipe carriers play a crucial role in facilitating successful construction projects.

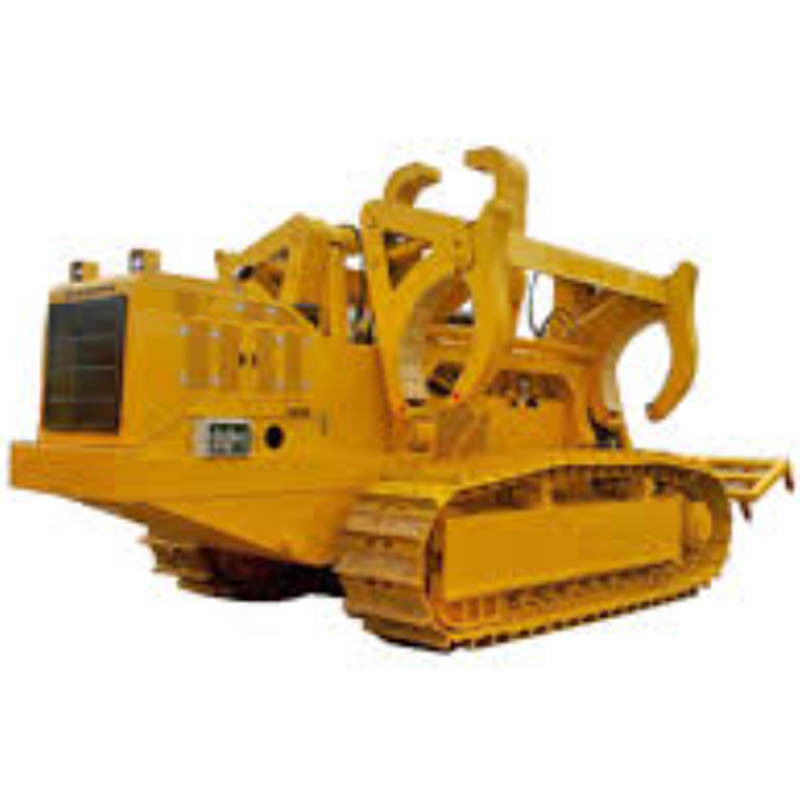

16T Mini Crawler Carrier Pipeline Carrier For Pipe Transportation 0
SPECIFITIONS


TEMS PARAMETERS
Model PMYG30
Max transportation capacity 16t
Max transportation diameter 1219mm
Operating weight(approximate) 22t
Overall dimensions 6061x3414x3360mm
Maximum tractive force 20t
Ground pressure 50kPa(Ballast),86kPa(full load)
Maximum grade ability 30°(Ballast),20°(full load)
Ground clearance 567mm
Environmental Condition Operating temperature:-15℃~+50℃,3000m below
Engine
Rated power 194kw
Rated speed 2200rpm
Travel system
Undercarriage Hydraulically undercarriage
Operating mode joystick and remote control
Travel speed Ⅰ:0~2.3km/h,Ⅱ:0~6km/h
Length of track on ground 3340mm
Width of standard shoes 660mm/900mm
Number of track rollers(each side) 8x2
Traction system
Traction mode winch
Tractive effort 10t
Length of rope 200m
Maximum speed 27m/min
Transportation system
Loading and unloading mode self loading and unloading

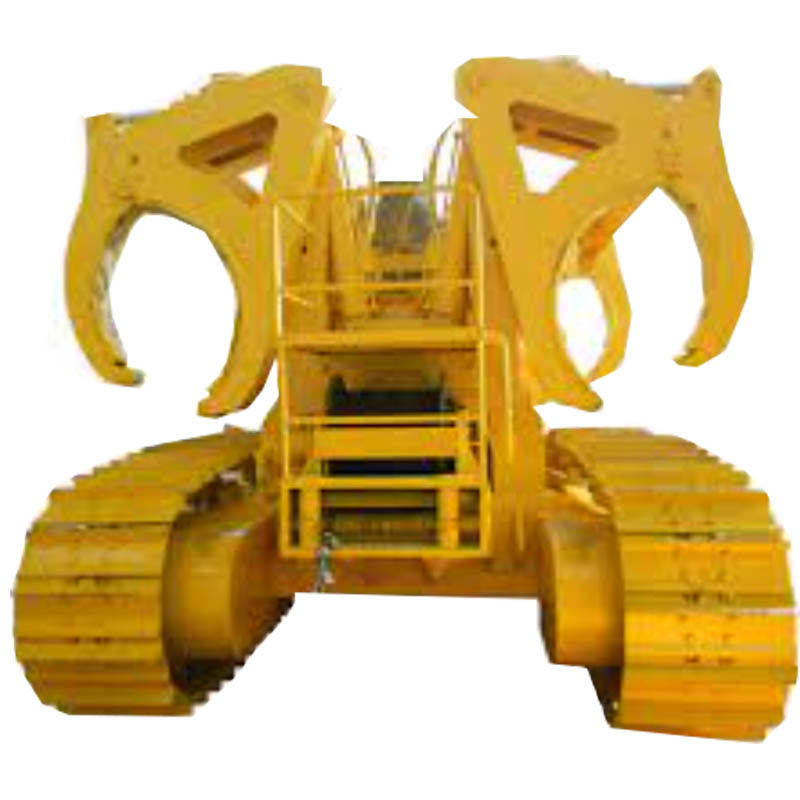

16T Mini Crawler Carrier Pipeline Carrier For Pipe Transportation 1


About Suhigo

  • As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  • Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



16T Mini Crawler Carrier Pipeline Carrier For Pipe Transportation 216T Mini Crawler Carrier Pipeline Carrier For Pipe Transportation 3







Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
