ISO 50HZ Pipeline Demagnetizer Pipe Demagnetizing Equipment

ISO 50HZ Pipeline Demagnetizer Pipe Demagnetizing Equipment

50HZ Pipeline Demagnetizer

50HZ Pipe Demagnetizing Equipment

ISO Pipeline Demagnetizer

Place of Origin:

China

Brand Name:

Suhigo

Certification:

ISO-9001 CE

Model Number:

HGXC

Contact Us

Request A Quote
Product Details
Name:
Pipeline Demagnetizer
Working Ambient Temperature:
-45~60
Input Voltage:
380V
Origin:
Hebei, China
Input Frequency:
50HZ
Protection Alarm Function:
Available
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
30days
Payment Terms
T/T, L/C
Supply Ability
Construction period 15-30 days
Product Description

HGXC series pipeline demagnetizer use of pipe Input Frequency 50HZ HIGH QUELITY tools




INTRODUCTION

  • A pipe demagnetizer is a specialized tool employed in pipeline construction to eliminate residual magnetism from pipes. Residual magnetism can be introduced during the manufacturing process or due to exposure to magnetic fields, and it can interfere with accurate inspection and welding operations.
  • The pipe demagnetizer operates by subjecting the pipes to an alternating magnetic field. This effectively neutralizes or reduces the residual magnetism present in the pipes. By demagnetizing the pipes, potential issues such as inaccuracies in magnetic-based inspection techniques and interference with welding procedures are mitigated.
  • During pipeline construction, accurate inspection is vital to detect any defects or weaknesses in the pipes. Magnetic-based inspection methods, including magnetic particle testing and magnetic flux leakage inspection, rely on a non-magnetic surface for precise results. The demagnetization process ensures that the pipes exhibit minimal or no magnetic properties, enabling reliable inspection outcomes.
  • Moreover, demagnetized pipes are less susceptible to attracting ferromagnetic particles, which could lead to corrosion or other operational challenges over time. By eliminating residual magnetism, the demagnetizer helps maintain the long-term integrity of the pipeline system.
  • In summary, a pipe demagnetizer is an essential tool in pipeline construction. It removes residual magnetism from pipes, allowing for accurate inspections, reliable welding procedures, and preventing potential long-term issues. By ensuring the pipes are free from magnetic interference, the demagnetizer contributes to the overall quality, safety, and durability of the constructed pipelines.

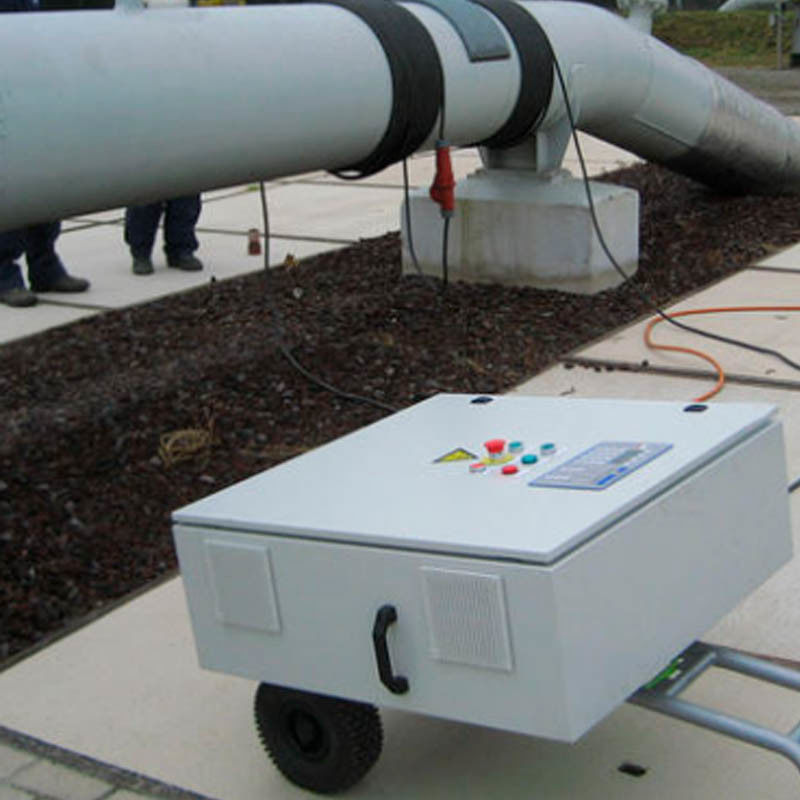

ISO 50HZ Pipeline Demagnetizer Pipe Demagnetizing Equipment 0





Main Parameters



Item Unit Main Parameters
Input Voltage VAC 380
Input Frequency HZ 50
Consumption Power KW 12
Wiping Current A Up to 2000A
Demagnetized Field Mt 500 (Port combination mode)
Protection Alarm Function - Available
Working Relative Humidity % ≤95
Working Ambient Temperature -45~60
Overall Dimension mm 500x400x450
Weight kg 35

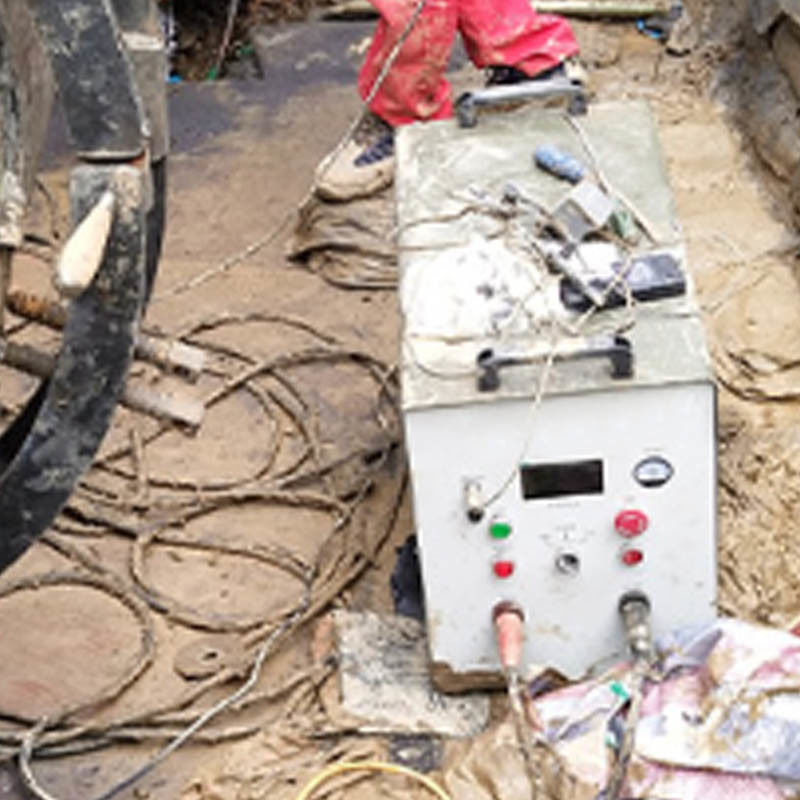

ISO 50HZ Pipeline Demagnetizer Pipe Demagnetizing Equipment 1
