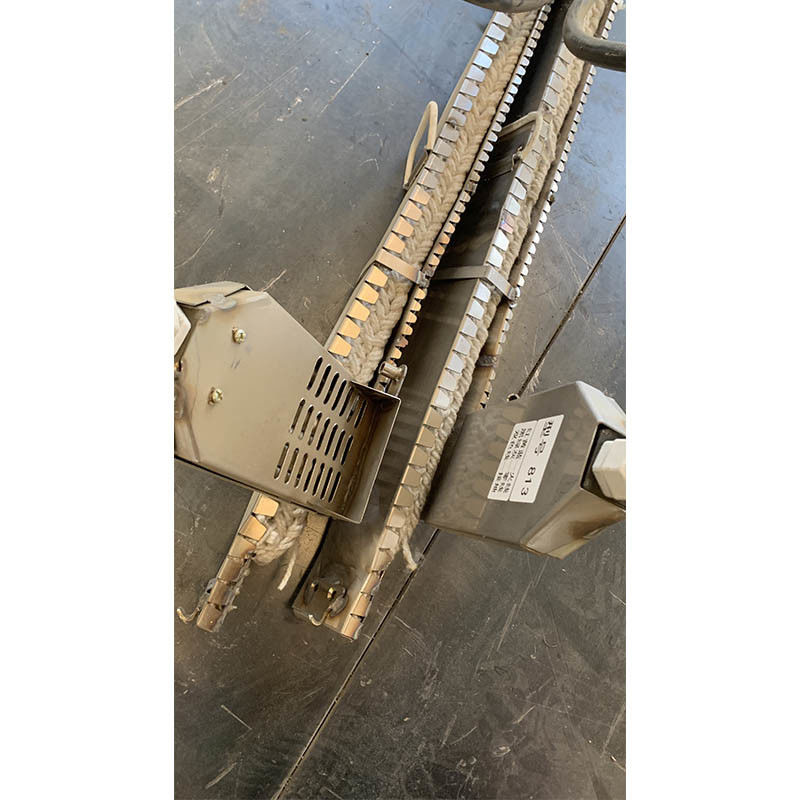

Pipeline Heating Cables Welding Preheat Equipment Self Regulating

Pipeline Heating Cables Welding Preheat Equipment Self Regulating

Pipeline Heating Cables

Welding Preheat Equipment Heating Cables

Self Regulating Pipeline Heating Cables

Place of Origin:

Langfang, Hebei, China

Brand Name:




Contact Us

Request A Quote
Product Details
Rated Voltage:
Rated Power:
9 X 2kw
3820 X 70 X 21mm
Pipeline Heating
Trace Heating System
Hebei China
Applicable Industries:
Manufacturing Factory, Construction Engineering
Belt Heater
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

Industrial Pipeline Heating Equipment, Welding Pipeline Tracing Hot Strip



Self regulating electric heating cables are suitable for temperature control, heating, insulation, and heating of pipelines, equipment, and containers, especially in areas where materials are prone to decomposition, deterioration, crystallization, condensation, and freezing. It has a wide range of sectors such as petroleum, chemical industry, electricity, metallurgy, light industry, food, refrigeration, construction, gas, agricultural and sideline product production, processing, etc.


Model Rated Voltage Rated Power Dimension
HGDB1219 (48in) 380/220VAC 9 x 2kw 3820 x 70 x 21mm
HGDB1016 (40in) 380/220VAC 7.5 x 2kw 3180 x 70 x 21mm
HGDB914 (36in) 380/220VAC 7 x 2kw 2860 x 70 x 21mm
HGDB813 (32in) 380/220VAC 6 x 2kw 2550 x 70 x 21mm
HGDB711 (28in) 380/220VAC 4.5 x 2kw 2230 x 70 x 21mm
HGDB660 (26in) 380/220VAC 4.5 x 2kw 2070 x 70 x 21mm
HGDB610 (24in) 380/220VAC 4 x 2kw 1910 x 70 x 21mm
HGDB559 (22in) 380/220VAC 4 x 2kw 1750 x 70 x 21mm
HGDB508 (20in) 380/220VAC 3.5 x 2kw 1590 x 70 x 21mm
HGDB406 (16in) 380/220VAC 3 x 2kw 1430 x 70 x 21mm


1. When less heat is required, energy-saving self regulating cables use less energy.
2. Easy to install, can be cut into any length on site (maximum circuit length).
3. The installation cost is lower than steam tracing, with less maintenance costs and less downtime.
4. It can be overlapped once without burning, which simplifies the heat tracing of online process equipment such as valves, elbows, and pumps.
5. Due to self-regulation, explicit conditions are minimized.
6. The connection kit can reduce installation time.


Pipeline Heating Cables Welding Preheat Equipment Self Regulating 0
