Track Pipe Carrier Pipeline Machines Crawler Type Carrier ISO Approval

Track Pipe Carrier Pipeline Machines Crawler Type Carrier ISO Approval

Track Pipe Carrier Pipeline Machines

Crawler Type Carrier

ISO Crawler Type Carrier

Place of Origin:

Langfang, Hebei, China

Brand Name:

suhigo

Certification:

ISO-9001

Model Number:

HGY1016

Contact Us

Request A Quote
Product Details
Weight (t):
22
Applicable Pipe Size (mm):
610~1016
Dimension (mm):
6061 X 3414 X 3360
Operation Mode:
Local /remote
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
bargain
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

joystick control Track Carrier pipe carrier






INTRODUCTION



  • Crawler type pipe carrier is a special long distance pipeline construction equipment. Through remote control or local joystick control, the pipe carrier could realize traveling, pipe loading and off loading, traveling with traction or other functions, especially suitable for montane area, swamp area, hilly area and other tough conditions.
  • Looking to acquire more information in crawler pipe carrier? Instant quote will be provided once we receive your email. With many years’ experiences in design and production of crawler type pipe carrier, Suhigo definitely could offer best support and price.

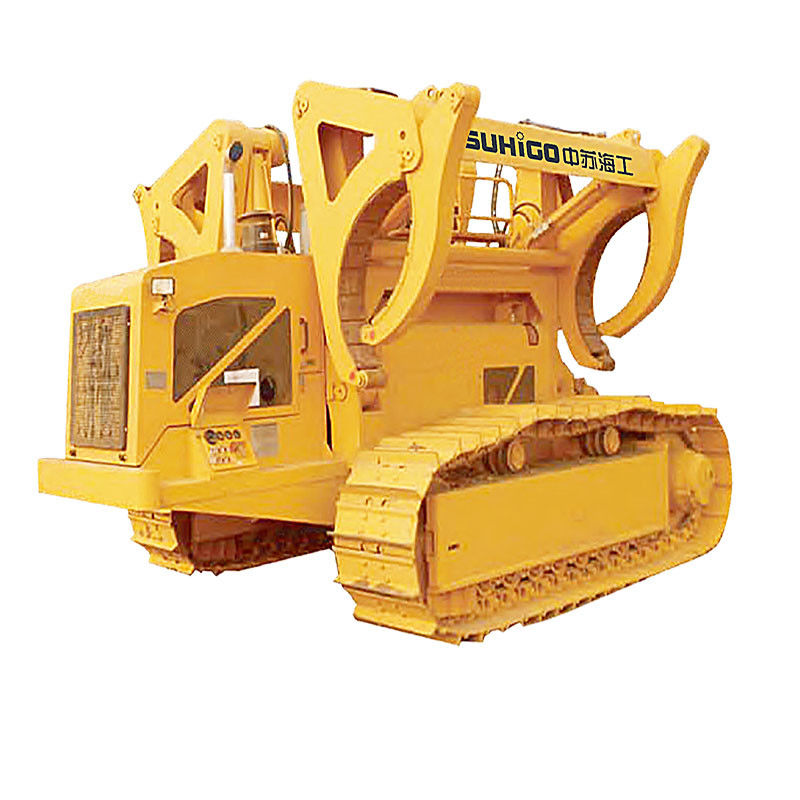

Track Pipe Carrier Pipeline Machines Crawler Type Carrier ISO Approval 0





Technical Parameters of Crawler type pipe carrier:



Model HGY1016 HGY1422
Applicable Pipe Size (mm) 610~1016 813~1422
Acceptable Pipe Weight, Max (t) 16 30
Weight (t) 22 38
Dimension (mm) 6061 x 3414 x 3360 8036 x 3190 x 3397
Operation mode Local /remote Local /remote
Grade ability (%) 58 58
Walking System HGY1016 HGY1422
Engine Emission Country III emission Country III emission
Engine Rated Power(kw/rpm) 194 /2200 298 /2100
Transmission type Electric control / closed full hydraulic
Theoretical Speed- Low (km/h) 0~2.3 0~2
Theoretical Speed- High (km/h) 0~6 0~5.6
Track Gauge (mm) 2380 2400~3400 (adjustable)
Width of track shoes (mm) 660 800





Technical Features of Crawler type pipe carrier:

1) Multi-functions including track type traveling function, anchor function, traction function, pipe loading/offloading function etc.

2) Reasonable design with smart movement, ensure pipe carrier travelling safely in mountain area and tough areas

3) Advanced technology with full hydraulic transmission

4) Traveling and traction function adopt advanced hydrostatic transmission, simple structure and easy maintenance

5) Control system adopt international industrial controller and components, ensure stable and reliable operation

6) Clamp device own hydraulic pressure maintaining function, ensure pipe carrying safety

7) Adopt 5 cylinders and water cool Cummins engine with 260hp, strong power and convenient maintenance backup

8) Remote control and local joystick control both available, to achieve convenient operation
