OHSAS Crawler Pipelayer HGY Pipeline Layer 760mm Track Width

OHSAS Crawler Pipelayer HGY Pipeline Layer 760mm Track Width

OHSAS Crawler Pipelayer

HGY Pipeline Layer

OHSAS Pipeline Layer

Place of Origin:

China

Brand Name:

Suhigo

Certification:

CE

Model Number:

HGY70

Contact Us

Request A Quote
Product Details
Product Name:
HGY70 Pipe Layer
Certification:
ISO9001 OHSAS18001 CE
Applicable Industries:
Farms, Retail, Construction Works , Energy & Mining
Mobile Type:
Tracked Construction Machinery
Size:
5630×3400×3540mm
Applicable Temperature:
-45℃~+60℃
Color:
Yellow And Red
Transmission:
Planetary Gears, Forced Lubrication Power Shift
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

Made In China Crawler Pipe Layer Large Pipe Hanger HGY Series




Itrodution

1. The chassis of the pipelayer adopt Komatsu technology to increase the torque design and improve the stability .
2. With high quality roller and good quantity rollers, enhance the bearing capacity and long service life of the equipment.







Model HGY70
Moving system Operation

Operating lever



speed Forward (2) 3.6/6.6 km/h
Reverse (2) 4.4/7.8 km/h
Track grounding length 3620mm
Track width 760mm
Number of rollers 9×2
Lifting system Variable form Wire rope luffing
Operation method Hydraulic control handle



Boom

Boom length 7600/8600mm
Lifting height 6100/7050mm
Boom angle 0~86°
Hook speed (6-8 times rate) 0~7.0 m/min
Amplitude time (4-5 times) 32s



Feature

The lifting system adopts open hydraulic transmission with gear pump oil supply with strong anti pollution ability and self-priming ability, with stable transmission, stepless speed change, good micro motion performance and strong adaptability.
The lifting hook and boom luffing are controlled by hydraulic winch, and the counterweight retraction and release are controlled by hydraulic oil cylinder, which meets the requirements for efficiency and accuracy during pipe crane operation.
The boom is welded with HG60 high-strength steel, with light weight and high strength.

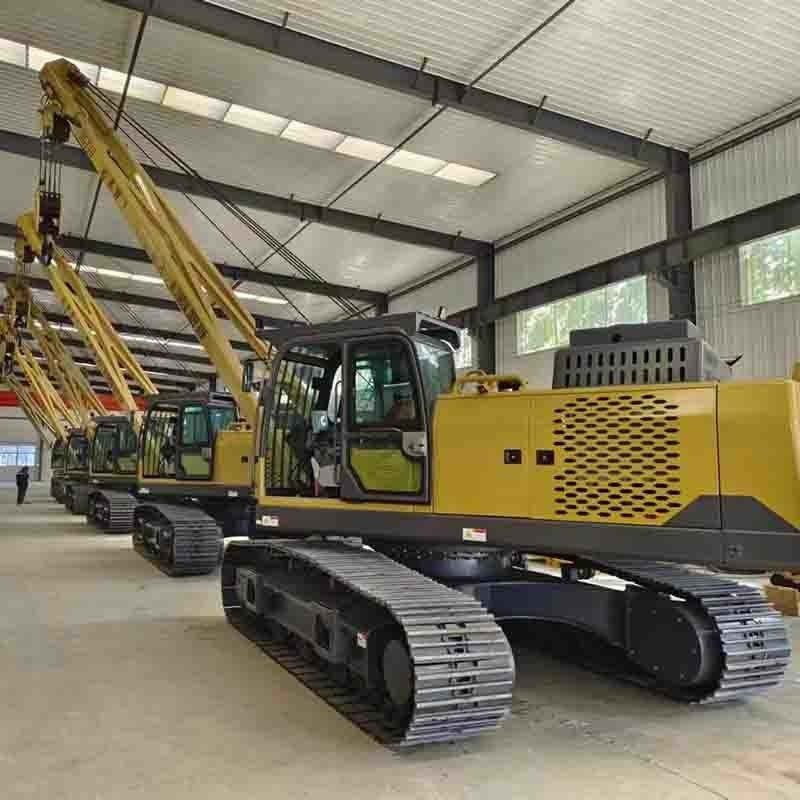

OHSAS Crawler Pipelayer HGY Pipeline Layer 760mm Track Width 0

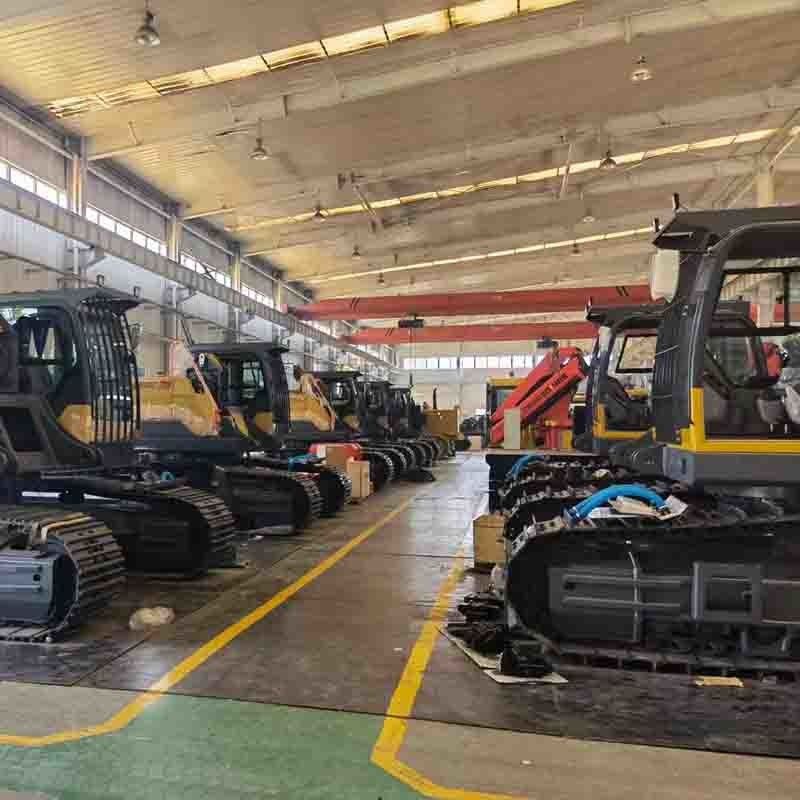

OHSAS Crawler Pipelayer HGY Pipeline Layer 760mm Track Width 1







About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



OHSAS Crawler Pipelayer HGY Pipeline Layer 760mm Track Width 2

OHSAS Crawler Pipelayer HGY Pipeline Layer 760mm Track Width 3

OHSAS Crawler Pipelayer HGY Pipeline Layer 760mm Track Width 4





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
