16" External Pipe Clamp 406mm External Clamp For Pipeline Welding

16" External Pipe Clamp 406mm External Clamp For Pipeline Welding

406mm External Clamp For Pipeline Welding

External Pipe Clamp 406mm

16" External Pipe Clamp

Place of Origin:

Langfang, Hebei, China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
External Pipe Clamp
Hebei, China
Applicable Pipe Size:
406mm (16in)
46 Kg
Out Dimension:
Φ660 X 230mm
Tightening Force:
5 Tons
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

HGWD406 External Clamp Pipeline Construction Equipments for pipeline works


Suhigo produces various types of external clamps, including fine-tuning locking external clamps, hydraulic jack locking external clamps, etc. HGWD series External Clamps are applicable to various pipe diameters, butt joint and angle butt joint of various pipe bends.

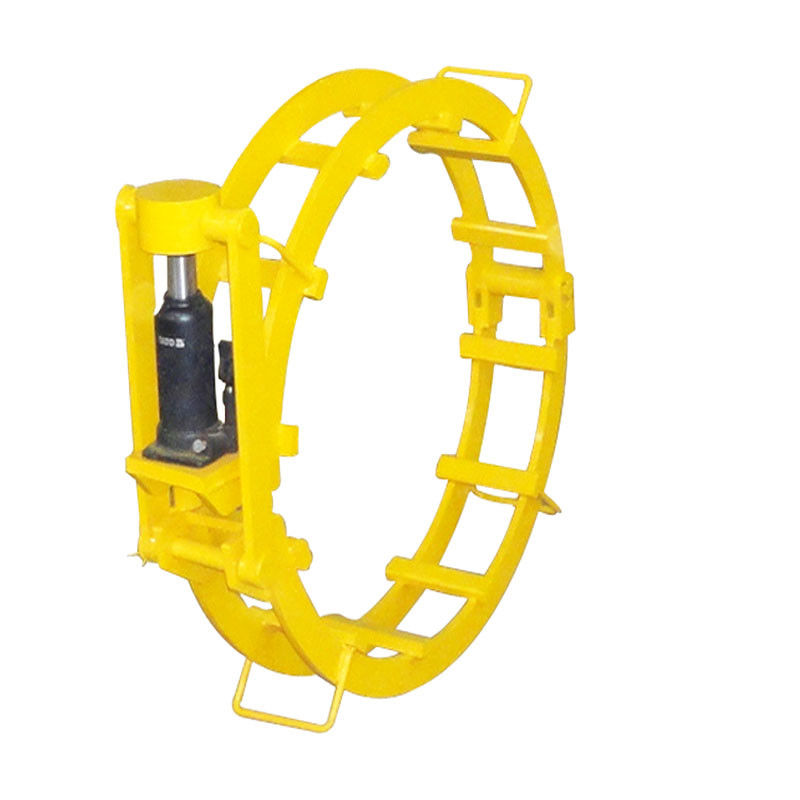

The hydraulic external clamp is mainly used for the assembly of two welded pipe orifices in the construction of long-distance pipeline. The power source is manpower or hydraulic jack. The equipment has the advantages of flexible operation, excellent technical performance, convenient handling and low failure rate.

The equipment is made by heat treatment process and welded structure. It is mainly composed of locking device and opening / closing device, simple operation


16" External Pipe Clamp 406mm External Clamp For Pipeline Welding 0



Technical Parameters of Suhigo External Clamp:


Model Applicable Pipe Size Weight Out Dimension Tightening Force
HGWD406 406mm (16in) 46 kg Φ660 x 230mm 5 tons
HGWD508 508mm (20in) 62 kg Φ770 x 230mm 5 tons
HGDW610 610mm (24in) 70 kg Φ870 x 230mm 5 tons
HGDW711 711mm (28in) 97 kg Φ970 x 230mm 5 tons
HGDW813 813mm (32in) 110 kg Φ1070 x 230mm 8 tons
HGDW914 914mm (36in) 130 kg Φ1180 x 230mm 8 tons
HGDW1016 1016mm (40in) 146 kg Φ1270 x 230mm 10 tons
HGDW1167 1167mm (46in) 155 kg Φ1420 x 230mm 10 tons
HGDW1219 1219mm (48in) 168 kg Φ1520 x 230mm 10 tons
HGDW1422 1422mm (56in) 195 kg Φ1700 x 230mm 10 tons


Technical Features of External Clamp:

1) Convenient installation and simple operation

2) Fast and high precision of line-up

3) Light weight and easy to carry

4) Strong practicability and wide application
