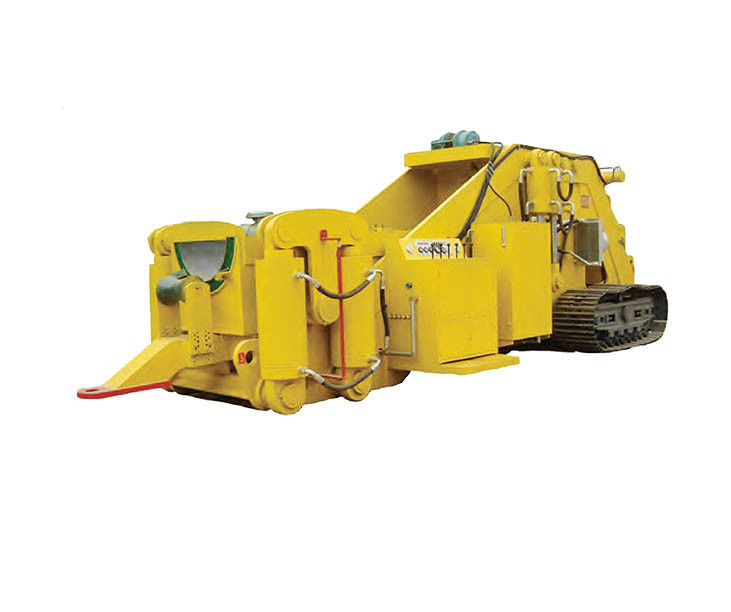

56" Mandrel Pipe Bending Machine Pipeline Hydraulic Mandrel Bender

56" Mandrel Pipe Bending Machine Pipeline Hydraulic Mandrel Bender

56" Mandrel Pipe Bending Machine

Pipeline Hydraulic Mandrel Bender

56" Pipeline Mandrel Bender

Place of Origin:

China

Brand Name:

Suhigo

Certification:

ISO-9001 CE

Model Number:

HGCB620

Contact Us

Request A Quote
Product Details
Lift Cylinder:
4-280x200mm
Hydraulic Winch Tension:
12 Ton
Weight:
93 Tons
Engine Power:
160kw
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

Made In China Pipe Bending Machine High Quality For Pipeline Construction Best supplier




INTRODUCTION



The pipe bending machine is composed of steel frame, lower mold, upper mold, fixture, hydraulic system and mandrel. Its working principle is to make the steel pipe plastic deformation and realize the cold bending of the steel pipe by determining the reasonable fulcrum and stress point and applying bending torque. During bending operation, various large-diameter steel pipes within the applicable range can be cold bent by replacing the die kit and corresponding mandrel.



HGCB series vertical hydraulic pipe bending machine (also called pipe bender) is a specialized equipment for pipeline construction, it is designed and manufactured by Suhigo after introducing advanced technology; the design also considered the actual jobsite operation conditions to make it more user friendly.

Suhigo pipe bending machine is defined according to the pipe diameter, we have 6 models pipe bender to fit for 6~56in pipelines application. At the same time, Suhigo manufacturer mandrel, key component of vertical hydraulic pipe bender.



Technical Parameters of Suhigo Bening Machine:

Model HGCB620 HGCB1630 HGCB2236 HGCB2840 HGCB3648 HGCB4856
Pipe Size 6~20in 16~30in 22~36in 28~40in 36~48in 48~56in
Engine Power 46kw 77kw 118kw 132kw 160kw 160kw
Master cylinder 2-220x160mm 2-280x200mm 4-320x230mm 4-360x250mm 4-450x560mm 4-360x560mm
Lift cylinder 2-180x63mm 2-200x80mm 4-220x90mm 4-250x100mm 4-280x200mm 4-280x200mm
Hydraulic winch tension 1.5 ton 3 ton 7 ton 7 ton 8 ton 12 ton
Dimension 4450x2180x2175mm 6700x2520x2700mm 8400x3000x2800mm 8850x3180x3000mm 9800x3335x3235mm 8566x3190x3500mm
Weight 10 tons 21 tons 42 tons 50 tons 68 tons 93 tons



Technical Features of Suhigo Bening Machine:

1) The operation of all devices is controlled by the hydraulic system, safe and convenient

2) Adopt Cummins national three emission diesel engine and power pack, and low-temperature preheating system can be selected for option, with reliable performance and can adapt to severe work conditions.

3) The hydraulic system adopts top brand components such as Rexroth, and adopts unique preheating and cooling system, which improves the working efficiency and prolongs the service life.

4) The pipe bending operation can be carried out for pipes of different sizes within the scope of application of the pipe bending machine only by replacing the pipe bending die kit and the corresponding mandrel, the replacement is simple and convenient.

5) The whole machine has simple and reasonable structure and easy maintenance. The steel frame made of high-strength steel has long service life and excellent low temperature resistance.

6) Traction crawler walking device or wheel walking device (both are optional) is suitable for field operation, can be selected to the actual working environment.







56" Mandrel Pipe Bending Machine Pipeline Hydraulic Mandrel Bender 0



Technical Features of mandrel:

1) Base mandrel can be converted to a larger size by using the conversion kit.

2) Self-propelled available from 16"to 60'

3) Polyurethane coated backing bars and wheels to protect internally coated pipe.

4) Simple design and few parts results in low maintenance cost

5) One man operation for expanding, retracting and traveling.

6) Double angle hardened steel wedges provide fast approach and powerful locking action.

7) Wedges will accommodate several wall thicknesses without changing shims

8) Uses the hydraulic system of the pipe bending machine for power.

9) Tapered wheels eliminate rolling.
