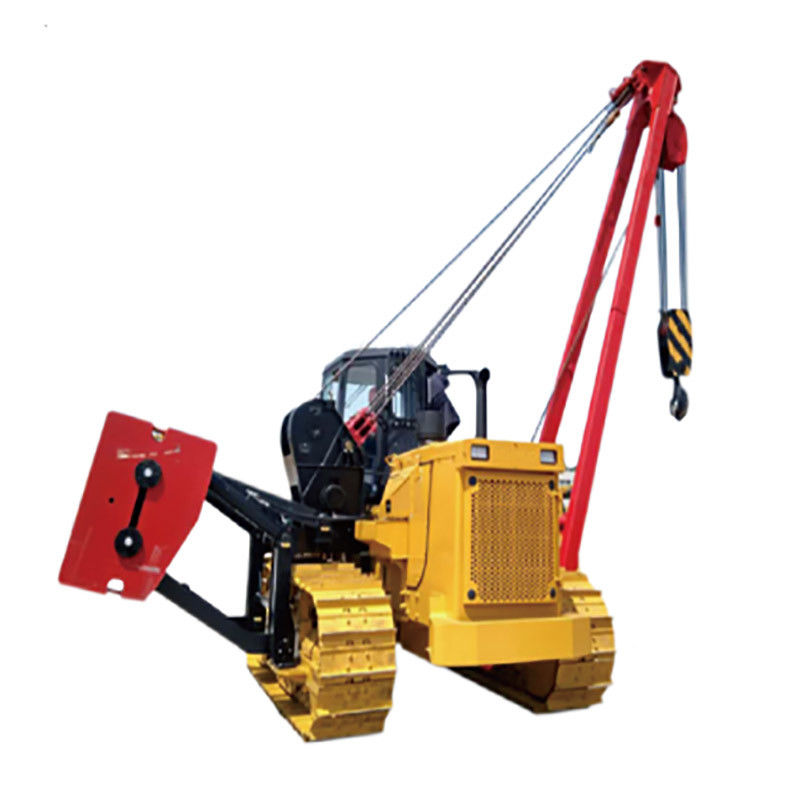

Suhigo Hydraulic Pipelayer Pipeline Machines 100000lb Lifting Capacity

Suhigo Hydraulic Pipelayer Pipeline Machines 100000lb Lifting Capacity

Suhigo Hydraulic Pipelayer

Hydraulic Pipelayer Pipeline Machines

100000lb Hydraulic Pipelayer

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Pipe Layer
Mobile Type:
Tracked Construction Machinery
Applicable Industries:
Building Material Stores
Operation Mode:
Hydraulic Control
Planetary Gears, Forced Lubrication Power Shift
Applicable Temperature:
ISO9001 OHSAS18001 CE
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
Payment Terms
T/T, L/C
Product Description

Suhigo Manufacture Pipeline Construction Hydraulic Pipe Layer


  • A low-temperature starting device is added to the whole machine, and the working device adopts full hydraulic drive, which mainly realizes three actions: lifting and lowering of the hook; swinging of the boom; lifting and lowering of the counterweight. An integral hydraulic winch drives the boom and hook separately. The jib is made of low-alloy high-strength steel and has a strong box-section welded structure. The pipelayer is equipped with a pipelayer intelligent monitor, hook automatic limit device and boom automatic limit device to monitor and control the working conditions of the pipelayer in real time. The pipelayer series products have good fretting performance and have the function of fast hook drop.






Technical Features of Suhigo Pipelayer:


1) The high-strength pipelayer special chassis adopts large gauge design to improve the stability of the whole machine, making it more suitable for the side lifting condition

2) Complete safety devices to ensure lifting safety

3) Smooth transmission system

4) The hoisting system adopts full hydraulic transmission, with stable transmission and good fretting performance

5) Simple and convenient operation; Strong adaptability


Technical parameters

Model HGY45
Maximum lifting capacity 45t/ 100000lb
Rated lifting weight 38t/83000lb
Operating Weight 35t/77000lb
Overall size(mm) 4750×3350×3270
Host transportation quality 26t
Average grounding ratio 85.2KPa
Minimum ground clearance 490mm
Maximum climbing ability 25°
Applicable temperature -45~+60




Model Cummins NT855-C280
Rated power 169KW
Rated speed 2000rpm




Suhigo Hydraulic Pipelayer Pipeline Machines 100000lb Lifting Capacity 0Suhigo Hydraulic Pipelayer Pipeline Machines 100000lb Lifting Capacity 1




About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.


Engine HGY25 HGY45 HGY70 HGY90
Model SDEC SC11CB Cummins NT855-C280 NT855-C360 Cummins NT855-C360
Rated Power 120kw / 160hp 169kw /225hp 257kw / 340hp 257kw / 340hp
Rated Speed 1850RPM 2000rpm 2000rpm 2000rpm


Lifting System HGY25 HGY45 HGY70 HGY90
Variable Mode Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing
Operation Mode Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick
Boom-Length 6000mm 7500 / 8500mm 7600 / 8600mm 8600 / 9600mm
Boom-Lifting Height 4909mm 6400 / 7400mm 6100 / 7050mm 7050 / 8110mm
Boom Angle 0~85° 0~86° 0~86° 0~86°
Hook Speed (6~8times rate) 0~12.0m/min 0~6.2m/min 0~7.0m/min 0~7.0m/min
Luffting Time (4~5times) 25S 20s 32s 40s


Suhigo Hydraulic Pipelayer Pipeline Machines 100000lb Lifting Capacity 2

Suhigo Hydraulic Pipelayer Pipeline Machines 100000lb Lifting Capacity 3



Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
