0.5Mpa To 0.8Mpa Pipe Welding Alignment Clamp With Copper Backing Shoes

0.5Mpa To 0.8Mpa Pipe Welding Alignment Clamp With Copper Backing Shoes

0.8Mpa Pipe Alignment Clamp

0.5Mpa Pipe Alignment Clamp

0.8Mpa Pipe Welding Alignment Clamp

Place of Origin:

Langfang, Hebei, China

Brand Name:




Contact Us

Request A Quote
Product Details
Pipe Beveler
Fuel Tank Capacity:
Metal, Carbon Steel
Electric System:
Pipe Clamp
Measurement System:
Working Pressure:
0.5mpa To 0.8mpa
Oil And Gas Pipeline Welding
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

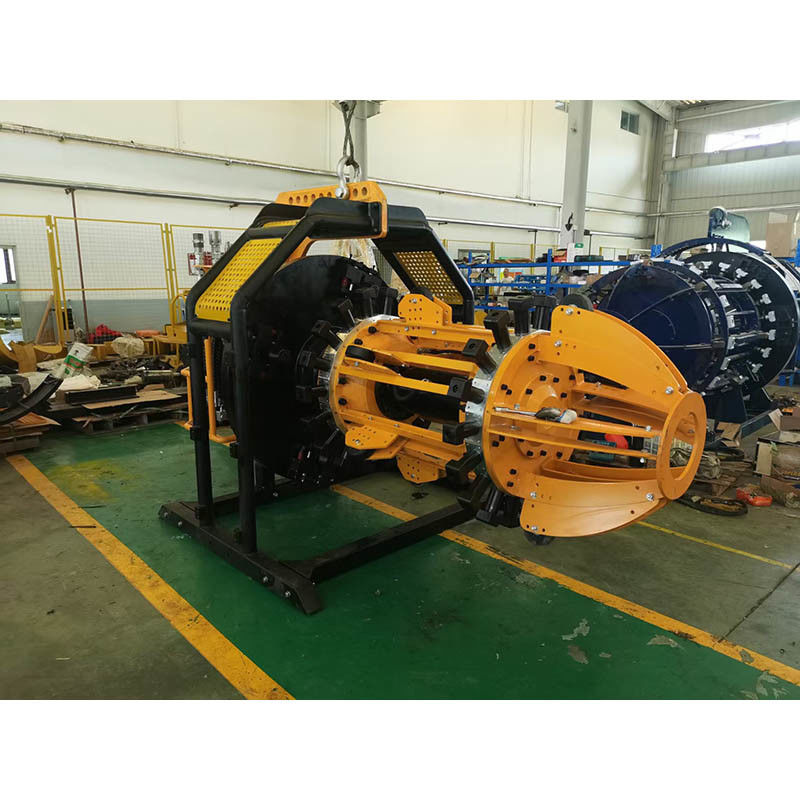

Pneumatic Pipe Alignment Clamp Pipe Fitting Clamp Internal Line Up Clamp With Copper Backing Shoes




When need to adapt to different wall thicknesses, the equipment can be quickly, conveniently and accurately adjusted in place to provide high work efficiency. Fundamentally put an end to supporting the dead center. In previous cases, pipe jamming accidents have never occurred

Model Pipe Size Piston No.s Piston Power L W H Weight Cube
(mm) (KN) (mm) (mm) (mm) (kg) (m3)
HGDNQ6’’ 168 6X2 134 1473 150 150 36 .04
HGDNQ8’’ 219 6X2 209 1593 189 189 53 .06
HGDNQ10’’ 273 6X2 382 1665 240 240 60 .09
HGDNQ12-14’’ 305-357 6X2 405 1751 280 280 100 .14



1) Compact design, Safe and reliable performance

Reasonable design and controllable production process ensure the machining accuracy and dimensional accuracy of various parts, so as to ensure the parts performance.

2) High alignment accuracy and wide application range

The core working parts are selected from international famous brands and processed by structural parts CNC machining center, to achieve high alignment accuracy of the alignment components.

3) Expanded application

By replacing the expansion blocks, the adapter can meet the needs of pipeline size changing in a certain range, expand the application range of the adapter and realize one machine with multiple functions.

4) Clean, efficient, environmental protection, strong climbing ability and strong passing ability

Compressed air is used as power, clean, efficient and meets the requirements of HSE construction management.

World famous brand pneumatic motor and compact structure design, save energy, and has strong climbing capacity (>20°) and strong passing capacity (30 times D)


0.5Mpa To 0.8Mpa Pipe Welding Alignment Clamp With Copper Backing Shoes 0


Model Pipe Size Piston No.s Piston Power Motor Power Motor Nos. L W H Weight Cube
(mm) (KN) (hp) (mm) (mm) (mm) (kg) (m3)
HGDNQ16-18’’ 406-457 8x2 959 1 1 2132 360 360 188 .29
HGDNQ20-22’’ 508-559 10x2 1057 1.5 1 2434 480 480 296 .59
HGDNQ22-24’’ 559-610 12x2 1268 1.5 1 2500 530 530 390 .72
HGDNQ24-26’’ 610-660 12x2 1268 1.5 1 2672 580 580 418 .90
HGDNQ28-30’’ 711-762 12x2 1748 1.5 1 2700 670 670 512 1.2
HGDNQ30-32’’ 762-813 14x2 2937 3 1 2938 690 690 733 1.4
HGDNQ34-36’’ 864-914 16x2 2937 3 1 3020 790 790 779 1.8
HGDNQ36-38’’ 914-965 18x2 2937 3 1 3188 860 860 865 2.4


About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

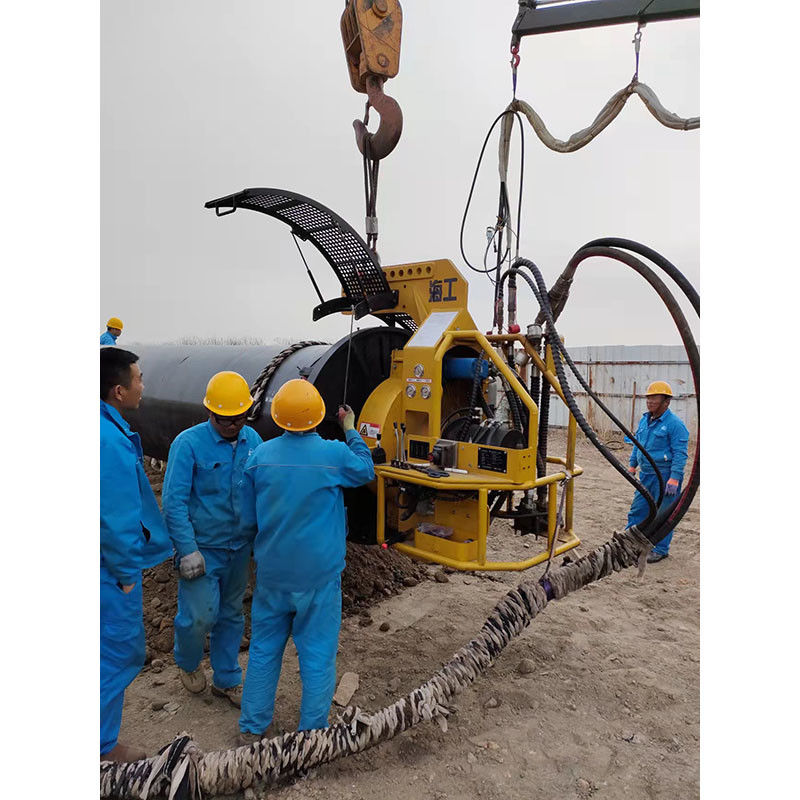

Pipe  Alignment And Pipe Lay Down Operation In Mountain Areas And Plain Areas. 3
