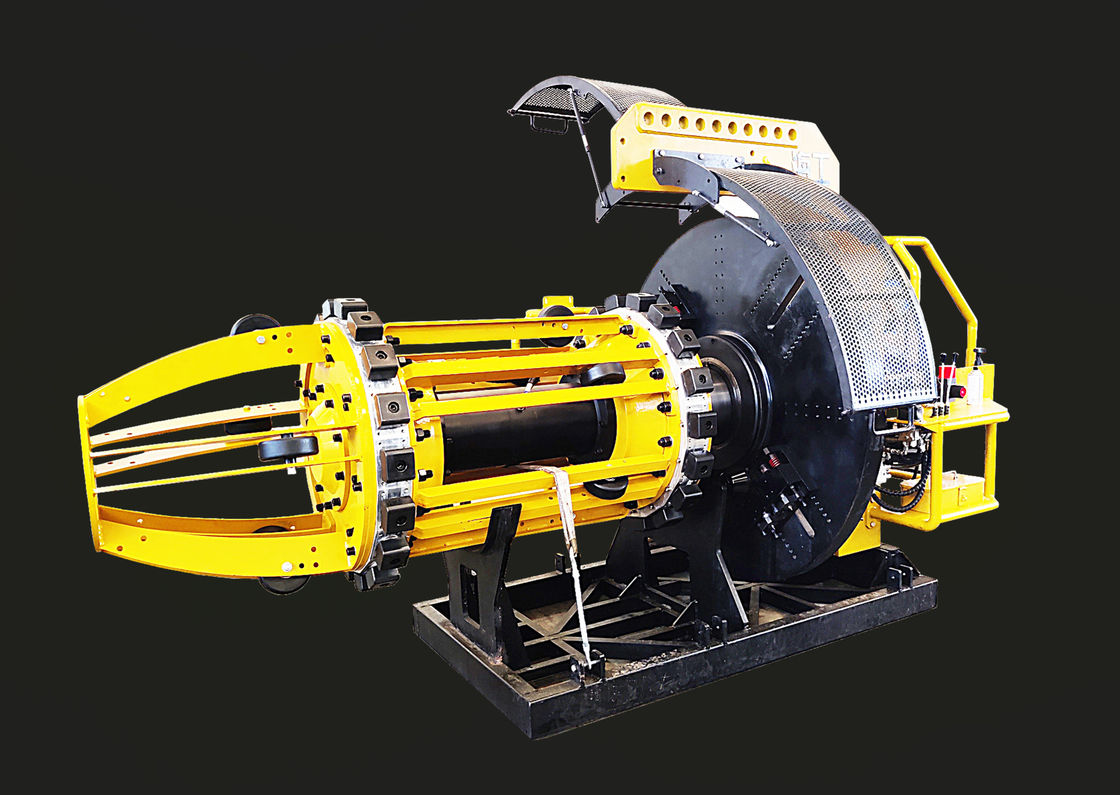

Pipeline Internal Clamp Pipe Beveler Machine Internal Pipe Line Up Clamps

Pipeline Internal Clamp Pipe Beveler Machine Internal Pipe Line Up Clamps

Pipeline Internal Clamp Pipe Beveler

Pipeline Pipe Beveler Machine

Internal Pipe Line Up Clamps

Place of Origin:

Langfang, Hebei, China

Brand Name:




Contact Us

Request A Quote
Product Details
Fuel Tank Capacity:
Measurement System:
Metal, Carbon Steel
Electric System:
Pipe Clamp
Pipe Beveler
Working Pressure:
0.5mpa To 0.8mpa
Oil And Gas Pipeline Welding
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

Fundamentally Put An End To Supporting The Dead Center. In Previous Cases, Pipe Jamming Accidents Have Never Occurred




1. Internal Line Up Clamp Pipe diameters : cover ranges in standard from 6’’ up to 80.

2. FESTO or Norgren pneumatic component from Germany. Luoyang Deping own patented design for air discharge valve with easy operation and low equipment defect rate.
3. Various technology for multiple usage, pneumatic, hydraulic ensuring quality welds in all welding positions.
4. With or without copper backing according to applications available
5. The Internal Pneumatic Line Up Clamp is for pipe laying barge and onshore project use.
6. The hose connections utilize cone sealing, using compressed hose covered by a steel wire protective layer. The hose and fittings adopt Eaton , Parker or equivalent brand.
Item Unit Main Parameters
Model - HGK0814 HGK1624 HGK2430 HGK3240 HGK3648 HGK4856
Pipe Size - 8-14 16-24 24-30 32-40 36-48 48-56
Pipe Wall Thickness m m'm 10-22 10-22 14.6-30 14.6-30 14.6-50 14.6-50
Spindle Rotation Speed rpm 0-40 0-40 0-40 0-40 0-40 0-40
Spindle Feed Speed mm/min 0-10 0-10 0-10 0-10 0-10 0-10
Cutterblock No - 2-3 3-4 4 4 4 4
Cutting Stroke mm 90 90 90 90 90 90
Weight t 1.2 2.5 3.5 4 4.2 4.5





1) Compact design, Safe and reliable performance

Reasonable design and controllable production process ensure the machining accuracy and dimensional accuracy of various parts, so as to ensure the parts performance.

2) High alignment accuracy and wide application range

The core working parts are selected from international famous brands and processed by structural parts CNC machining center, to achieve high alignment accuracy of the alignment components.

3) Expanded application

By replacing the expansion blocks, the adapter can meet the needs of pipeline size changing in a certain range, expand the application range of the adapter and realize one machine with multiple functions.

4) Clean, efficient, environmental protection, strong climbing ability and strong passing ability

Compressed air is used as power, clean, efficient and meets the requirements of HSE construction management.

World famous brand pneumatic motor and compact structure design, save energy, and has strong climbing capacity (>20°) and strong passing capacity (30 times D)



Pipeline Internal Clamp Pipe Beveler Machine Internal Pipe Line Up Clamps 0


Model Pipe Size Piston No.s Piston Power Motor Power Motor Nos. L W H Weight Cube
(mm) (KN) (hp) (mm) (mm) (mm) (kg) (m3)
HGDNQ16-18’’ 406-457 8x2 959 1 1 2132 360 360 188 .29
HGDNQ20-22’’ 508-559 10x2 1057 1.5 1 2434 480 480 296 .59
HGDNQ22-24’’ 559-610 12x2 1268 1.5 1 2500 530 530 390 .72
HGDNQ24-26’’ 610-660 12x2 1268 1.5 1 2672 580 580 418 .90
HGDNQ28-30’’ 711-762 12x2 1748 1.5 1 2700 670 670 512 1.2
HGDNQ30-32’’ 762-813 14x2 2937 3 1 2938 690 690 733 1.4
HGDNQ34-36’’ 864-914 16x2 2937 3 1 3020 790 790 779 1.8
HGDNQ36-38’’ 914-965 18x2 2937 3 1 3188 860 860 865 2.4


About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.

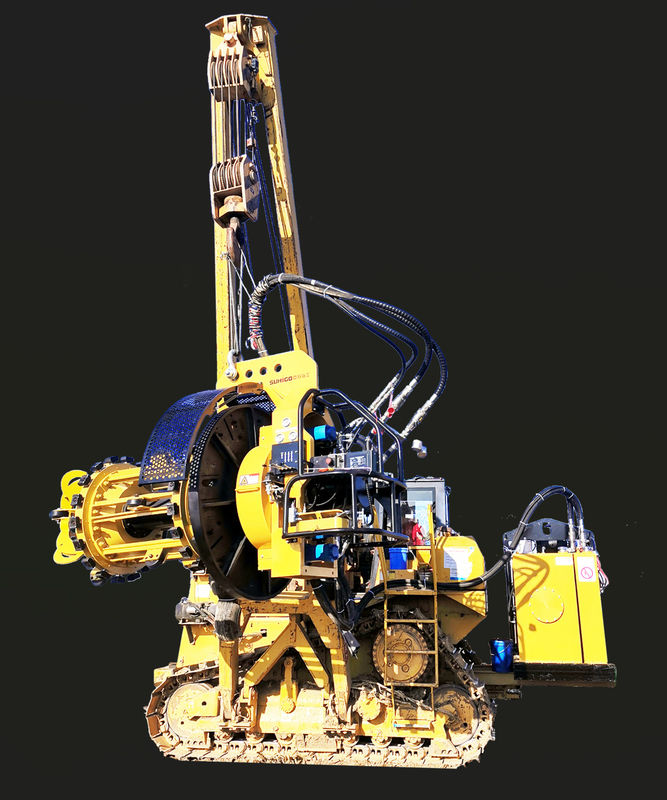

Pipe  Alignment And Pipe Lay Down Operation In Mountain Areas And Plain Areas. 3
