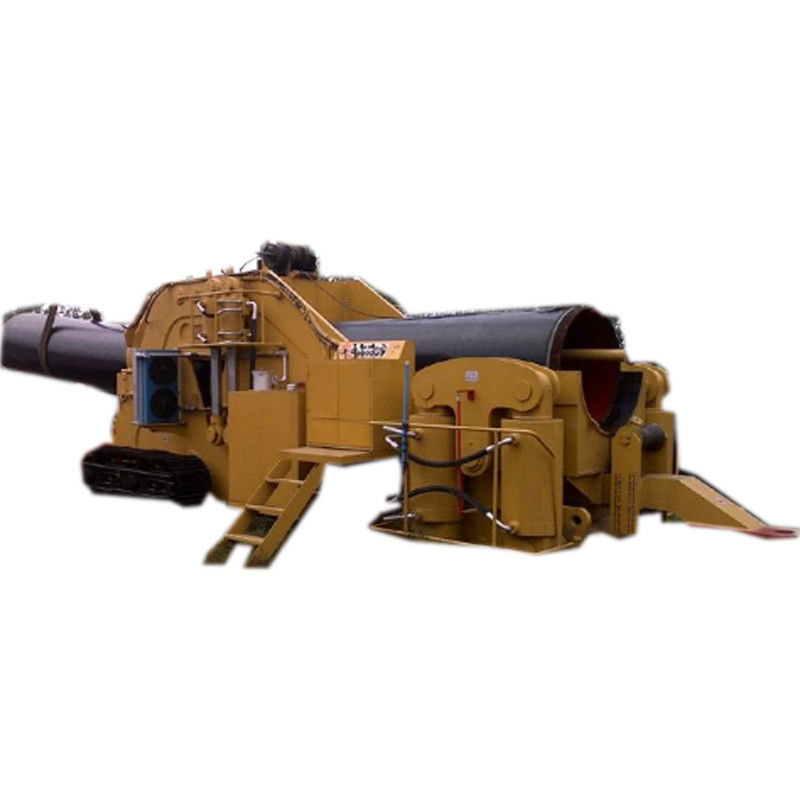

Inclined Block Pipeline Cold Bending Machine For 28 In -40 In Pipe

Inclined Block Pipeline Cold Bending Machine For 28 In -40 In Pipe

Inclined Block Pipeline Cold Bending Machine

28In Pipeline Cold Bending Machine

40In Pipeline Cold Bending Machine

Place of Origin:

China

Brand Name:

Suhigo

Certification:

ISO-9001 CE

Contact Us

Request A Quote
Product Details
Machine Type:
Pipe Bending Machine
Application:
Pipeline Construction Machinery
Engine Power:
160kw
Weight:
93 Tons
Lift Cylinder:
4-280x200mm
Hydraulic Winch Tension:
12 Ton
Core Components:
Motor, Pump, Engine
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Seaworthy- Integral wax spraying anti-corrosion
Delivery Time
70days
Payment Terms
T/T, L/C
Product Description

China Hydraulic Pipeline Cold Bending Machine For Pipe Bender On Pipeline Equipment




INTRODUCTION

The inclined block mandrel is suitable for the manufacture of 16 "~ 60" pipe bender. It realizes the expansion function through the relative movement of the inclined block, provides constraints for the pipe wall and prevents the deformation of bending pipe. At the same time, through its self-propelled function, it can realize the flexible movement of mandrel in the steel pipe.



Technical Parameters of Suhigo Bening Machine:

Model HGCB620 HGCB1630 HGCB2236 HGCB2840 HGCB3648 HGCB4856
Pipe Size 6~20in 16~30in 22~36in 28~40in 36~48in 48~56in
Engine Power 46kw 77kw 118kw 132kw 160kw 160kw
Master cylinder 2-220x160mm 2-280x200mm 4-320x230mm 4-360x250mm 4-450x560mm 4-360x560mm
Lift cylinder 2-180x63mm 2-200x80mm 4-220x90mm 4-250x100mm 4-280x200mm 4-280x200mm
Hydraulic winch tension 1.5 ton 3 ton 7 ton 7 ton 8 ton 12 ton
Dimension 4450x2180x2175mm 6700x2520x2700mm 8400x3000x2800mm 8850x3180x3000mm 9800x3335x3235mm 8566x3190x3500mm
Weight 10 tons 21 tons 42 tons 50 tons 68 tons 93 tons

Technical Features of Suhigo Bening Machine:

1) The operation of all devices is controlled by the hydraulic system, safe and convenient

2) Adopt Cummins national three emission diesel engine and power pack, and low-temperature preheating system can be selected for option, with reliable performance and can adapt to severe work conditions.

3) The hydraulic system adopts top brand components such as Rexroth, and adopts unique preheating and cooling system, which improves the working efficiency and prolongs the service life.

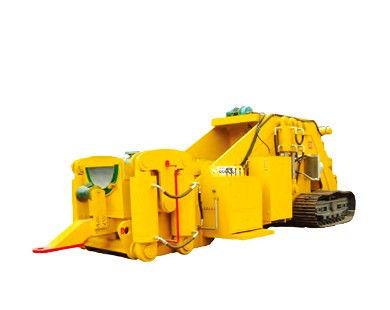

Inclined Block Pipeline Cold Bending Machine For 28 In -40 In Pipe 0





About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



HGY Series High-Strength Side Arm Crawler Pipe Oil Equipment Sold For Pipeline Construction 1

HGY Series High-Strength Side Arm Crawler Pipe Oil Equipment Sold For Pipeline Construction 2

HGY Series High-Strength Side Arm Crawler Pipe Oil Equipment Sold For Pipeline Construction 3





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
