1422mm Dia Pipe Carrier Tracked Vehicle Pipeline Carrier Construction

1422mm Dia Pipe Carrier Tracked Vehicle Pipeline Carrier Construction

Tracked Vehicle Pipeline Carrier

1422mm Dia Pipe Carrier

1422mm Pipeline Carrier

Place of Origin:

Langfang, Hebei, China

Brand Name:

suhigo

Certification:

ISO-9001

Model Number:

HGPC40

Contact Us

Request A Quote
Product Details
Operation And Management Capability:
18t
Max Dia Of Pipe:
1422mm
Weight:
24t
Dimension:
6061x3414x3360mm
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
bargain
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

HGPC30 Crawler pipe carrier for Pipeline construction Yellow pipe carring equipment Pipe Dia 1219mm



INTRODUCTION



A pipe carrier used in pipeline construction is a heavy-duty vehicle specifically designed for transporting pipes. It is typically a large, specialized truck or trailer equipped with features to accommodate the transportation and handling of pipes. Here are some common characteristics and components of a pipe carrier:

1. Structure: The carrier has a robust framework and chassis designed to support the weight of the pipes and ensure stability during transportation.

2. Load Capacity: It is built to carry multiple pipes simultaneously, with adjustable racks or cradles to securely hold the pipes in place. The carrier's load capacity can vary depending on the size and length of the pipes being transported.

3. Loading and Unloading Mechanisms: Pipe carriers often feature loading and unloading mechanisms such as hydraulic systems, cranes, or winches. These mechanisms assist in lifting, positioning, and releasing the pipes onto the carrier or at the construction site.

4. Safety Features: Pipe carriers are equipped with safety measures such as securing devices, tie-downs, and protective structures to prevent pipes from shifting or falling during transport, ensuring the safety of workers and the integrity of the pipes.

5. Mobility: They are designed to navigate various terrains encountered in pipeline construction, including rough roads, uneven surfaces, and off-road environments. The carrier may have specialized tires, suspension systems, or other features to enhance its mobility.

6. Lighting and Signage: Pipe carriers often have proper lighting and reflective markings to ensure visibility and compliance with transportation regulations, especially when operating on public roads.

Overall, pipe carriers play a crucial role in the logistics of pipeline construction, allowing for the efficient and secure transportation of pipes to and within construction sites.

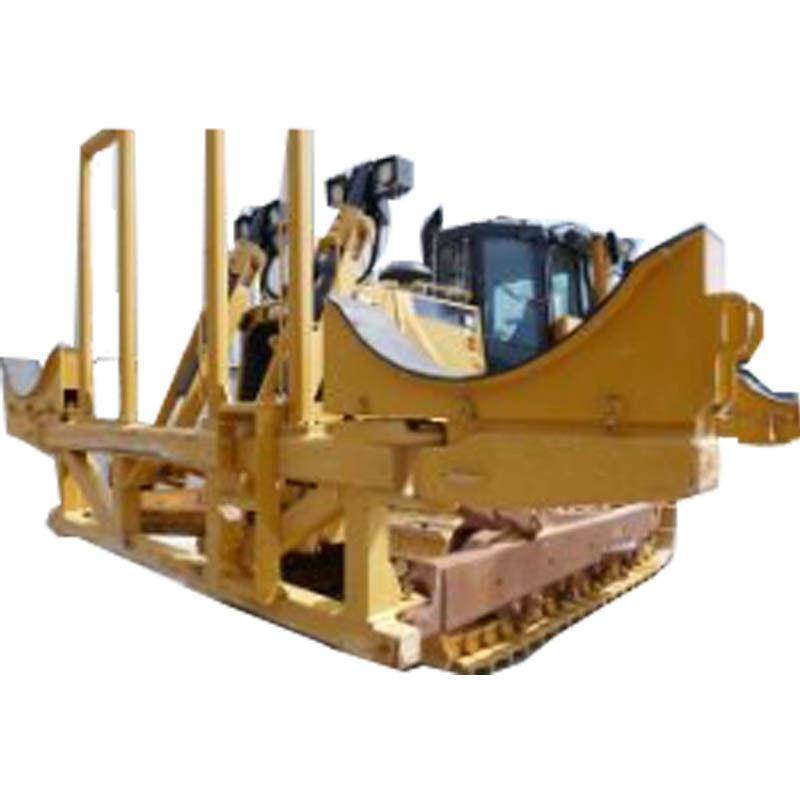

1422mm Dia Pipe Carrier Tracked Vehicle Pipeline Carrier Construction 0
SPECIFITIONS



TEMS PARAMETERS
Model PMYG30
Max transportation capacity 16t
Max transportation diameter 1219mm
Operating weight(approximate) 22t
Overall dimensions 6061x3414x3360mm
Maximum tractive force 20t
Ground pressure 50kPa(Ballast),86kPa(full load)
Maximum grade ability 30°(Ballast),20°(full load)
Ground clearance 567mm
Environmental Condition Operating temperature:-15℃~+50℃,3000m below
Engine
Rated power 194kw
Rated speed 2200rpm
Travel system
Undercarriage Hydraulically undercarriage
Operating mode joystick and remote control
Travel speed Ⅰ:0~2.3km/h,Ⅱ:0~6km/h
Length of track on ground 3340mm
Width of standard shoes 660mm/900mm
Number of track rollers(each side) 8x2
Traction system
Traction mode winch
Tractive effort 10t
Length of rope 200m
Maximum speed 27m/min
Transportation system
Loading and unloading mode self loading and unloading

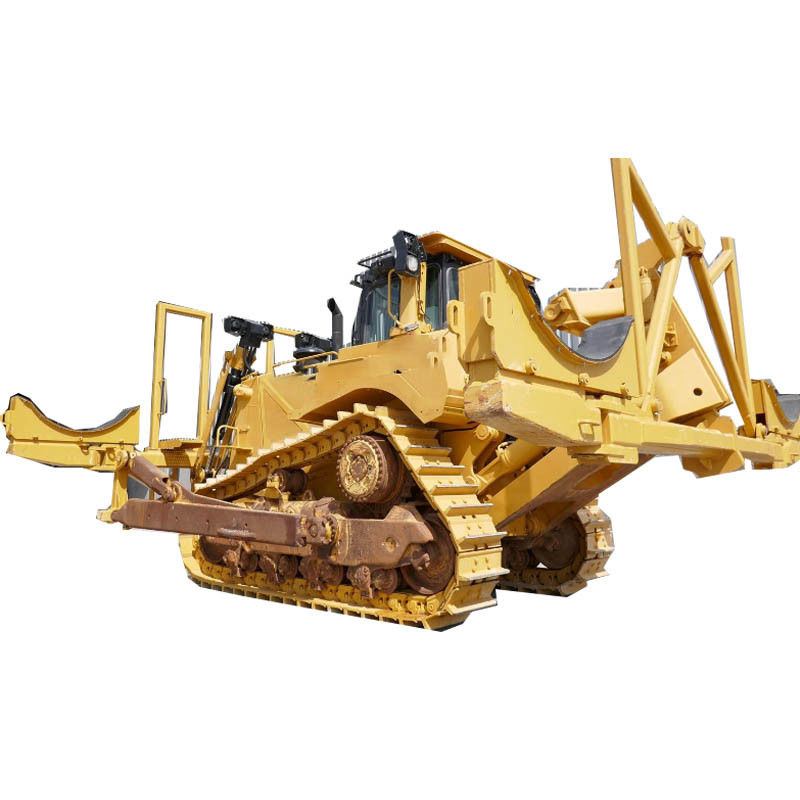

1422mm Dia Pipe Carrier Tracked Vehicle Pipeline Carrier Construction 1


About Suhigo

  • As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  • Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



1422mm Dia Pipe Carrier Tracked Vehicle Pipeline Carrier Construction 21422mm Dia Pipe Carrier Tracked Vehicle Pipeline Carrier Construction 3







Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
