1219mm Pipe Crawler Carrier Pipeline Machines For Construction Industry

1219mm Pipe Crawler Carrier Pipeline Machines For Construction Industry

Pipe Crawler Carrier

1219mm Crawler Carrier

Crawler Carrier Pipeline Machines

Place of Origin:

Langfang, Hebei, China

Brand Name:

suhigo

Certification:

ISO-9001 CE

Model Number:

HGPC30

Contact Us

Request A Quote
Product Details
Maximum Tractive Force:
20t
Maximum Grade Ability:
30°(Ballast)、20°(full Load)
Ground Clearance:
567mm
Environmental Condition:
Operating Temperature:-15℃~+50℃、3000m Below
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
bargain
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

HGPC30 Crawler pipe carrier for Pipeline construction Yellow pipe carring equipment Pipe Dia 1219mm


 HGPC30 Crawler pipe carrier yellow body pipe carring equipment tracked vehicle safety work
INTRODUCTION


  • Pipe carriers play a crucial role in the construction industry by facilitating the safe and efficient transportation of pipes to job sites. These specialized equipment are designed to securely hold and transport pipes of various sizes and lengths, ensuring they arrive intact and ready for installation.
  • Typically mounted on trucks or trailers, pipe carriers feature adjustable cradles or racks that can accommodate different pipe dimensions. The cradles are often lined with protective padding or rubber to prevent scratches or damage to the pipes during transit. Some carriers may also include locking mechanisms or tie-downs to provide additional stability and security during transportation.
  • One of the key advantages of pipe carriers is their versatility. They can be customized to handle different pipe materials such as PVC, steel, or concrete. Moreover, the carriers are designed to withstand the rigors of transportation, including bumpy roads or uneven terrain, while keeping the pipes securely in place.

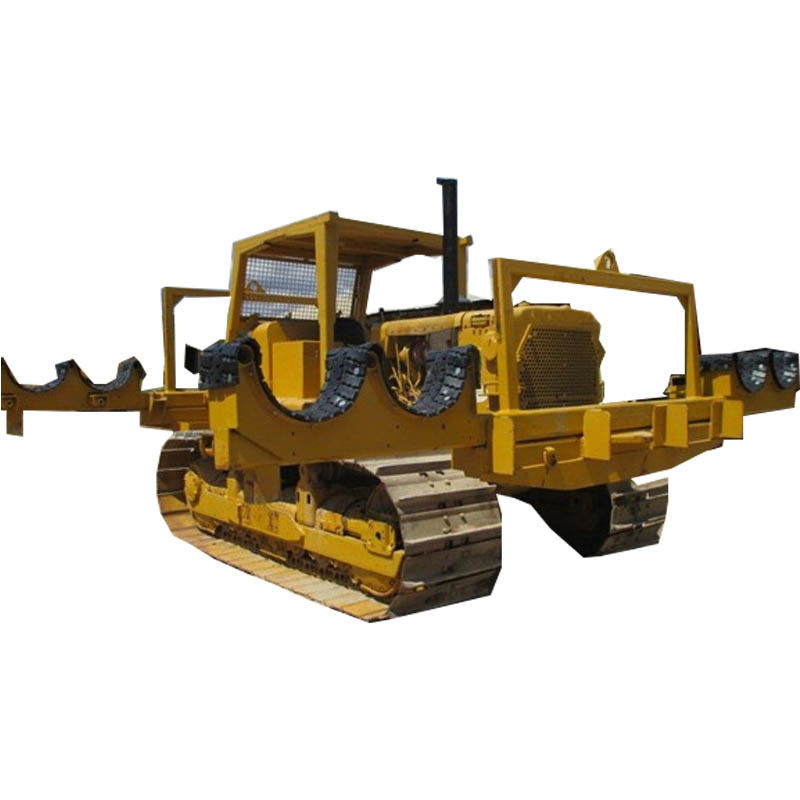

1219mm Pipe Crawler Carrier Pipeline Machines For Construction Industry 0
SPECIFITIONS


TEMS PARAMETERS
Model PMYG30
Max transportation capacity 16t
Max transportation diameter 1219mm
Operating weight(approximate) 22t
Overall dimensions 6061x3414x3360mm
Maximum tractive force 20t
Ground pressure 50kPa(Ballast),86kPa(full load)
Maximum grade ability 30°(Ballast),20°(full load)
Ground clearance 567mm
Environmental Condition Operating temperature:-15℃~+50℃,3000m below
Engine
Rated power 194kw
Rated speed 2200rpm
Travel system
Undercarriage Hydraulically undercarriage
Operating mode joystick and remote control
Travel speed Ⅰ:0~2.3km/h,Ⅱ:0~6km/h
Length of track on ground 3340mm
Width of standard shoes 660mm/900mm
Number of track rollers(each side) 8x2
Traction system
Traction mode winch
Tractive effort 10t
Length of rope 200m
Maximum speed 27m/min
Transportation system
Loading and unloading mode self loading and unloading

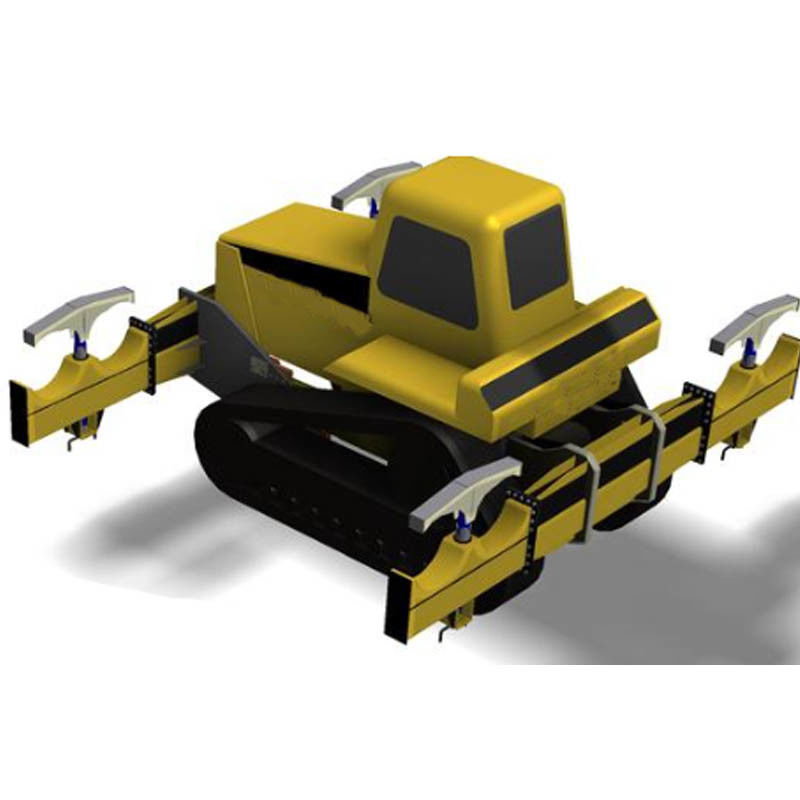

1219mm Pipe Crawler Carrier Pipeline Machines For Construction Industry 1


About Suhigo

  • As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  • Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



1219mm Pipe Crawler Carrier Pipeline Machines For Construction Industry 21219mm Pipe Crawler Carrier Pipeline Machines For Construction Industry 3







Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
