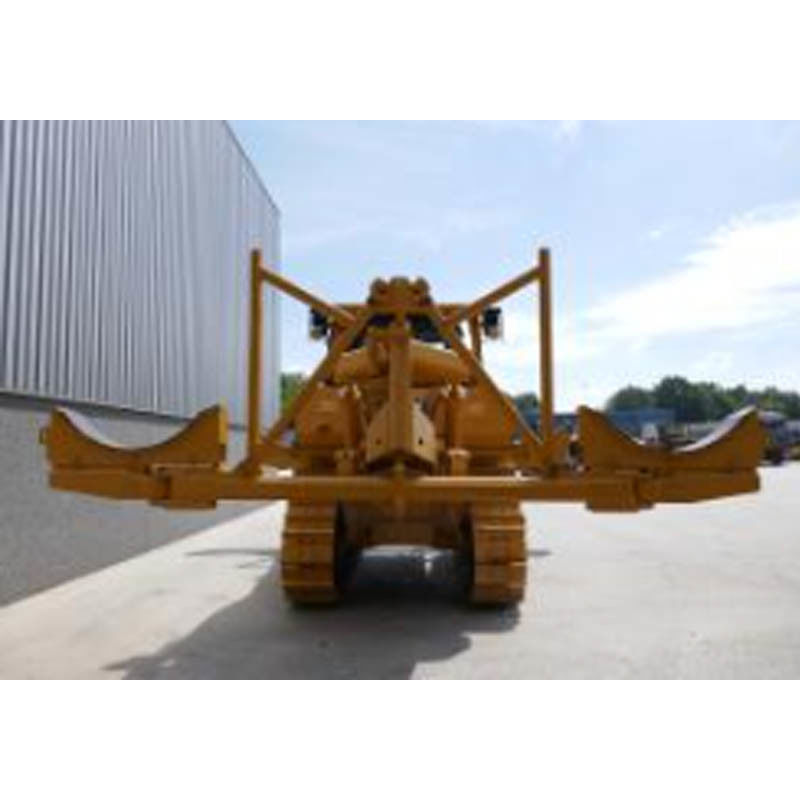

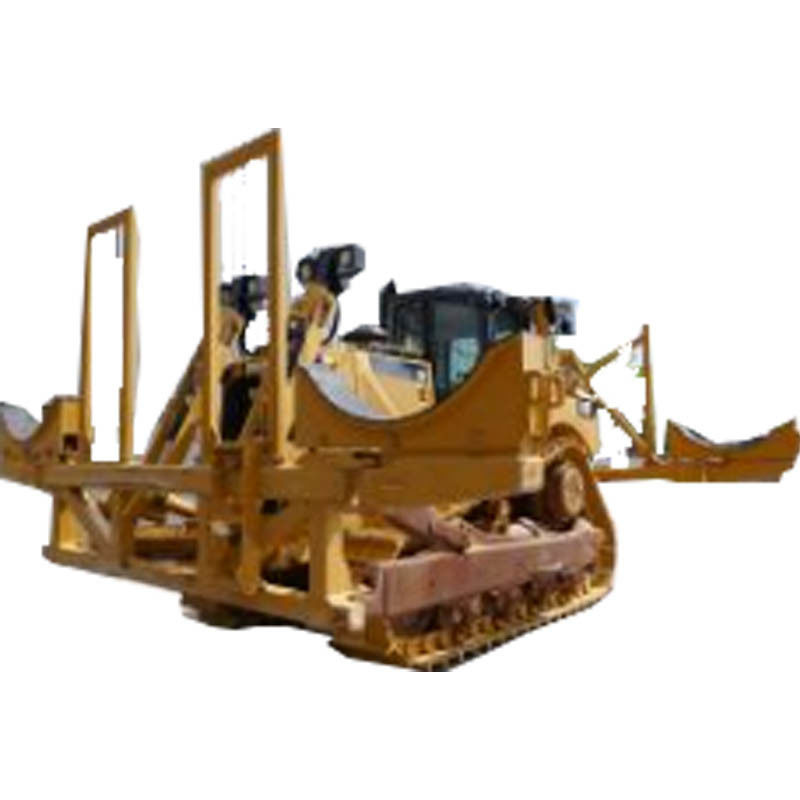

Yellow Pipeline Crawler Carrier For Dia 1219mm Pipeline Construction

Yellow Pipeline Crawler Carrier For Dia 1219mm Pipeline Construction

Yellow Pipeline Crawler Carrier

Dia 1219mm Crawler Carrier

Pipeline Construction Carrier

Place of Origin:

Langfang, Hebei, China

Brand Name:



ISO-9001 CE

Model Number:


Contact Us

Request A Quote
Product Details
Engine Rated Power:
Engine Rated Speed:
Travel System Undercarriage:
Hydraulically Undercarriage
Travel Speed:
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Packaging Details
Wooden box+wrapping film
Delivery Time
15 days -30 days.
Supply Ability
Construction period 15-30 days
Product Description

HGPC45 Yellow body High safety working equipment Crawler carrier For pipeline construction Pipe Dia 1219mm



Transporting pipes to construction sites necessitates reliable and efficient equipment, and that's where pipe carriers come into play. These specialized carriers are designed to handle the demanding task of securely conveying pipes, ensuring they reach their destination intact and ready for installation.

When it comes to pipe carriers, versatility is paramount. They are equipped with adjustable cradles or racks that can accommodate pipes of different sizes and lengths. The carriers are meticulously designed to accommodate various pipe materials, ranging from lightweight PVC pipes to heavy-duty steel or concrete pipes. This adaptability allows construction crews to transport a wide range of pipes, catering to the unique needs of each project.

Efficiency is a notable benefit of using pipe carriers. By efficiently organizing and securing the pipes, these carriers allow for easy loading and unloading processes at the construction site. This helps save time and labor, enabling construction crews to focus on other essential tasks.

In conclusion, pipe carriers are essential equipment for transporting pipes to construction sites. Their sturdy construction, adjustable features, and protective measures ensure that pipes arrive safely and are ready for installation. By streamlining the transportation process, pipe carriers contribute to the overall efficiency and productivity of construction projects.

Yellow Pipeline Crawler Carrier For Dia 1219mm Pipeline Construction 0

Model PMYG30
Max transportation capacity 16t
Max transportation diameter 1219mm
Operating weight(approximate) 22t
Overall dimensions 6061x3414x3360mm
Maximum tractive force 20t
Ground pressure 50kPa(Ballast),86kPa(full load)
Maximum grade ability 30°(Ballast),20°(full load)
Ground clearance 567mm
Environmental Condition Operating temperature:-15℃~+50℃,3000m below
Rated power 194kw
Rated speed 2200rpm
Travel system
Undercarriage Hydraulically undercarriage
Operating mode joystick and remote control
Travel speed Ⅰ:0~2.3km/h,Ⅱ:0~6km/h
Length of track on ground 3340mm
Width of standard shoes 660mm/900mm
Number of track rollers(each side) 8x2
Traction system
Traction mode winch
Tractive effort 10t
Length of rope 200m
Maximum speed 27m/min
Transportation system
Loading and unloading mode self loading and unloading

Yellow Pipeline Crawler Carrier For Dia 1219mm Pipeline Construction 1

About Suhigo

  • As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  • Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.


Yellow Pipeline Crawler Carrier For Dia 1219mm Pipeline Construction 2Yellow Pipeline Crawler Carrier For Dia 1219mm Pipeline Construction 3




Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
