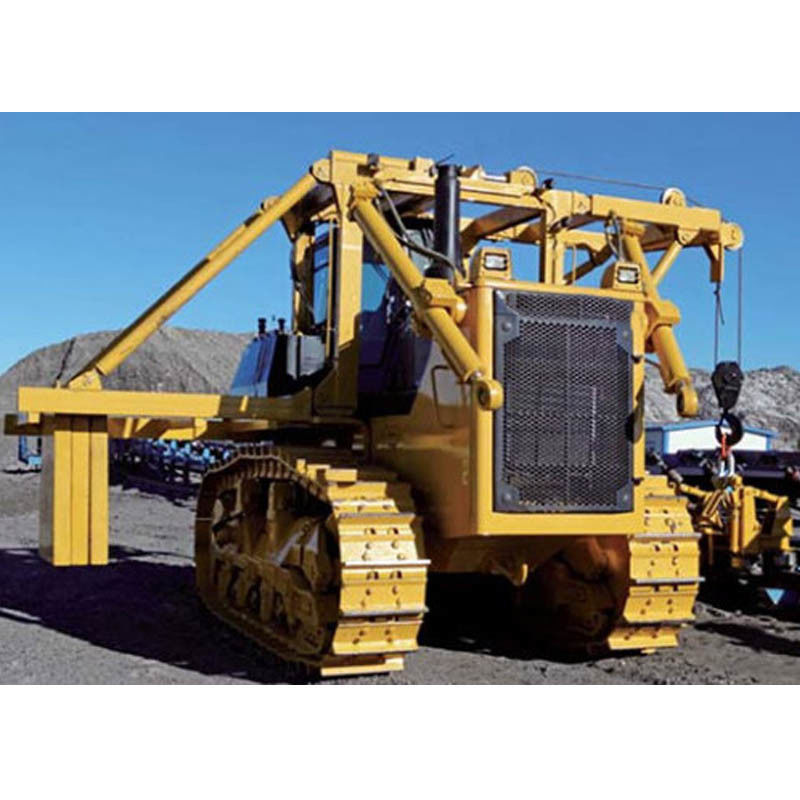

Open Pit Mines Crawler Conveyor Pipe Handling Equipment ISO9001

Open Pit Mines Crawler Conveyor Pipe Handling Equipment ISO9001

Open Pit Mines Crawler Conveyor

Crawler Conveyor Pipe Handling Equipment

Pipe Handling Equipment ISO9001

Place of Origin:

Hebei,China

Brand Name:

Suhigo

Certification:

ISO-9001

Contact Us

Request A Quote
Product Details
Name:
Pipe Handling Equipment
Country Of Origin:
Hebei, China
Material Science:
High Strength Manganese Steel
Power Supply:
AC+DC
Movement Direction:
Left, Right, Forward, Backward
Advantages:
Save Manpower, Time, And Costs
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Interview
Packaging Details
Customized
Delivery Time
7-15 work days
Payment Terms
T/T
Product Description

The Crawler Conveyor Used In The Construction Of Open-Pit Mines Is A Movable Conveyor Belt



Introduction
The relocation system adopts hydrostatic transmission, mainly composed of brackets, lifting cylinders, hook pulley blocks, relocation heads, connecting frames, and other parts. This device can adapt to working environments with temperatures ranging from -40 ℃ to+60 ℃, altitudes below 3600 meters, air containing less than 5% sand and dust, as well as various weather conditions such as rain, snow, and fog;



Equipment modelPYS70-2
Engine modelCummins NTA855-C360
Engine rated power/speed 235/2000 kW/rpm
Maximum moving weight16000 kg
Maximum lifting height300 mm
Maximum moving distance1000 mm
Suitable for steel rail specifications 50~75(GB 2585) kg/m
Quantity of counterweights × Weight3×1550 kg

Walking speed

Forward 1st gear3.6
Forward 2st gear6.6
Forward 3st gear11.5
Reverse 1st gear4.4
Reverse 2st gear7.8
Reverse 3st gear13.5
Moving head clamping indicationOptional
Mobile head surveillance cameraOptional
Switchable bulldozer320 horsepower bulldozer



Feature

1) The equipment is equipped with a hydraulic clamping type transfer head, which can adjust the clamping force and clamping angle, and can adapt to the steel rail specification of 50-75kg/m. The maximum lifting weight of the transfer head is 16t, the maximum lifting height is 300mm, and the maximum transfer step distance reaches 1000mm. It can adapt to the transfer of conveyor belts with a width of less than 2500mm.
2) The equipment is reserved with a working device interface for bulldozers, which can be switched to use at any time. Provide spare parts such as transfer rollers and bearings for easy replacement and use.

Open Pit Mines Crawler Conveyor Pipe Handling Equipment ISO9001 0



About Suhigo

  • As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  • Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



HGPC30 Crawler pipe carrier for Pipeline construction Yellow pipe carring equipment Pipe Dia 1219mm transporter trailer 2HGPC30 Crawler pipe carrier for Pipeline construction Yellow pipe carring equipment Pipe Dia 1219mm transporter trailer 3







Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
