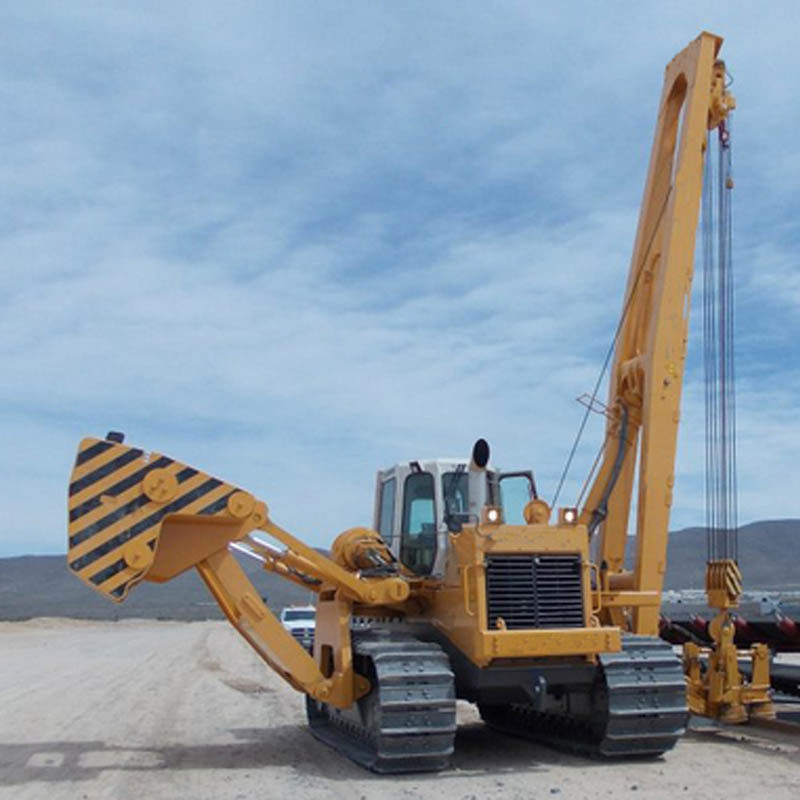

Hydraulic Moving Head Large Crawler Lifting And Moving Machine
Introduction
The entire machine is designed reasonably and has a compact structure, which is easy to dispatch, transfer, and transport. It can meet the needs of Chinese railway transportation and self crawling flat trailer transportation, and is suitable for conveyor belt relocation operations and general lifting operations.
| Equipment model | PYS70-2 | |
| Engine model | Cummins NTA855-C360 | |
| Operating weight | 41000 kg | |
| Overall dimensions (length, width, height) | 5780×6850×3950 mm | |
| Maximum lifting height | 300 mm | |
| Maximum moving distance | 1000 mm | |
|
Walking speed |
Forward 1st gear | 3.6 |
| Forward 2st gear | 6.6 | |
| Forward 3st gear | 11.5 | |
| Reverse 1st gear | 4.4 | |
| Reverse 2st gear | 7.8 | |
| Reverse 3st gear | 13.5 | |
| Operation mode | Handle operation | |
| Moving head clamping indication | Optional | |
| Mobile head surveillance camera | Optional | |
| Switchable bulldozer | 320 horsepower bulldozer | |
Feature
